CLUTCH BOOSTER
04318BOOSTER KIT, CLUTCH
31440BOOSTER ASSY, CLUTCH W/AIR CLEANER
31440ESEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER)
31440GRING, E(FOR CLUTCH BOOSTER AIR VALVE)
31440MROD SUB-ASSY, CLUTCH BOOSTER PISTON
31440QGASKET, BRAKE BOOSTER BRACKET
W(CLUTCH BOOSTER)
31440RRING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE)
31440SKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)
31440TPISTON, BOOSTER(FOR CLUTCH BOOSTER)
31440UROD, VALVE OPERATING(FOR CLUTCH BOOSTER)
31449COVER, CLUTCH BOOSTER PISTON
31458BOOT, CLUTCH BOOSTER PISTON COVER
9017908146
main90179-08146

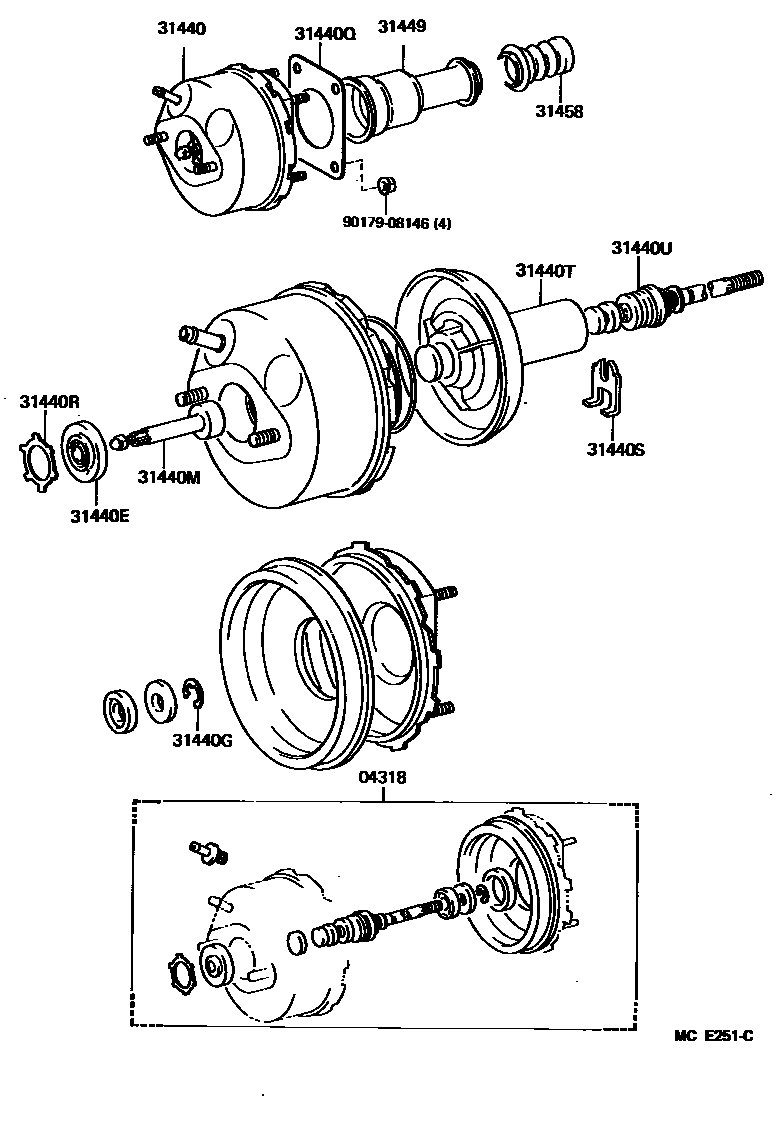

13 parts on this diagram · 2 diagrams in section
