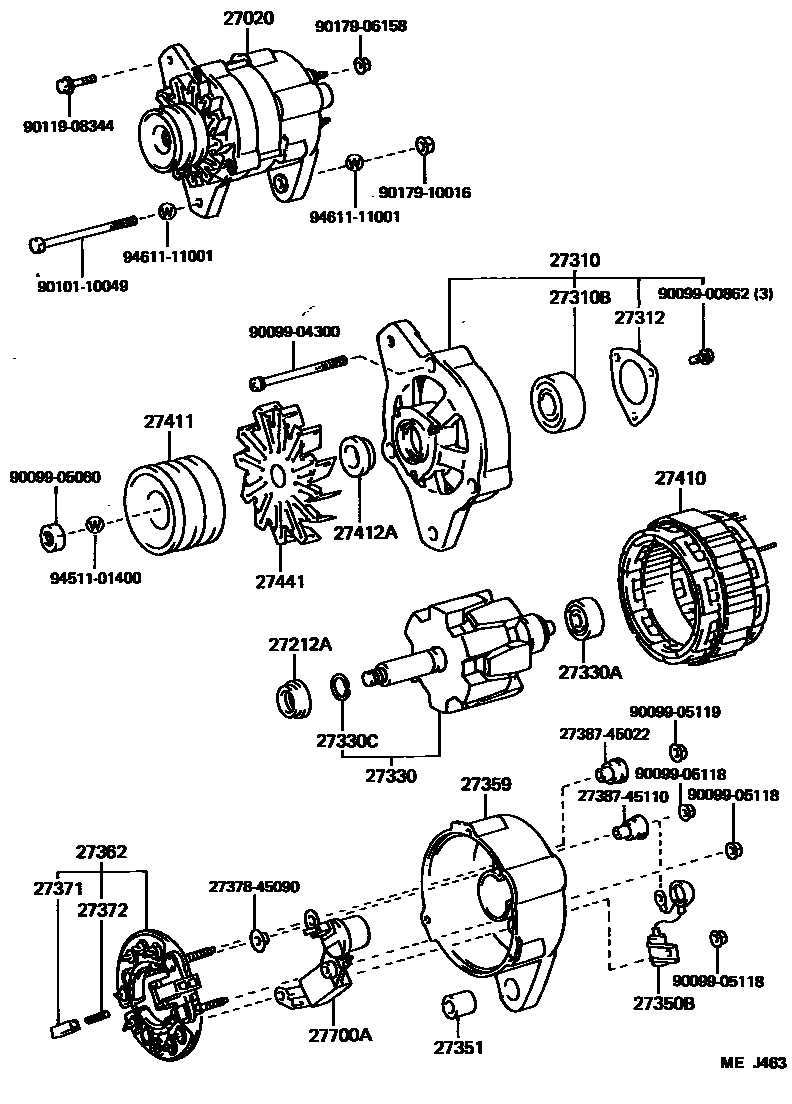

ALTERNATOR

0001 112V 80A 0002 124V 30A 0003 124V 40A

27020ALTERNATOR ASSY

main27020-68130i12HT,2H..HJ6#..MTM198708-199001

24V 30A

main27020-68150i12HT,2H..HJ6#..MTM198708-199001

24V 40A

main27020-68150i12HT,2H..HJ6#..MTM198708-199001

24V 40A,COLD SPEC

main27060-61090i3FE..FJ62198808-199001

12V 80A

27212ARING, SPACE

main27212-39050i3FE..FJ62198808-199001

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-56180i12HT,2H..HJ6#..MTM198708-199001

main27310-68140i12HT,2H..HJ6#..MTM198708-199001

COLD SPEC

main27310-72070i3FE..FJ62198808-199001

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10110i3FE..FJ62198808-199001

sub90099-10142

main90099-10120i12HT,2H..HJ6#..MTM198708-199001

COLD SPEC

main90099-10137i12HT,2H..HJ6#..MTM198708-199001

27312PLATE, RETAINER

main27312-45010i3FE..FJ62198808-199001

main27312-56070i12HT,2H..HJ6#..MTM198708-199001

COLD SPEC

main27312-57060i12HT,2H..HJ6#..MTM198708-199001

27330ROTOR ASSY, ALTERNATOR

main27330-56110i12HT,2H..HJ6#..MTM198708-199001

main27330-68150i2H..HJ60..ATM198708-198711

COLD SPEC

sub27330-68152

main27330-68151i12HT,2H..HJ6#..MTM198711-198802

COLD SPEC

sub27330-68152

main27330-68152i12HT,2H..HJ6#..MTM198802-199001

COLD SPEC

main27330-72070i3FE..FJ62198808-199001

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i3FE..FJ62198808-199001

27330CRING, SNAP

main90099-07048i3FE..FJ62198808-199001

main90099-07103i12HT,2H..HJ6#..MTM198708-199001

main90099-07108i2H..HJ60..ATM198708-199001

COLD SPEC

27350FRAME ASSY, RECTIFIER END

main27350-68040i12HT,2H..HJ6#..MTM198708-199001

main27350-68140i2H..HJ60..ATM198708-199001

COLD SPEC

27350BCONDENSER, ALTERNATOR

main90099-52065i3FE..FJ62198808-199001

sub90099-52034

main90099-52066i12HT,2H..HJ6#..MTM198708-198804

sub90099-52035

main90099-52082i12HT,2H..HJ6#..MTM198708-199001

COLD SPEC

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i3FE..FJ62198808-199001

main27351-56013i12HT,2H..HJ6#198708-199001

27359FRAME, ALTERNATOR RECTIFIER END

main27359-61190i3FE..FJ62198808-199001

27362RECTIFIER ASSY, W/BRUSH

main27362-72070i3FE..FJ62198808-199001

27371BRUSH, ALTERNATOR

main27371-31011i3FE..FJ62198808-199001

main27371-56070i12HT,2H..HJ6#198708-199001

sub27371-54412

27372SPRING, ALTERNATOR BRUSH

main27372-31011i3FE..FJ62198808-199001

main27372-56070i12HT,2H..HJ6#198708-199001

27410STATOR ASSY, ALTERNATOR

main27410-56310i12HT,2H..HJ6#..MTM198708-199001

main27410-68150i2H..HJ60..ATM198708-199001

COLD SPEC

sub27410-56430

main27410-72070i3FE..FJ62198808-199001

27411PULLEY, ALTERNATOR

main27411-61210i3FE..FJ62198808-199001

main27411-68041i12HT,2H..HJ6#..MTM198708-199001

main27411-68140i2H..HJ60..ATM198708-199001

COLD SPEC

27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)

main27412-45012i3FE..FJ62198808-199001

main27412-54040i12HT,2H..HJ6#..MTM198708-199001

COLD SPEC

main27412-57060i12HT,2H..HJ6#..MTM198708-199001

27441FAN, ALTERNATOR

main27441-45050i3FE..FJ62198808-199001

main27441-54070i12HT,2H..HJ6#..MTM198708-199001

COLD SPEC

main27441-56090i12HT,2H..HJ6#..MTM198708-199001

27700AREGULATOR ASSY, GENERATOR

main27700-57051i2H..HJ60..ATM198708-199001

COLD SPEC

main27700-57090i12HT,2H..HJ6#..MTM198708-199001

main27700-63030i3FE..FJ62198808-199001

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900862

main90099-00862

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908344

main90119-08344

9017906158

main90179-06158

9017910016

main90179-10016

9451101400

main94511-01400

9461111001

main94611-11001

34 parts on this diagram · 3 diagrams in section
