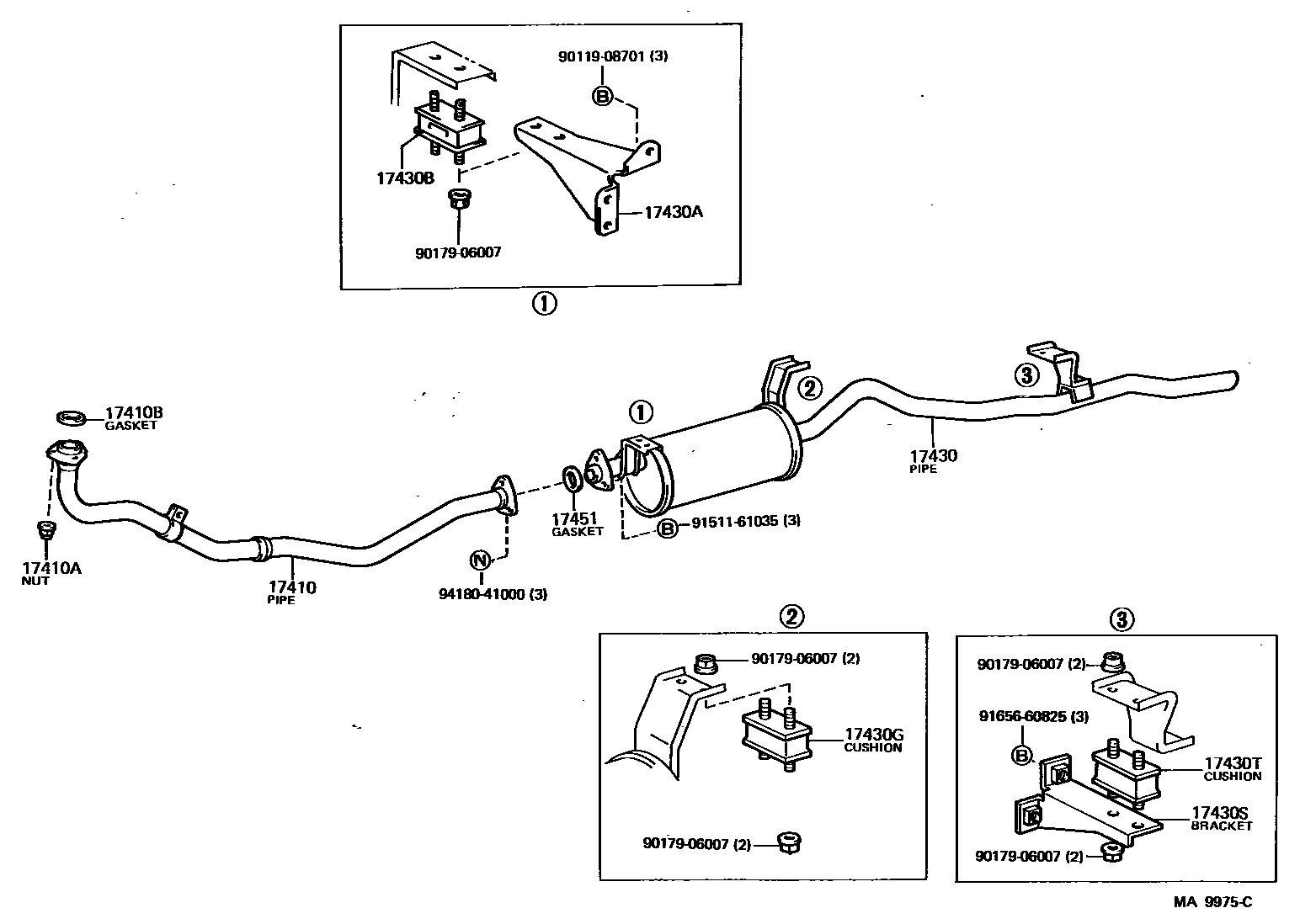

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-61230i3FE..FJ62198808-199001

NO.1

main17401-68010i2H..HJ60198708-199001

main17401-68040i12HT..HJ61198708-199001

main17402-61020i3FE..FJ62198808-199001

NO.2

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i3FE..FJ62198708-199001

17410BGASKET, EXHAUST PIPE

main90917-06004i3FE..FJ62198808-199001

sub90917-06039

main90917-06005i2H..HJ60198708-199001

sub90917-06042

main90917-06034i12HT..HJ61198708-199001

sub90917-06059

17430PIPE ASSY, EXHAUST, TAIL

main17430-61260i3FE..FJ62198808-199001

main17430-68051i2H..HJ60198708-199001

main17430-68061i12HT..HJ61198708-199001

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17574-61071i12HT,3FE,2H..FJ62,HJ6#198708-199001

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17567-61030i12HT,3FE,2H..FJ62,HJ6#198708-199001

17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)

main17567-61030i12HT,3FE,2H..FJ62,HJ6#198708-199001

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17574-61050i3FE..FJ62198808-199001

main17574-61060i12HT,2H..HJ6#198708-199001

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17567-61030i12HT,3FE,2H..FJ62,HJ6#198708-199001

17451GASKET, EXHAUST PIPE

main90917-06012i3FE..FJ62198808-199001

NO.1

sub90917-06045

main90917-06023i3FE..FJ62198808-199001

NO.2

sub90917-06041

main90917-06024i12HT,3FE,2H..FJ62,HJ6#198708-199001

NO.3

sub90917-06073

9011908701

main90119-08701

9017906007

main90179-06007

9151161035

main91511-61035

9165660825

main91656-60825

9418041000

main94180-41000

15 parts on this diagram · 3 diagrams in section
