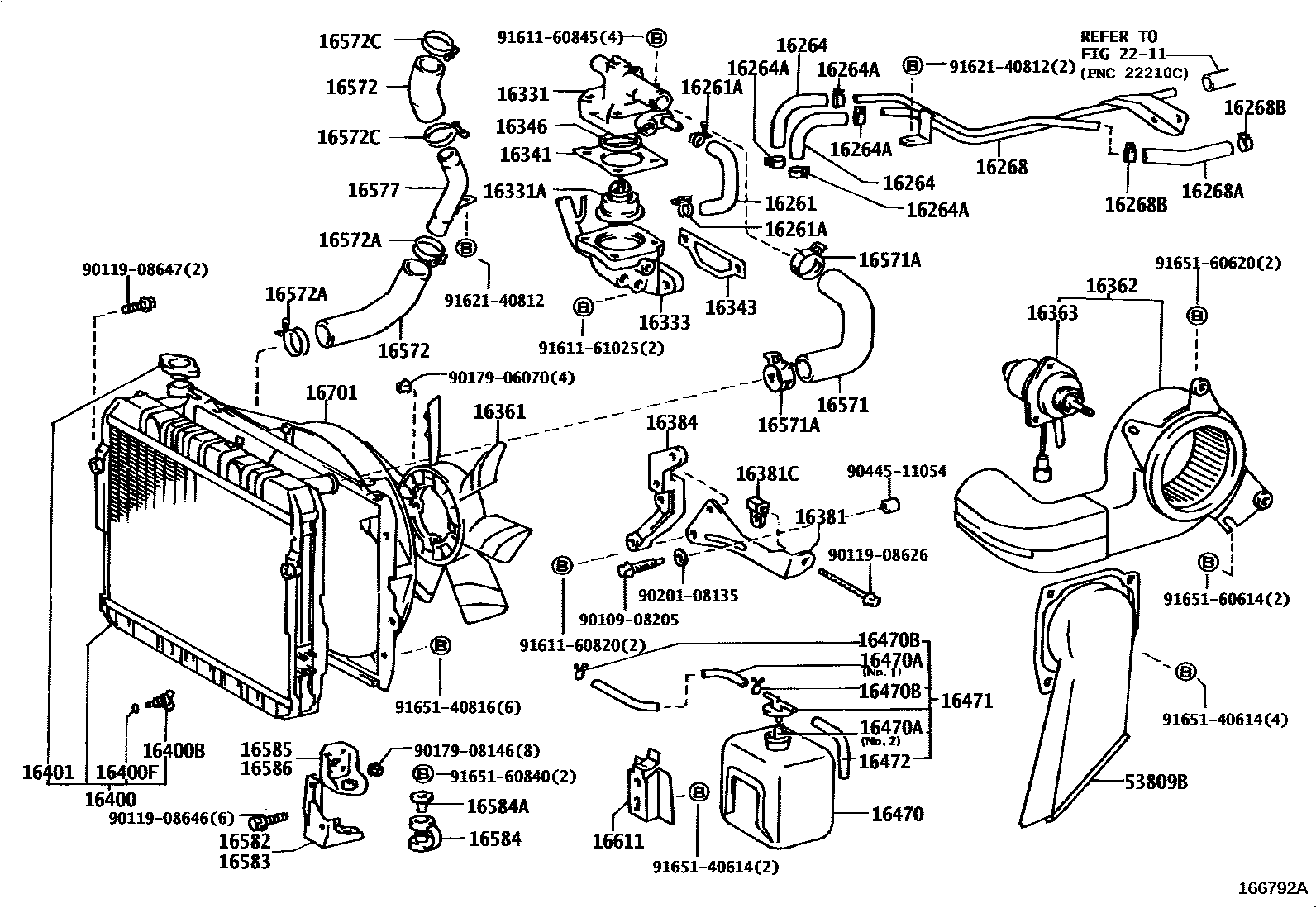

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16268PIPE, WATER BY-PASS, NO.1
16268AHOSE(FOR WATER BY-PASS PIPE)
16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
sub96135-51300
16331ATHERMOSTAT
*WAX 88-100
16333HOUSING, WATER OUTLET
16346GASKET, THERMOSTAT
16362FAN, NO.2
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
COLD SPEC
16381CBAR, FAN BELT ADJUSTING, NO.2
16384BRACKET, FAN BELT ADJUSTING BAR
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
sub16401-54750
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600(*H,L=360)
L=600(*H,L=580)
L=600
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16472HOSE, BREATHER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-41002
16572HOSE, RADIATOR, OUTLET
WATER PUMP SIDE
RADIATOR SIDE
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
ID=51
ID=56
16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
16577PIPE, RADIATOR, NO.7
16582BRACKET, RADIATOR, NO.1
16583BRACKET, RADIATOR, NO.2
16584INSULATOR, RADIATOR MOUNTING
16584ASPACER, RADIATOR MOUNTING INSULATOR
16585BRACKET, RADIATOR, NO.3
16586BRACKET, RADIATOR, NO.4
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
2211
53809BDUCT SUB-ASSY, COOLING FAN AIR
9010908205
main90109-08205
9011908626
main90119-08626
9011908646
main90119-08646
9011908647
main90119-08647
9017906070
main90179-06070
9017908146
main90179-08146
9020108135
main90201-08135
9044511054
main90445-11054
9161160820
main91611-60820
9161160845
main91611-60845
9161161025
main91611-61025
9162140812
main91621-40812
9165140614
main91651-40614
9165140816
main91651-40816
9165160614
main91651-60614
9165160620
main91651-60620
9165160840
main91651-60840
