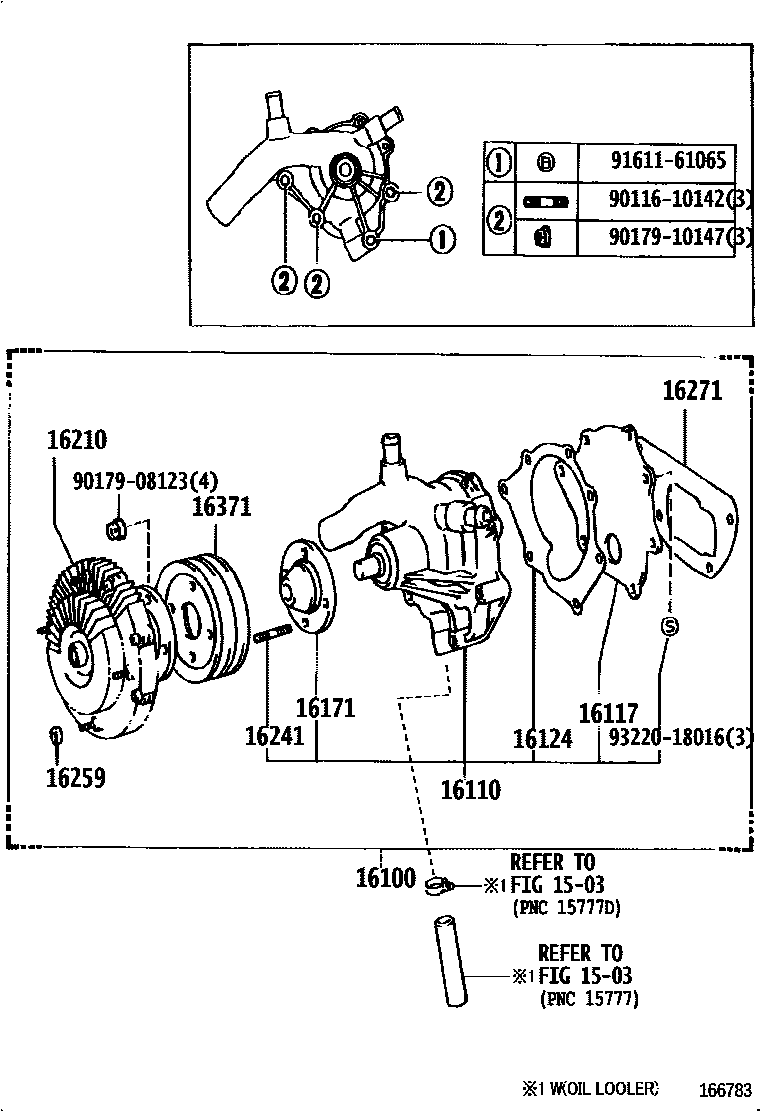

WATER PUMP

0001 1 0002 1

1503

16100PUMP ASSY, ENGINE WATER

main16100-69035i12HT,2H..HJ6#198708-199001

sub16100-69036

main16100-69195i3FE..FJ62198808-199001

sub16100-69196

16110PUMP ASSY, WATER, W/O COUPLING

main16110-61180i3FE..FJ62198808-199001

16117PLATE, WATER PUMP

main16117-61110i3FE..FJ62198808-199001

16124GASKET, WATER PUMP COVER

main16124-61110i3FE..FJ62198808-199001

sub16124-61250

main16129-68010i12HT,2H..HJ6#198708-199001

sub16129-68011

16171SEAT, WATER PUMP PULLEY

main16171-41170i12HT,2H..HJ6#198708-199001

main16171-61071i3FE..FJ62198808-199001

16210COUPLING ASSY, FLUID

main16210-61140i3FE..FJ62198808-199001

main16210-68021i12HT,2H..HJ6#198708-199001

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16198-41050i3FE..FJ62198808-199001

main90116-08112i12HT,2H..HJ6#198708-199001

16259GASKET, FAN

main16259-52010i3FE..FJ62198808-199001

16271GASKET, WATER PUMP

main16271-61010i3FE..FJ62198808-199001

sub16271-61020

main16271-68010i12HT,2H..HJ6#198708-199001

sub16271-68020

main16271-68020i2H..HJ60198908-199001

16371PULLEY, FAN

main16173-61070i3FE..FJ62198808-199001

main16371-68010i2H..HJ60..MTM198708-199001

main16371-68040i12HT..HJ61;2H..HJ60..ATM198708-199001

COLD SPEC

main88452-60011i12HT,2H..HJ6#..LHD..MTM..LUB..GX198708-199001

W(AIR CONDITIONER)

9011610142

main90116-10142

9017908123

main90179-08123

9017910147

main90179-10147

9161161065

main91611-61065

9322018016

main93220-18016

16 parts on this diagram · 2 diagrams in section
