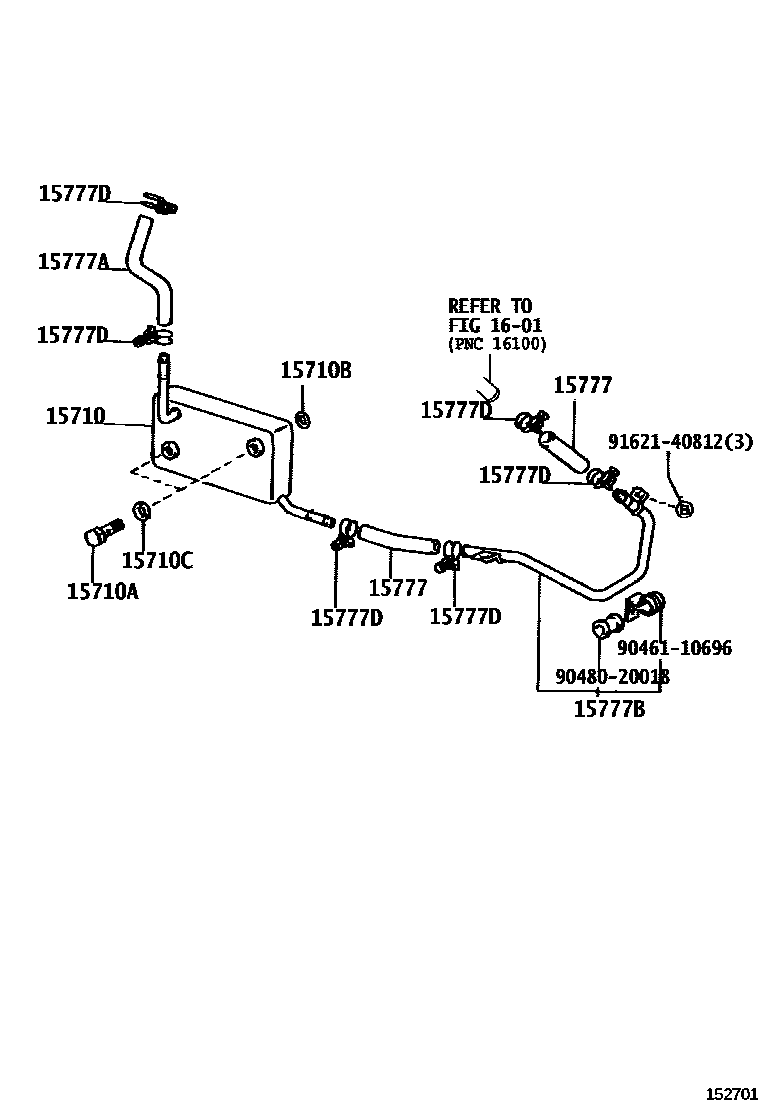

ENGINE OIL COOLER

0001 1 0002 1

15710COOLER ASSY, OIL

main15710-61010i3FE..FJ62198808-199001

main15710-68010i2H..HJ60198708-199001

main15710-68020i12HT..HJ61198708-199001

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18083i3FE..FJ62198808-199001

15710BRING, O(FOR OIL COOLER)

main90301-21176i12HT,2H..HJ6#198708-199001

15710CGASKET(FOR OIL COOLER)

main90430-18012i3FE..FJ62198808-199001

15777HOSE, OIL COOLER

main99556-30210i3FE..FJ62198808-199001

*H,L=210,PIPE TO OIL COOLER,PIPE TO WATER PUMP

sub99556-30300

15777AHOSE, OIL COOLER

main15777-61030i3FE..FJ62198808-199001

15777BPIPE, OIL COOLER

main15770-61010i3FE..FJ62198808-199001

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96112-10250i3FE..FJ62198808-199001

1601

9046110696

main90461-10696

9048020018

main90480-20018

9162140812

main91621-40812

12 parts on this diagram · 2 diagrams in section
