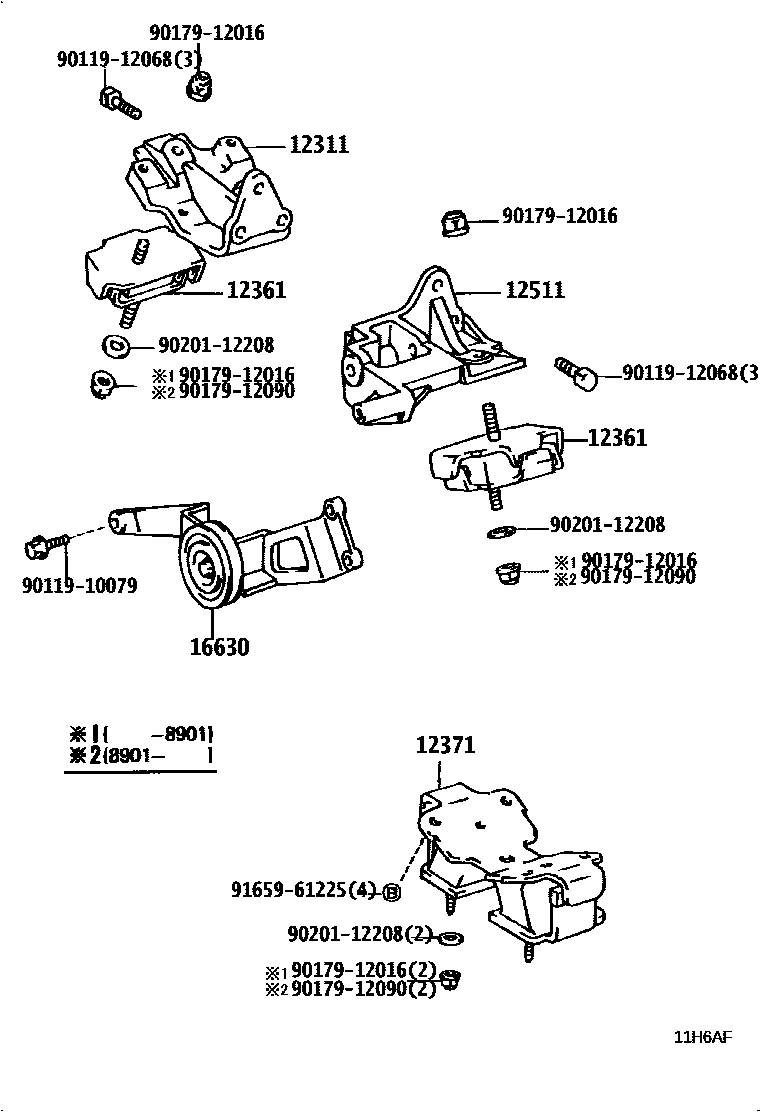

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-68010i12HT,2H..HJ6#198708-199001

main12311-61071i3FE..FJ62198808-199001

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-61030i3FE..FJ62198808-198809

sub12361-61031

main12361-61031i3FE..FJ62198809-199001

main12361-68051i12HT,2H..HJ6#198708-199001

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-61030i3FE..FJ62198808-198809

sub12371-61031

main12371-61031i3FE..FJ62198809-199001

main12371-68040i12HT,2H..HJ6#..MTM198708-198809

sub12371-68041

main12371-68041i12HT,2H..HJ6#..MTM198809-199001

main12371-68050i2H..HJ60..ATM198708-198809

sub12371-68051

main12371-68051i2H..HJ60..ATM198809-199001

12511BRACKET, ALTERNATOR, NO.1

main12511-61060i3FE..FJ62198808-198909

sub12511-61061

main12511-61061i3FE..FJ62198909-199001

main12511-68011i12HT,2H..HJ6#..MTM198708-199001

main12511-68030i2H..HJ60..ATM198708-199001

COLD SPEC

16630PULLEY ASSY, IDLER

main16630-61020i3FE..FJ62198808-199001

9011910079

main90119-10079

9011912068

main90119-12068

9017912016

main90179-12016

9017912090

main90179-12090

9020112208

main90201-12208

9165961225

main91659-61225

11 parts on this diagram · 2 diagrams in section
