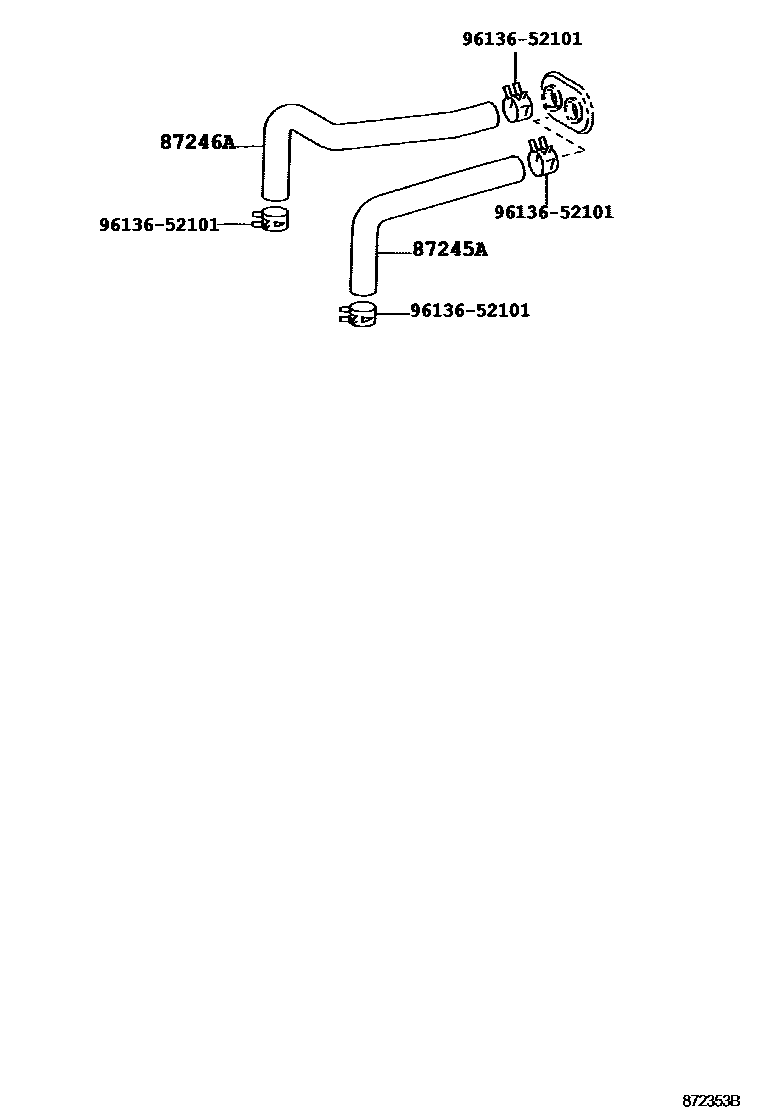

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT,W(REAR HEATER) 0003 1REAR

87245AHOSE, HEATER WATER, INLET A

main87245-6A070iUZJ100199801-200208

main87245-6A220iUZJ100200208-200505

main87245-6A220iUZJ100199801-200208

W(REAR HEATER)

87246AHOSE, HEATER WATER, OUTLET A

main87245-6A060iUZJ100199801-200208

main87245-6A180iUZJ100199801-200208

W(REAR HEATER)

main87245-6A180iUZJ100200208-200412

main87245-6A181iUZJ100200501-200505

9613652101

main96136-52101

3 parts on this diagram · 3 diagrams in section
