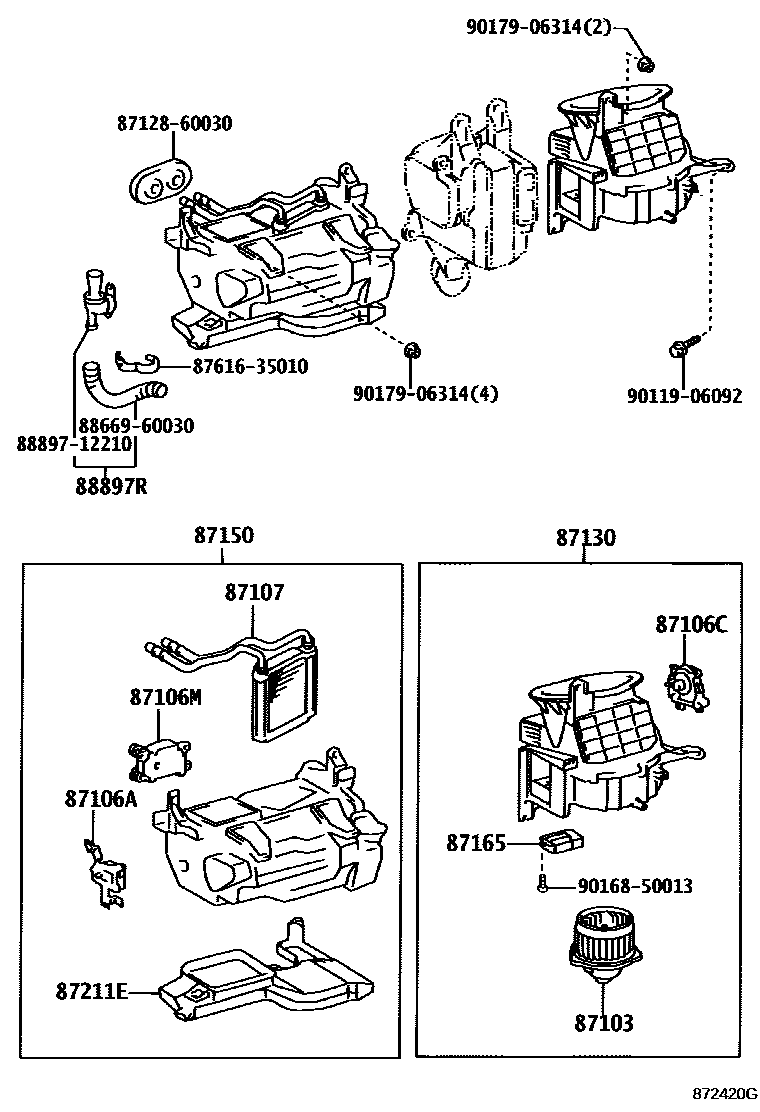

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT 0002 1REAR

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-50050iUZJ100199801-199907

main87103-60250iUZJ100199907-200208

87106ASERVO SUB-ASSY, DAMPER

main87106-60110iUZJ100199801-200208

main87106-60111iUZJ100200208-200505

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-60130iUZJ100199801-200208

main87106-60200iUZJ100200505

87106MSERVO SUB-ASSY, DAMPER, NO.2

main87106-60120iUZJ100199801-200208

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-60350iUZJ100199801-200208

main87107-60351iUZJ100200208-200505

main87107-60360iUZJ100199801-200208

COLD AREA SPEC

main87107-60361iUZJ100200208-200505

COLD AREA SPEC

87130BLOWER ASSY, HEATER, FRONT

main87130-60370iUZJ100199801-199806

main87130-60371iUZJ100199806-199907

main87130-60372iUZJ100199907-200208

main87130-60373iUZJ100200208-200505

87150RADIATOR ASSY, HEATER

main87150-60661iUZJ100199801-200008

main87150-60662iUZJ100200008-200208

main87150-60663iUZJ100200208-200307

main87150-60664iUZJ100200307-200505

main87150-60671iUZJ100199801-200008

COLD AREA SPEC

main87150-60672iUZJ100200008-200208

COLD AREA SPEC

main87150-60673iUZJ100200208-200307

COLD AREA SPEC

main87150-60674iUZJ100200307-200505

COLD AREA SPEC

87165CONTROL, BLOWER MOTOR, NO.1

main87165-22050iUZJ100199801-200208

87211EDUCT, AIR

main87211-60310iUZJ100199801-200208

88897RASPIRATOR

main88897-60040iUZJ100199801-200208

main88897-60130iUZJ100200402-200505

8712860030GROMMET, HEATER

main87128-60030

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

8866960030HOSE, COOLER AIR

main88669-60030

8889712210VALVE, COOLER MAGNET

main88897-12210

9011906092

main90119-06092

9016850013

main90168-50013

9017906314

main90179-06314

17 parts on this diagram · 2 diagrams in section
