MIRROR

87805BASE SUB-ASSY, INNER REAR VIEW MIRROR

main87805-60010i199801-200505

87810MIRROR ASSY, INNER REAR VIEW

main87810-60140-A0i199801-200008

IVORY,TRIM40,41

sub87810-60140

main87810-60140-B0i199801-200008

MD.GRAY,TRIM1#

sub87810-60140

main87810-60150-A0i200008-200208

W(BRONZE UV CUT SIDE GLASS),IVORY,TRIM40,41

sub87810-60150

sub87810-60210

main87810-60150-A1i200208-200505

W(BRONZE UV CUT SIDE GLASS),IVORY,TRIM0#

sub87810-60150

sub87810-60210

main87810-60150-B0i200008-200208

W(BRONZE UV CUT SIDE GLASS),MD.GRAY,TRIM1#

sub87810-60150

sub87810-60210

main87810-60150-B1i200208-200505

W(BRONZE UV CUT SIDE GLASS),STONE,TRIM1#

sub87810-60150

sub87810-60210

main87810-60160-A0i200008-200208

IVORY,TRIM40,41

sub87810-60160

sub87810-60221

main87810-60160-B0i200008-200208

MD.GRAY,TRIM1#

sub87810-60160

sub87810-60221

main87810-60170-A0i200008-200208

W(AUTO DAY & NIGHT MIRROR & COMPASS & BRONZE UV UT SIDE GLASS),IVORY,TRIM4#

sub87810-60170

main87810-60170-A1i200208-200505

W(AUTO DAY & NIGHT MIRROR & COMPASS & BRONZE UV UT SIDE GLASS),IVORY,TRIM0#

sub87810-60170

main87810-60170-A1i200505-200708

W(COMPASS),IVORY,TRIM0#

sub87810-60170

main87810-60170-B0i200008-200208

W(AUTO DAY & NIGHT MIRROR & COMPASS & BRONZE UV UT SIDE GLASS),MD.GRAY,TRIM1#

sub87810-60170

main87810-60170-B1i200505-200708

W(COMPASS),STONE,TRIM1#

sub87810-60170

main87810-60170-B1i200208-200505

W(AUTO DAY & NIGHT MIRROR & COMPASS & BRONZE UV UT SIDE GLASS),STONE,TRIM1#

sub87810-60170

main87810-60180-A0i200008-200208

W(AUTO DAY & NIGHT MIRROR & COMPASS),IVORY,TRIM4#

sub87810-60180

sub87810-60181

main87810-60180-B0i200008-200208

W(AUTO DAY & NIGHT MIRROR & COMPASS),MD.GRAY,TRIM1#

sub87810-60180

sub87810-60181

main87810-60210-A0i200505-200708

IVORY,TRIM0#

sub87810-60210

main87810-60210-B0i200505-200708

STONE,TRIM1#

sub87810-60210

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-60010i199801-200211

87853BASE, INNER REAR VIEW MIRROR

main87853-60010i200208-200505

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-60800-A0i199801-200008

WHITE,056

sub87910-60801

main87910-60800-B0i199801-200008

WARM SILVER ME.,1B1

sub87910-60801

main87910-60800-B1i199801-200008

GRAY M.M.,1C3

sub87910-60801

main87910-60800-C0i199801-200008

BLACK,202

sub87910-60801

main87910-60800-D0i199801-200008

RED MC.,3N2

sub87910-60801

main87910-60800-E1i199801-200008

BROWN ME.,4P3

sub87910-60801

main87910-60800-G0i199801-200008

DK. GREEN MC.,6Q7

sub87910-60801

main87910-60800-J0i199801-200008

DK.BLUE MC.,8L4

sub87910-60801

main87910-60801-A0i200008-200505

WHITE,056

sub87910-60801

main87910-60801-A0i200505-200708

MEXICO SPEC,WHITE,056

sub87910-60801

main87910-60801-B0i200008-200208

WARM SILVER ME.,1B1

sub87910-60801

main87910-60801-B1i200008-200208

GRAY M.M.,1C3

sub87910-60801

main87910-60801-B2i200008-200505

GRAY ME.,1D2

sub87910-60801

main87910-60801-B2i200505-200708

MEXICO SPEC,GRAY ME.,1D2

sub87910-60801

main87910-60801-B3i200505-200708

MEXICO SPEC,DK.GRAY M.M.,1E9

sub87910-60801

main87910-60801-B3i200208-200505

DK.GRAY M.M.,1E9

sub87910-60801

main87910-60801-B4i200505-200708

MEXICO SPEC,SILVER ME.,1F7

sub87910-60801

main87910-60801-C0i200008-200505

BLACK,202

sub87910-60801

main87910-60801-C0i200505-200708

MEXICO SPEC,BLACK,202

sub87910-60801

main87910-60801-D0i200008-200208

RED MC.,3N2

sub87910-60801

main87910-60801-D1i200505-200708

MEXICO SPEC,DK.RED MC.,3Q2

sub87910-60801

main87910-60801-D1i200208-200505

DK.RED MC.,3Q2

sub87910-60801

main87910-60801-E2i200505-200708

MEXICO SPEC,GOLD M.M.,4R3

sub87910-60801

main87910-60801-E2i200208-200505

GOLD M.M.,4R3

sub87910-60801

main87910-60801-G0i200008-200505

DK.GREEN MC.,6Q7

sub87910-60801

main87910-60801-J0i200008-200505

DK.BLUE MC.,8L4

sub87910-60801

main87910-60801-J1i200505-200708

MEXICO SPEC,GRAYISH BLUE ME.,8R3

sub87910-60801

main87910-60A40-A0i200505-200708

WHITE,056

sub87910-60A40

main87910-60A40-B0i200505-200708

GRAY ME.,1D2

sub87910-60A40

main87910-60A40-B1i200505-200708

DK.GRAY M.M.,1E9

sub87910-60A40

main87910-60A40-B2i200505-200708

SILVER ME.,1F7

sub87910-60A40

main87910-60A40-C0i200505-200708

BLACK,202

sub87910-60A40

main87910-60A40-D0i200505-200708

DK.RED MC.,3Q2

sub87910-60A40

main87910-60A40-E0i200505-200708

BEIGE M.M.,4R3

sub87910-60A40

main87910-60A40-J0i200505-200708

GRAYISH BLUE ME.,8R3

sub87910-60A40

87917BMIRROR, OUTER REAR VIEW, RH

main87931-60800i199801-200008

sub87931-60801

main87931-60801i200008-200505

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-60840-A0i200505-200708

MEXICO SPEC,WHITE,056

sub87940-60840

main87940-60840-A0i199801-200505

WHITE,056

sub87940-60840

main87940-60840-B0i199801-200208

WARM SILVER ME.,1B1

sub87940-60840

main87940-60840-B1i199801-200208

GRAY M.M.,1C3

sub87940-60840

main87940-60840-B2i200008-200505

GRAY ME.,1D2

sub87940-60840

main87940-60840-B2i200505-200708

MEXICO SPEC,GRAY ME.,1D2

sub87940-60840

main87940-60840-B3i200208-200505

DK.GRAY M.M.,1E9

sub87940-60840

main87940-60840-B3i200505-200708

MEXICO SPEC,DK.GRAY M.M.,1E9

sub87940-60840

main87940-60840-B4i200505-200708

MEXICO SPEC,SILVER ME.,1F7

sub87940-60840

main87940-60840-C0i199801-200505

BLACK,202

sub87940-60840

main87940-60840-C0i200505-200708

MEXICO SPEC,BLACK,202

sub87940-60840

main87940-60840-D0i199801-200208

RED MC.,3N2

sub87940-60840

main87940-60840-D1i200208-200505

DK.RED MC.,3Q2

sub87940-60840

main87940-60840-D1i200505-200708

MEXICO SPEC,DK.RED MC.,3Q2

sub87940-60840

main87940-60840-E1i199801-200008

BROWN ME.,4P3

sub87940-60840

main87940-60840-E2i200208-200505

GOLD M.M.,4R3

sub87940-60840

main87940-60840-E2i200505-200708

MEXICO SPEC,GOLD M.M.,4R3

sub87940-60840

main87940-60840-G0i199801-200505

DK. GREEN MC.,6Q7

sub87940-60840

main87940-60840-J0i199801-200505

DK.BLUE MC.,8L4

sub87940-60840

main87940-60840-J1i200505-200708

MEXICO SPEC,GRAYISH BLUE ME.,8R3

sub87940-60840

main87940-60A40-A0i200505-200708

WHITE,056

sub87940-60A40

main87940-60A40-B0i200505-200708

GRAY ME.,1D2

sub87940-60A40

main87940-60A40-B1i200505-200708

DK.GRAY M.M.,1E9

sub87940-60A40

main87940-60A40-B2i200505-200708

SILVER ME.,1F7

sub87940-60A40

main87940-60A40-C0i200505-200708

BLACK,202

sub87940-60A40

main87940-60A40-D0i200505-200708

DK.RED MC.,3Q2

sub87940-60A40

main87940-60A40-E0i200505-200708

BEIGE M.M.,4R3

sub87940-60A40

main87940-60A40-J0i200505-200708

GRAYISH BLUE ME.,8R3

sub87940-60A40

87947BMIRROR, OUTER REAR VIEW, LH

main87961-60840i199801-200505

8792960020RETAINER, OUTER REAR VIEW MIRROR, LH

main87929-60020

91511B0616

main91511-B0616

9326915012

main93269-15012

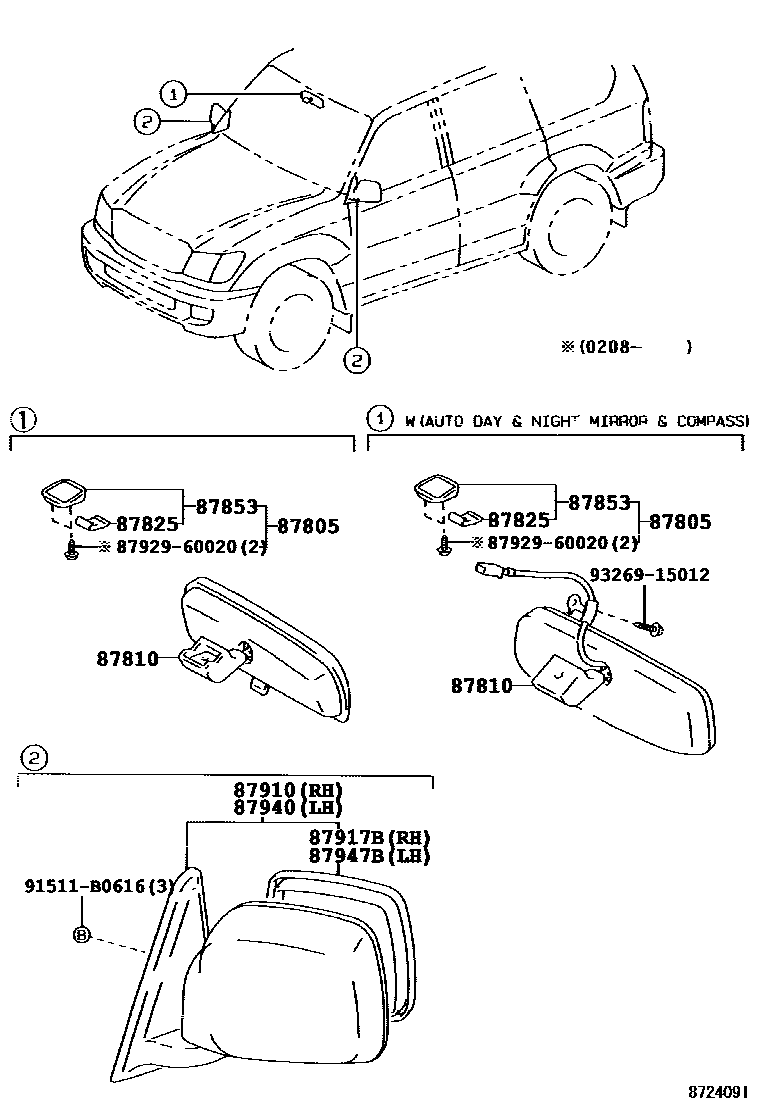

11 parts on this diagram · 2 diagrams in section
