SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W020iUZJ100200008-200208

main86150-60040iUZJ100199801-200008

86160SPEAKER ASSY, FRONT NO.1

main86160-0W340×2iUZJ100200505

main86160-22790×2iUZJ100199801-200008

86160BSPEAKER ASSY, REAR

main86160-0W350×2iUZJ100200208-200505

main86160-22790×2iUZJ100199801-200008

86160PSPEAKER ASSY, FRONT NO.2

main86160-0W360iUZJ100200208-200505

RH

main86160-0W370iUZJ100200008-200208

LH

main86160-60320iUZJ100199801-200008

RH

main86160-60330iUZJ100199801-200008

LH

9015950098

main90159-50098

9018905097

main90189-05097

9018905130

main90189-05130

9162140614

main91621-40614

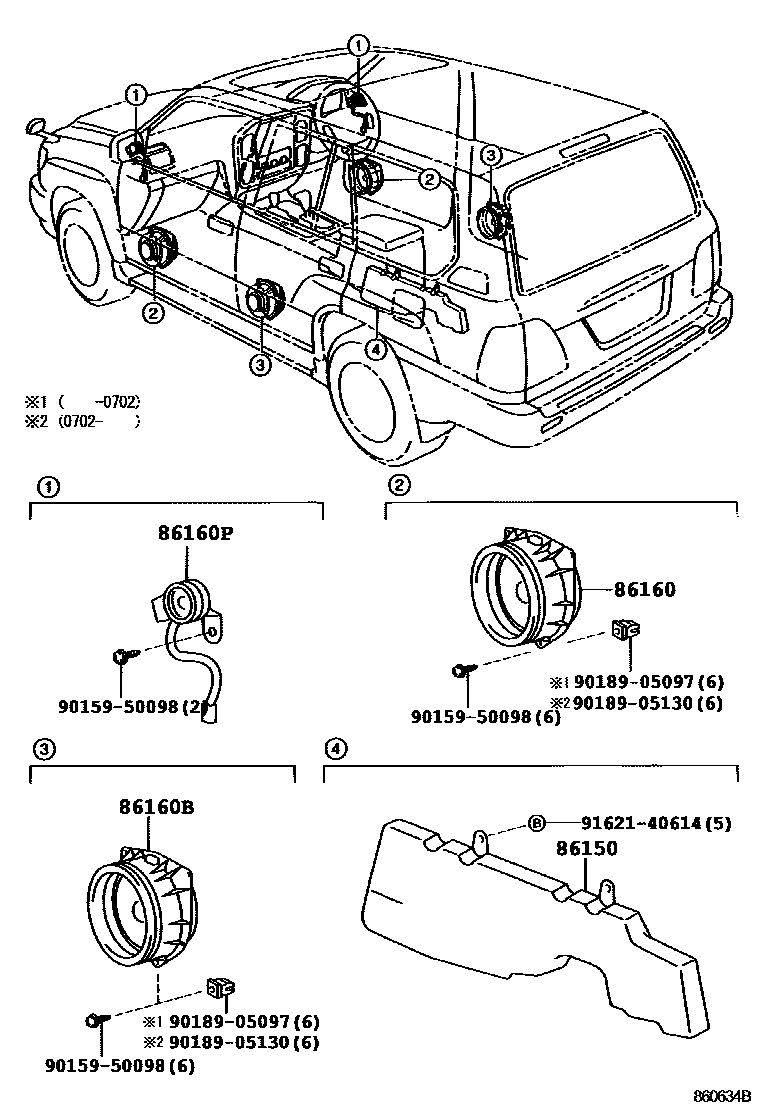

8 parts on this diagram · 1 diagram in section
