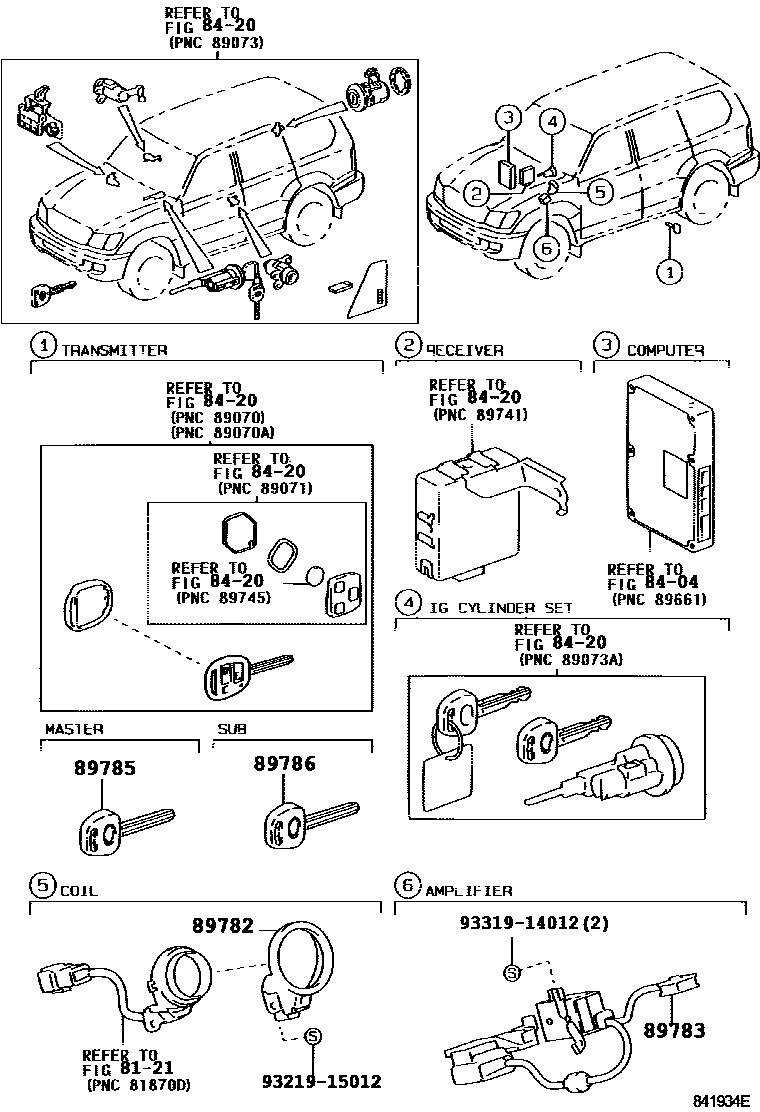

ANTI-THEFT DEVICE

0001 1 0002 1

8121

8404

8420

89782COIL, TRANSPONDER KEY

main89782-33020iUZJ100199801-200208

89783AMPLIFIER, TRANSPONDER KEY

main89783-35030iUZJ100200208-200505

sub89783-35031

main89783-60050iUZJ100199801-200208

main89783-60110iUZJ100200505

sub89783-60111

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iUZJ100200008-200208

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iUZJ100199801-200208

main89786-60170iUZJ100200208-200505

9321915012

main93219-15012

9331914012

main93319-14012

9 parts on this diagram · 2 diagrams in section
