AIR BAG

0001 1 0002 1

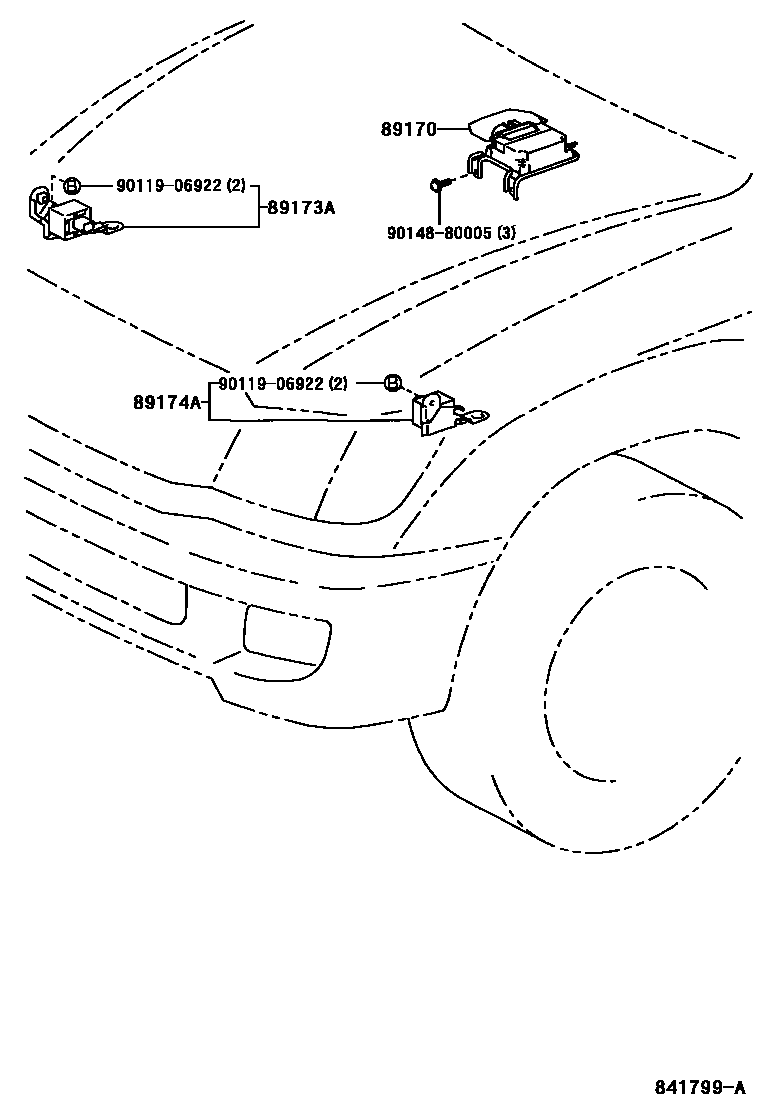

89170SENSOR ASSY, AIRBAG

main89170-60050iUZJ100¥64,700199801-199907

sub89170-60051¥113,000

main89170-60051iUZJ100¥113,000199907-200208

main89170-60150iUZJ100200208-200505

W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)

sub89170-60151

main89170-60160iUZJ100200208-200601

main89170-60260iUZJ100200505-200601

W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)

sub89170-60261

main89170-60270iUZJ100200601

main89170-60280iUZJ100200601-200605

W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)

sub89170-60281

main89170-60281iUZJ100200605

W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)

sub89170-60282

89173ASENSOR, AIRBAG, FRONT RH

main89173-69045iUZJ100¥13,300199801-200208

main89173-69105iUZJ100¥13,300200208-200505

89174ASENSOR, AIRBAG, FRONT LH

main89174-69035iUZJ100¥13,300199801-200208

main89174-69105iUZJ100¥13,300200208-200505

9011906922

main90119-06922¥110

9014880005

main90148-80005¥130

5 parts on this diagram · 2 diagrams in section
