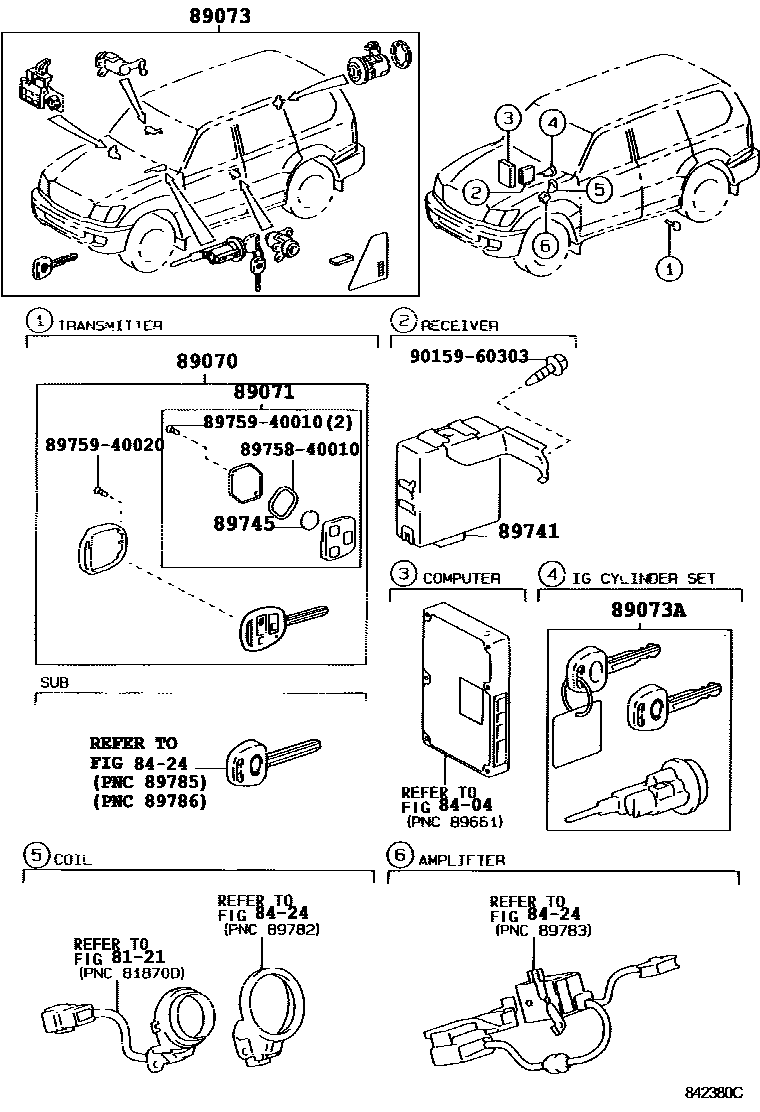

WIRELESS DOOR LOCK

0001 1 0002 1

8121

8404

8424

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-60090iUZJ100¥19,400199801-200208

main89070-60750iUZJ100¥22,900200208-200505

main89070-60B60iUZJ100200505-200603

sub89070-60B61¥22,900

main89070-60B61iUZJ100¥22,900200604

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-60010iUZJ100¥18,000199801-200208

main89071-60150iUZJ100¥17,900200208-200305

main89071-60200iUZJ100200305-200505

main89071-60230iUZJ100¥26,000200505

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-6C520iUZJ100¥24,700200208-200604

sub69005-6C521

main69005-6C521iUZJ100200605

sub69005-6C571

main89073-60080iUZJ100199801-200008

main89073-60081iUZJ100200008-200208

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main69057-60550iUZJ100¥13,400200208-200604

sub69057-60551

main69057-60551iUZJ100200605

main89073-60020iUZJ100199801-200008

main89073-60021iUZJ100200008-200208

89741RECEIVER, DOOR CONTROL

main89741-60060iUZJ100¥53,700199801-199907

main89741-60061iUZJ100¥53,700199907-200208

main89741-60370iUZJ100¥34,800200208-200505

89745BATTERY, TRANSMITTER

main89745-40010iUZJ100¥440199801-200505

main89745-48030iUZJ100¥440200505

sub89745-71010¥440

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010¥220

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010¥120

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020¥120

9015960303

main90159-60303¥70

13 parts on this diagram · 2 diagrams in section
