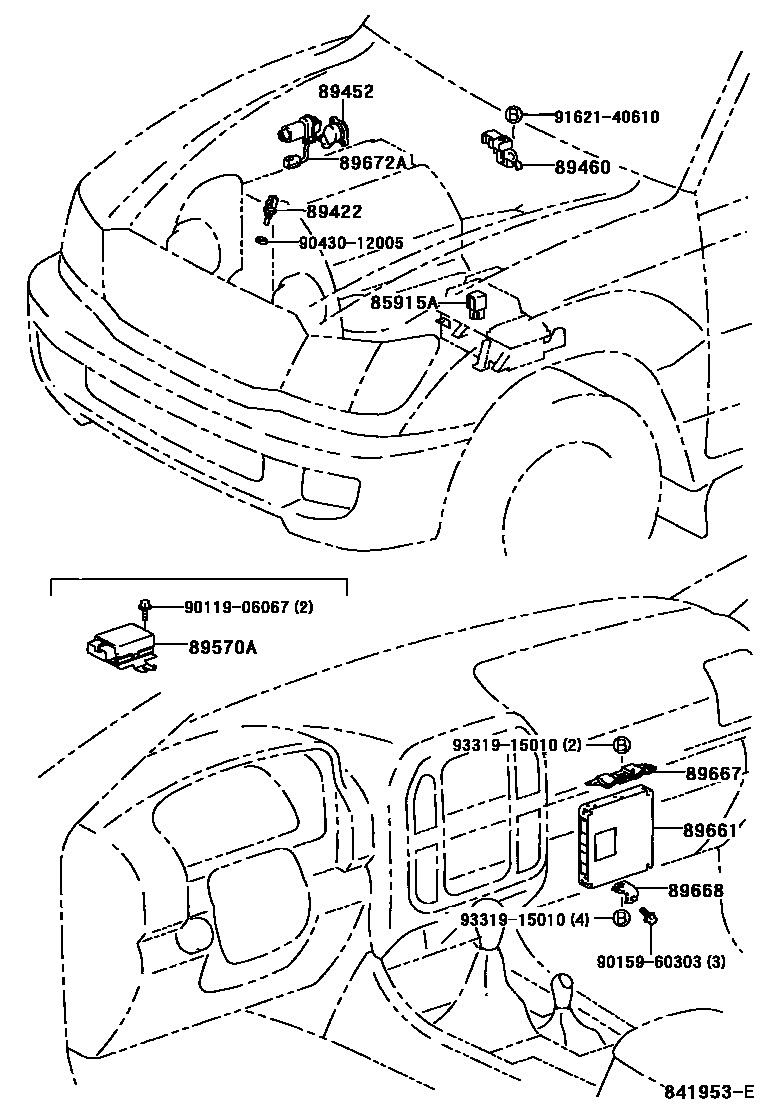

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85915ARELAY, MAIN

main85915-30050iUZJ100199801-200505

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iUZJ100199801-200004

main89422-30030iUZJ100200004-200505

main89422-33030iUZJ100200505-200708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30140iUZJ100199801-200208

89460SENSOR ASSY, VAPOR PRESSURE

main89460-60010iUZJ100199801-200208

main89461-35010iUZJ100200208-200505

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60140iUZJ100199801-200208

89661COMPUTER, ENGINE CONTROL

main89661-60610iUZJ100199801-199903

sub89661-60611

main89661-60A00iUZJ100200307-200402

sub89661-60A01

main89661-60A01iUZJ100200402-200407

sub89661-60A02

main89661-60C40iUZJ100200407-200505

sub89661-60C41

main89661-60C60iUZJ100200505-200507

sub89661-60C61

main89661-60C61iUZJ100200508-200510

sub89661-60C62

main89661-60C62iUZJ100200511-200608

main89661-60C70iUZJ100200505-200708

MEXICO SPEC

main89661-60D80iUZJ100200608-200708

sub89661-60D81

main89661-6A220iUZJ100200208-200210

sub89661-6A221

main89661-6A221iUZJ100200210-200307

sub89661-6A222

main89666-60170iUZJ100199907-200008

main89666-60260iUZJ100199903-199904

sub89666-60261

main89666-60261iUZJ100199904-199907

main89666-60360iUZJ100200008-200108

main89666-60710iUZJ100200108-200110

sub89666-60711

main89666-60711iUZJ100200110-200208

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60140iUZJ100199801-200708

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60160iUZJ100199801-200708

89672AMOTOR, THROTTLE CONTROL

main89672-47010iUZJ100199801-200208

9011906067

main90119-06067

9015960303

main90159-60303

9043012005

main90430-12005

9162140610

main91621-40610

9331915010

main93319-15010

14 parts on this diagram · 3 diagrams in section
