WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1ENGINE 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1DOOR 0011 1DOOR 0012 1SEAT 0013 1SEAT 0014 1FLOOR,ROOF,LUGGAGE,BACK DOOR 0015 1FLOOR,LUGGAGE 0016 1ROOF,BACK DOOR 0017 1BRACKET & CLAMP 0018 1BRACKET & CLAMP 0019 1CABLE BOND 0020 1CONNECTOR

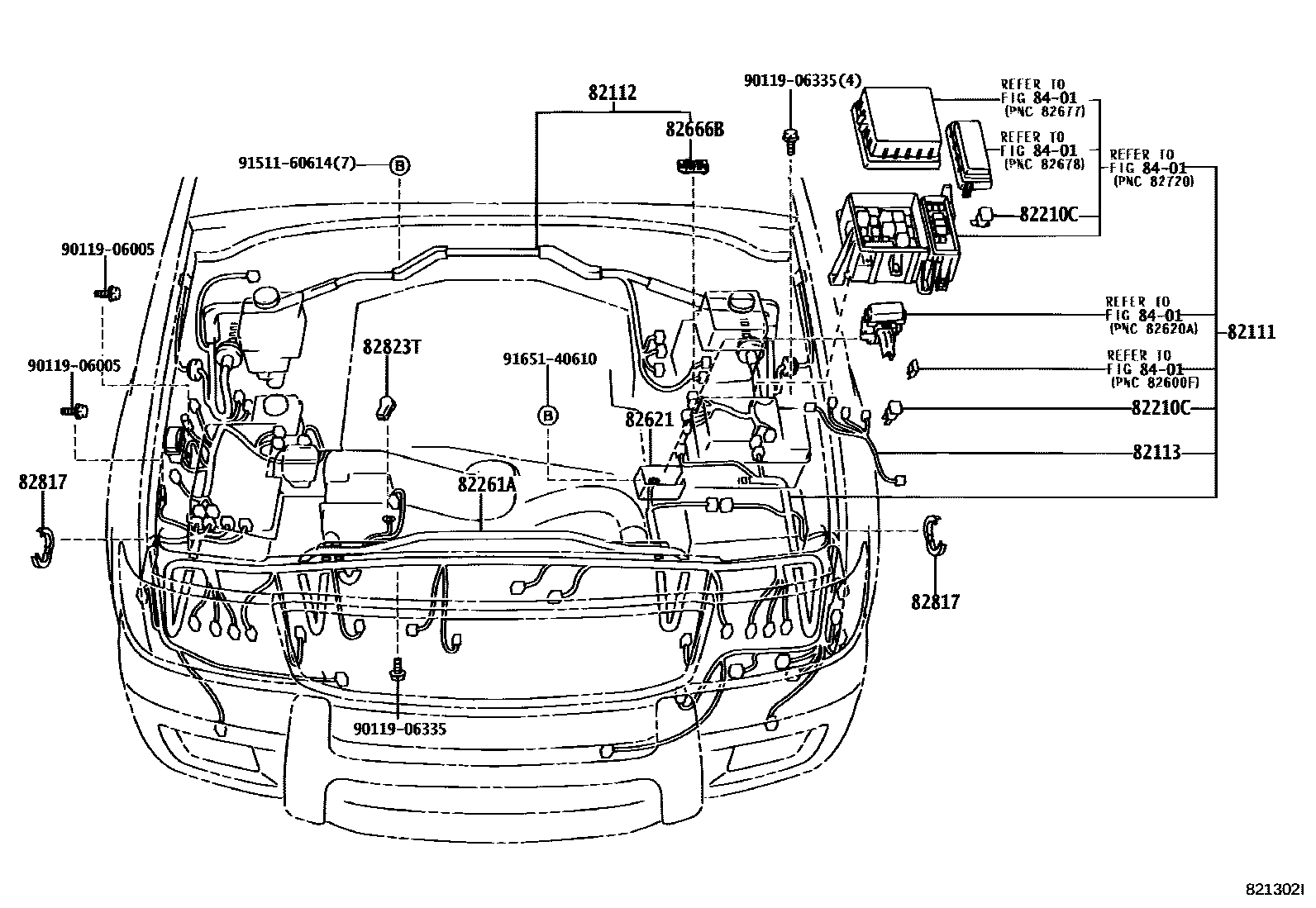

82111WIRE, ENGINE ROOM MAIN

main82111-60790iUZJ100¥101,000200005-200008

W(DUAL AUTOMATIC AIR CONDITIONER)

main82111-60890iUZJ100¥106,000199801-199808

W(DUAL AIR CONDITIONER)

main82111-60891iUZJ100¥106,000199808-199811

W(DUAL AIR CONDITIONER)

main82111-60892iUZJ100¥101,000199811-199907

W(DUAL AIR CONDITIONER)

main82111-60893iUZJ100¥101,000199907-200005

W(DUAL AUTOMATIC AIR CONDITIONER)

main82111-60894iUZJ100¥101,000200008-200208

W(DUAL AUTOMATIC AIR CONDITIONER)

main82111-60895iUZJ100¥32,000200208-200505

main82111-60896iUZJ100¥32,000200505

main82111-6A110iUZJ100¥28,000199801-199808

main82111-6A111iUZJ100¥106,000199808-199811

main82111-6A112iUZJ100¥101,000199811-199907

main82111-6A113iUZJ100¥101,000199907-200004

main82111-6A114iUZJ100¥101,000200004-200208

82112WIRE, ENGINE ROOM, NO.2

main82112-60170iUZJ100¥106,000199801-199808

W(REAR DIFFERENTIAL LOCK)

main82112-60171iUZJ100¥119,000199808-199811

W(REAR DIFFERENTIAL LOCK)

sub82112-60172¥114,000

main82112-60172iUZJ100¥114,000199811-199907

W(REAR DIFFERENTIAL LOCK)

main82112-60173iUZJ100¥126,000199907-200008

W(VSC)

main82112-60174iUZJ100¥126,000200008-200208

W(VSC)

main82112-60230iUZJ100¥106,000199801-199808

main82112-60231iUZJ100¥106,000199808-199811

sub82112-60232¥114,000

main82112-60232iUZJ100¥114,000199811-199907

main82112-60233iUZJ100¥101,000199907-200008

main82112-60234iUZJ100¥101,000200008-200208

main82112-60550iUZJ100¥168,000200208-200310

main82112-60551iUZJ100200310-200505

main82112-60552iUZJ100¥186,000200505-200602

sub82112-60650

main82112-60650iUZJ100200603

82113WIRE, ENGINE ROOM, NO.3

main82113-60070iUZJ100¥12,000199801-200004

main82113-60090iUZJ100¥18,700200004-200208

82210CFUSIBLE LINK

main90982-08246iUZJ100¥440199801-200208

100A,TERM.:MALE,BLUE

main90982-08283iUZJ100¥440199801-200505

30A,TERM.:FEMALE,PNK

main90982-08284iUZJ100¥590199801-200505

40A,TERM.:FEMALE,GRN

main90982-08285iUZJ100¥440199801-200505

50A,FEMALE,RED,32VDC

main90982-08286iUZJ100¥480199801-200208

140A,TERM.:MALE,RBR

main90982-08290iUZJ100¥640199801-200208

60A,YELLOW

main90982-08291iUZJ100¥630199801-200208

80A,BLACK

82261AWIRE, ALTERNATOR

main82261-60060iUZJ100¥10,500199801-200208

main82261-60140iUZJ100¥16,200200208-200407

main82261-60141iUZJ100¥16,200200407-200505

main82261-60142iUZJ100¥16,200200505

82621COVER, FUSIBLE LINK

main82621-60010iUZJ100¥1,120199801-200208

82666BHOLDER, CONNECTOR NO.3

main82666-60060iUZJ100¥320199801-200602

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-24110iUZJ100¥380199801-200505

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iUZJ100¥390199801-200708

8401

9011906005

main90119-06005¥80

9011906335

main90119-06335¥120

9151160614

main91511-60614¥110

9165140610

main91651-40610¥160

14 parts on this diagram · 20 diagrams in section
