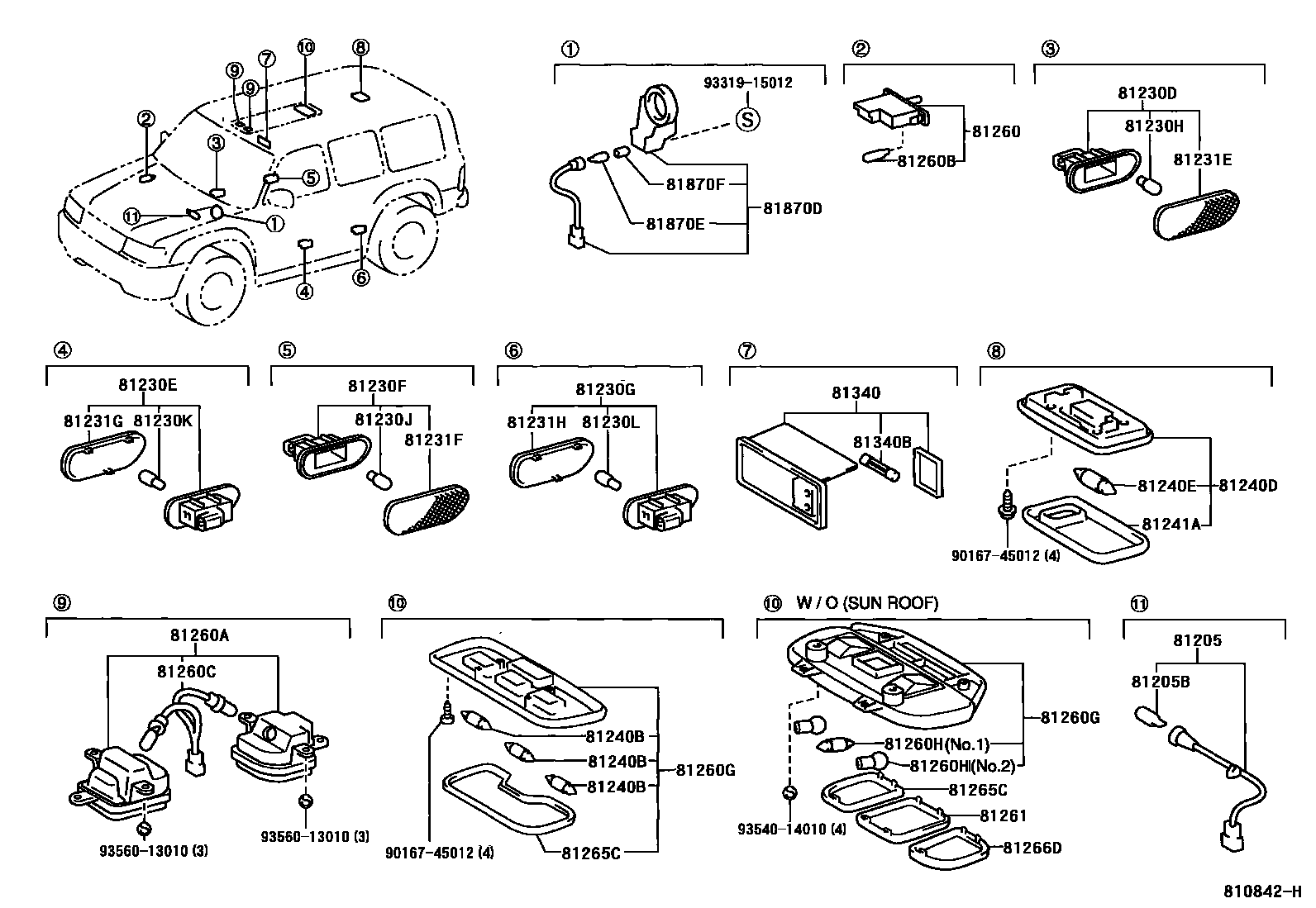

INTERIOR LAMP
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81230FLAMP ASSY, REAR DOOR COURTESY, RH
81230GLAMP ASSY, REAR DOOR COURTESY, LH
81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)
12V 3.8W
81230JBULB(FOR REAR DOOR COURTESY LAMP RH)
12V 3.8W
81230KBULB(FOR REAR DOOR COURTESY LAMP LH)
12V 3.8W
81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)
12V 3.8W
81231ELENS (FOR FRONT DOOR COURTESY LAMP, RH)
81231FLENS (FOR REAR DOOR COURTESY LAMP, RH)
81231GLENS (FOR FRONT DOOR COURTESY LAMP, LH)
81231HLENS (FOR REAR DOOR COURTESY LAMP, LH)
81240BBULB, ROOM LAMP, NO.1
12V 8W
81240DLAMP ASSY, ROOM, NO.2
IVORY,TRIM40,41
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
81240EBULB, ROOM LAMP, NO.2
12V 8W
81241ALENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
IVORY,TRIM40,41
MD.GRAY,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 5W
81260GLAMP ASSY, MAP, NO.2
W/O(SUN ROOF),IVORY,TRIM4#
W/O(SUN ROOF),MD.GRAY,TRIM1#
W/O(SUN ROOF),IVORY,TRIM40,41
W/O(SUN ROOF),MD.GRAY,TRIM1#
IVORY,TRIM40,41
MD.GRAY,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
81260HBULB(FOR MAP LAMP), NO.2
12V 8W,NO.1
12V 5W,NO.2
81261LENS AND COVER, MAP LAMP
81265CLENS, MAP LAMP, NO.1
W/O(SUN ROOF)
81266DLENS, MAP LAMP, NO.2
81340LAMP ASSY, VANITY
IVORY,TRIM40,41,RH
MEXICO SPEC,IVORY,TRIM0#,RH
MD.GRAY,TRIM1#,RH
MEXICO SPEC,STONE,TRIM1#,RH
IVORY,TRIM0#,RH
STONE,TRIM1#,RH
IVORY,TRIM40,41,LH
MEXICO SPEC,IVORY,TRIM0#,LH
MD.GRAY,TRIM1#,LH
MEXICO SPEC,STONE,TRIM1#,LH
IVORY,TRIM0#,LH
STONE,TRIM1#,LH
81340BBULB (FOR VANITY LAMP)
12V 1.5W
81870DLAMP ASSY, KEY CYLINDER
sub81870-33030
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
81870FCAP, KEY CYLINDER LAMP BULB
9016745012
main90167-45012
9331915012
main93319-15012
9354014010
main93540-14010
9356013010
main93560-13010
36 parts on this diagram · 2 diagrams in section
