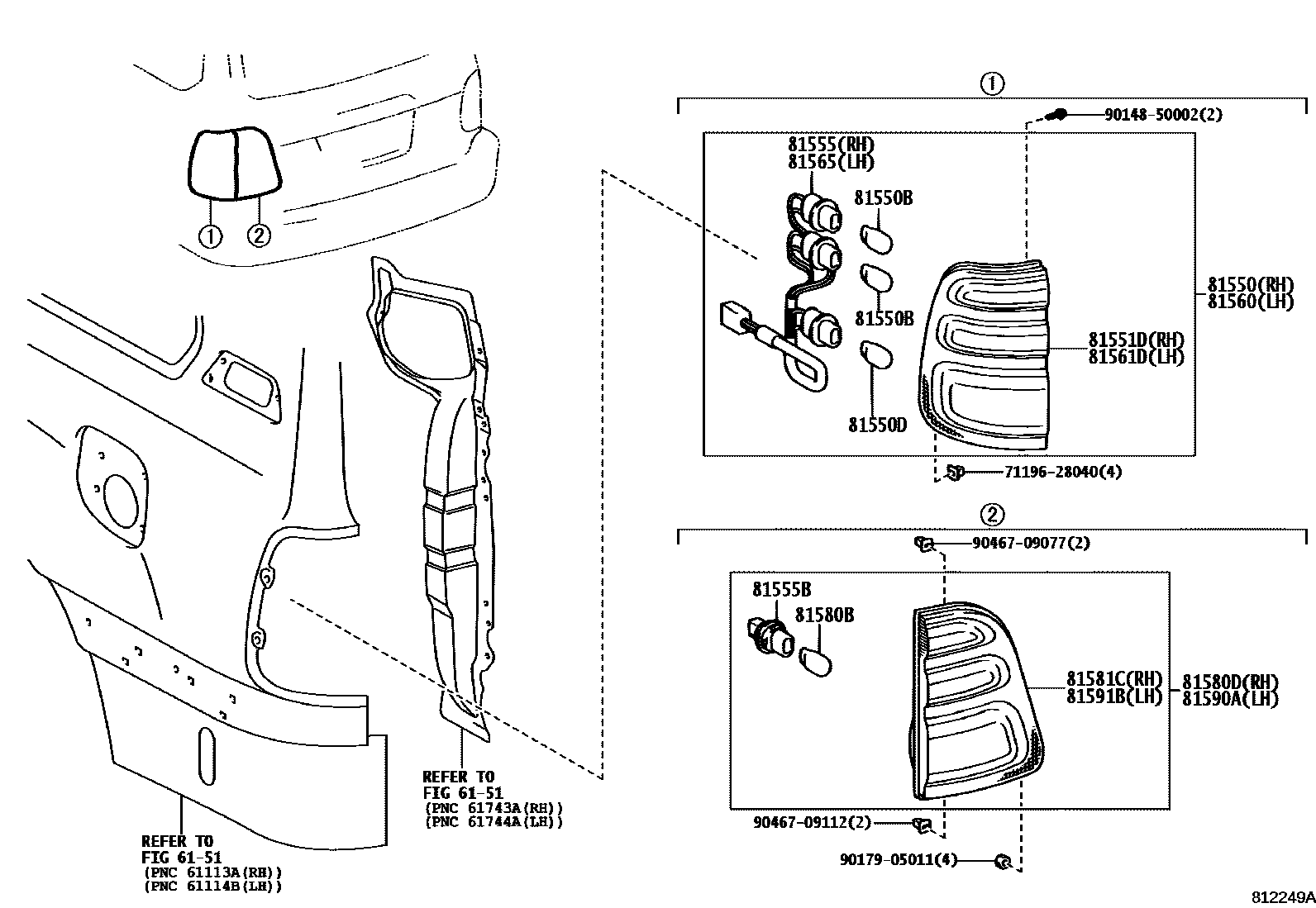

REAR COMBINATION LAMP

0001 1 0002 1

6151

81550LAMP ASSY, REAR COMBINATION, RH

main81550-60570iUZJ100199801-200208

main81550-60690iUZJ100200208-200505

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×4iUZJ100199801-200208

12V 21W

main90981-15011×2iUZJ100200208-200505

12V 21W,AMBER

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-13044×2iUZJ100199801-200208

12V 21/5W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60570iUZJ100199801-200208

main81551-60690iUZJ100200208-200505

main81551-60760iUZJ100200505

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60560iUZJ100199801-200208

main81555-60680iUZJ100200208-200505

main81555-60760iUZJ100200505

81555BSOCKET PLUG, NO.1

main90075-60002×2iUZJ100199801-200208

81560LAMP ASSY, REAR COMBINATION, LH

main81560-60490iUZJ100199801-200208

main81560-60610iUZJ100200208-200505

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60490iUZJ100199801-200208

main81561-60610iUZJ100200208-200505

main81561-60680iUZJ100200505

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60560iUZJ100199801-200208

main81555-60680iUZJ100200208-200505

main81555-60760iUZJ100200505

81580BBULB (FOR REAR LAMP)

main90981-13044×2iUZJ100199801-200208

12V 21/5W

81580DLAMP ASSY, REAR, RH

main81580-60010iUZJ100199801-200208

main81580-60020iUZJ100200208-200505

main81580-60130iUZJ100200505

81581CLENS AND BODY, REAR LAMP, RH

main81581-60010iUZJ100199801-200208

main81581-60020iUZJ100200208-200505

81590ALAMP ASSY, REAR, LH

main81590-60040iUZJ100199801-200208

main81590-60050iUZJ100200208-200505

main81590-60160iUZJ100200505

81591BLENS AND BODY, REAR LAMP, LH

main81591-60040iUZJ100199801-200208

main81591-60050iUZJ100200208-200505

7119628040CLIP(FOR REAR SPOILER)

main71196-28040

9014850002

main90148-50002

9017905011

main90179-05011

9046709077

main90467-09077

9046709112

main90467-09112

20 parts on this diagram · 2 diagrams in section
