HEADLAMP

0001 1 0002 1

81010HEADLAMP ASSY, W/CLEARANCE, RH

main81010-60070iUZJ100199801-200308

sub81010-60071

main81010-60071iUZJ100200308-200505

sub81010-60072

81050HEADLAMP ASSY, W/CLEARANCE, LH

main81050-60070iUZJ100199801-200308

sub81050-60071

main81050-60071iUZJ100200308-200505

sub81050-60072

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041iUZJ100200505-200607

12V 65W

sub90981-13046

main90981-13046iUZJ100199801-200505

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047iUZJ100199801-200708

12V 51W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81019-60070iUZJ100199801-200308

sub81019-60071

main81019-60071iUZJ100200308-200505

sub81019-60072

main81130-60B20iUZJ100200505-200607

sub81130-60B21

main81130-60B21iUZJ100200608

81145CCOVER, HEADLAMP SOCKET, NO.2

main90075-65006iUZJ100199801-200505

81175UNIT ASSY, HEADLAMP, LH

main81059-60070iUZJ100199801-200308

sub81059-60071

main81059-60071iUZJ100200308-200505

sub81059-60072

main81170-60B10iUZJ100200505-200607

sub81170-60B11

main81170-60B11iUZJ100200608

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iUZJ100199801-200505

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60004iUZJ100199801-200505

9007510004

main90075-10004

9010906334

main90109-06334

9015950353

main90159-50353

9018905142

main90189-05142

9046708180

main90467-08180

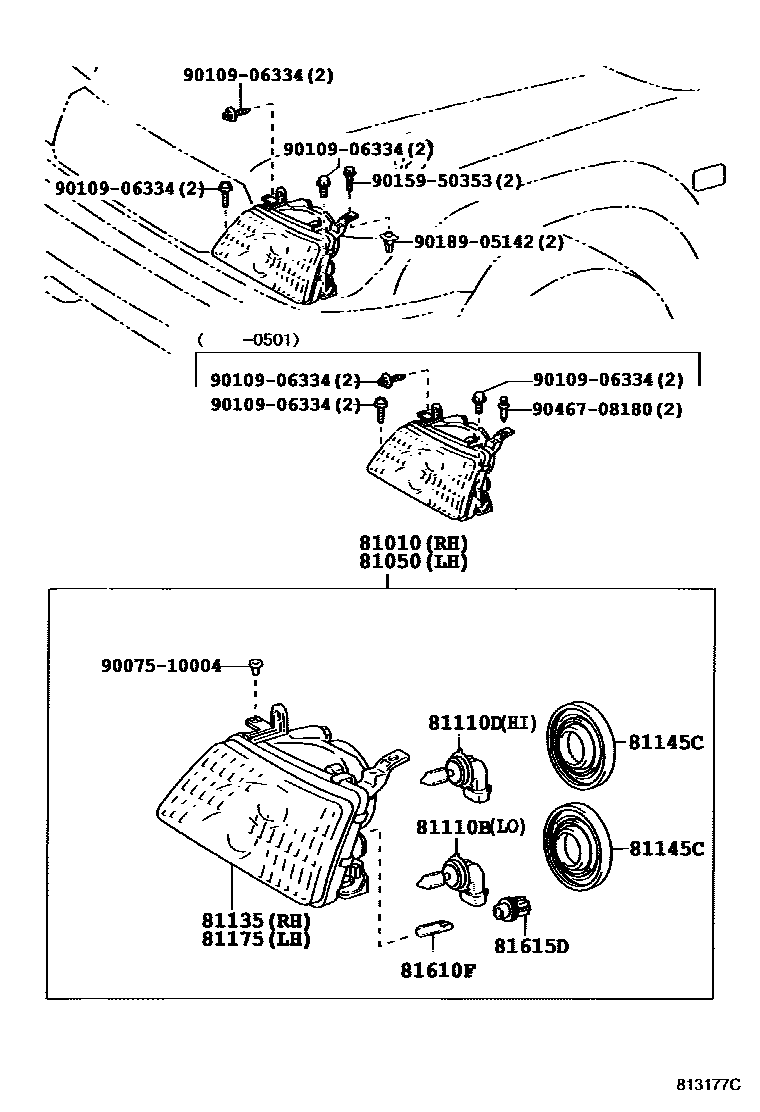

14 parts on this diagram · 2 diagrams in section
