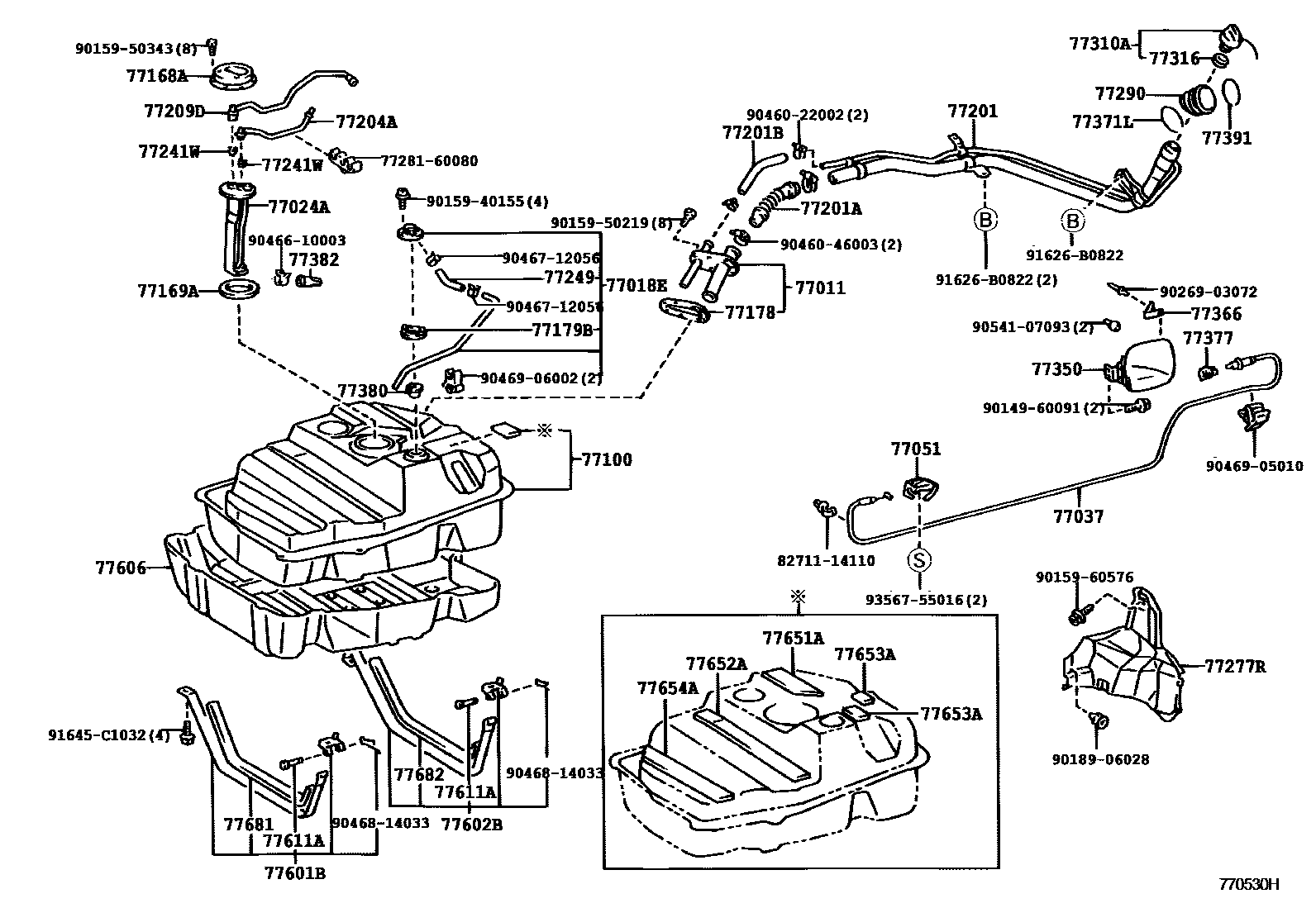

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051LEVER SUB-ASSY, FUEL LID OPEN
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
sub77179-26011
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77201BHOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)
L=280
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77366SPRING, FUEL FILLER OPENING LID HINGE
77371LRING, FUEL TANK FILLER PIPE SHIELD
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77382VALVE, FUEL CUT OFF
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77611APIN (FOR FUEL TANK BAND)
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
7728160080BRACKET, FUEL MAIN TUBE, NO.1
main77281-60080
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
9014960091
main90149-60091
9015940155
main90159-40155
9015950219
main90159-50219
9015950343
main90159-50343
9015960576
main90159-60576
9018906028
main90189-06028
9026903072
main90269-03072
9046022002
main90460-22002
9046046003
main90460-46003
9046610003
main90466-10003
9046712056
main90467-12056
9046814033
main90468-14033
9046905010
main90469-05010
9046906002
main90469-06002
9054107093
main90541-07093
91626B0822
main91626-B0822
91645C1032
main91645-C1032
9356755016
main93567-55016
58 parts on this diagram · 6 diagrams in section
