BODY STRIPE

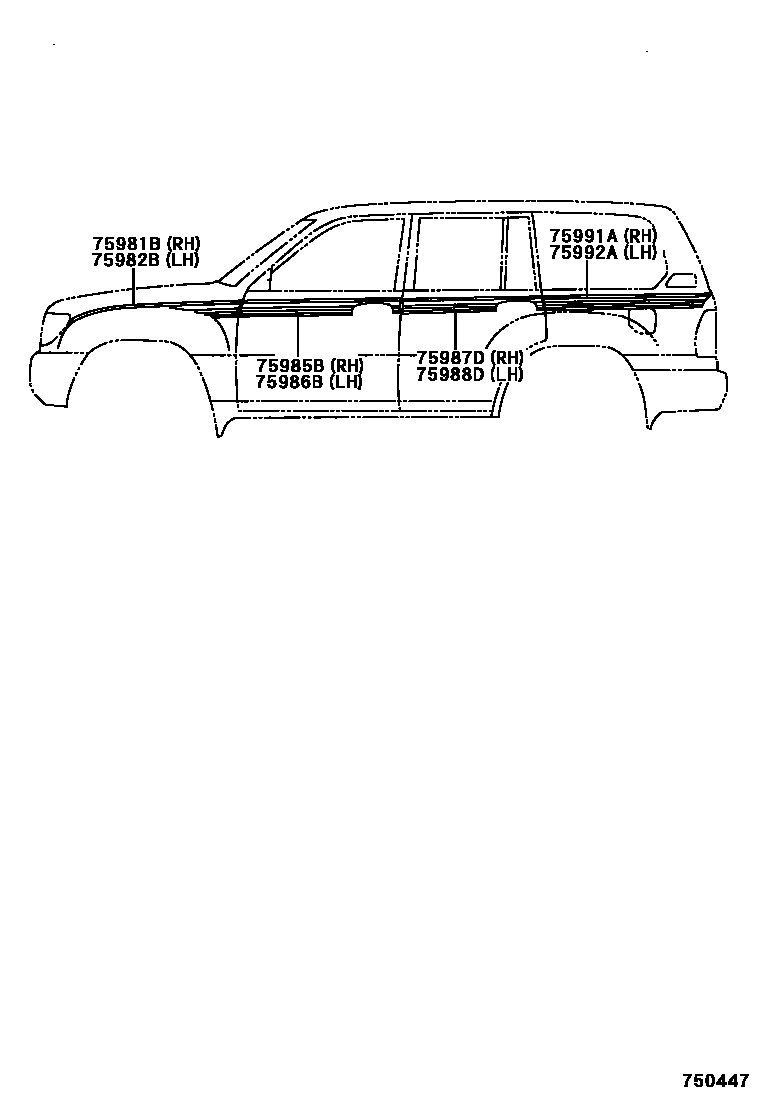

Parts diagram

75981BSTRIPE, FENDER, RH

main75981-60460i199801-199907

main75981-60560i199907-200008

main75981-60600i200008-200108

main75981-60670i200108-200208

main75981-60730i200208-200308

main75981-60810i200308-200408

75982BSTRIPE, FENDER, LH

main75982-60460i199801-199907

main75982-60560i199907-200008

main75982-60600i200008-200108

main75982-60670i200108-200208

main75982-60720i200208-200308

main75982-60800i200308-200408

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-60370i199801-199907

main75985-60440i199907-200008

main75985-60480i200008-200108

main75985-60520i200108-200208

main75985-60590i200208-200308

main75985-60650i200308-200408

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-60300i199801-199907

main75986-60440i199907-200008

main75986-60480i200008-200108

main75986-60520i200108-200208

main75986-60590i200208-200308

main75986-60650i200308-200408

75987DSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-60320i199801-199907

main75987-60340i199907-200008

main75987-60360i200008-200108

main75987-60380i200108-200208

main75987-60420i200208-200308

main75987-60470i200308-200408

75988DSTRIPE, REAR DOOR OUTSIDE, LH

main75988-60380i199801-199907

main75988-60420i199907-200008

main75988-60440i200008-200108

main75988-60480i200108-200208

main75988-60530i200208-200308

main75988-60590i200308-200408

75991ASTRIPE, QUARTER, RH

main75991-60660i199801-199907

main75991-60830i199907-200008

main75991-60A10i200308-200408

main75991-6A010i200008-200108

main75991-6A090i200108-200208

main75991-6A190i200208-200308

75992ASTRIPE, QUARTER, LH

main75992-60660i199801-199907

main75992-60830i199907-200008

main75992-60A10i200308-200408

main75992-6A010i200008-200108

main75992-6A090i200108-200208

main75992-6A200i200208-200308

8 parts on this diagram · 4 diagrams in section
