ARMREST & VISOR

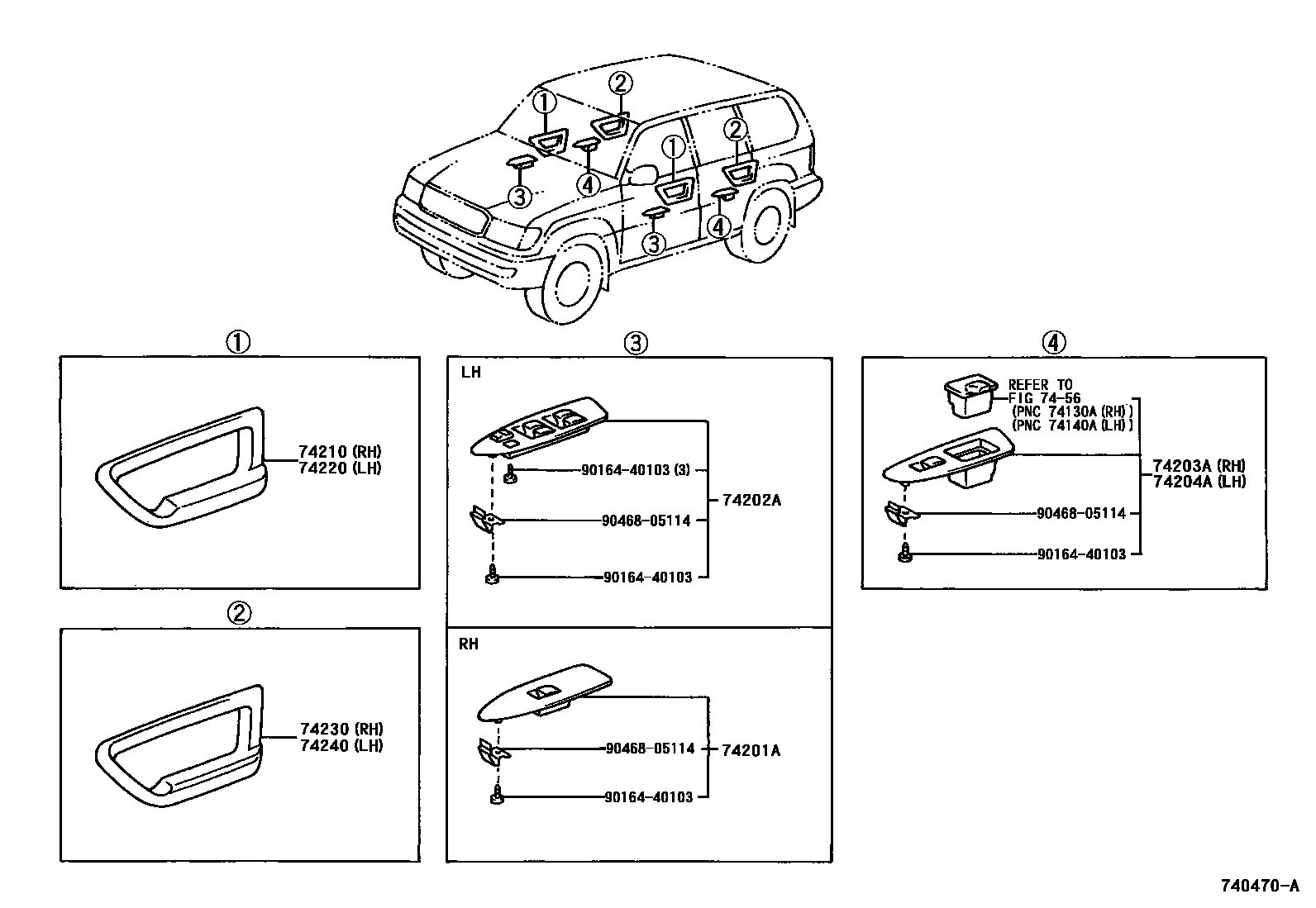

Parts diagram

74201APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER RH

main74201-60270-A0i199801-200008

IVORY,TRIM4#

main74201-60270-B0i199801-200008

MD.GRAY,TRIM1#

main74201-60360-A0i200008-200208

IVORY,TRIM4#

main74201-60360-B0i200008-200208

MD.GRAY,TRIM1#

main74231-60231-A1i200208-200505

IVORY,TRIM0#

main74231-60231-B1i200505-200708

STONE,TRIM1#

74202APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER LH

main74202-60170-A0i199801-200008

IVORY,TRIM4#

main74202-60170-B0i199801-200008

MD.GRAY,TRIM1#

main74202-60250-A0i200008-200208

IVORY,TRIM4#

main74202-60250-B0i200008-200208

MD.GRAY,TRIM1#

main74232-60321-A1i200208-200505

IVORY,TRIM0#

main74232-60321-B1i200505-200708

STONE,TRIM1#

74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH

main74203-60060-A0i199801-200008

IVORY,TRIM40,41

main74203-60060-B0i199801-200008

MD.GRAY,TRIM1#

main74203-60070-A0i200008-200208

IVORY,TRIM40,41

main74203-60070-B0i200008-200208

MD.GRAY,TRIM1#

main74271-60061-A1i200505-200708

IVORY,TRIM0#

main74271-60061-B1i200208-200505

STONE,TRIM1#

74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH

main74204-60060-A0i199801-200008

IVORY,TRIM40,41

main74204-60060-B0i199801-200008

MD.GRAY,TRIM1#

main74204-60070-A0i200008-200208

IVORY,TRIM40,41

main74204-60070-B0i200008-200208

MD.GRAY,TRIM1#

main74272-60061-A1i200505-200708

IVORY,TRIM0#

main74272-60061-B1i200208-200505

STONE,TRIM1#

74210ARMREST ASSY, FRONT, RH

main74210-60090-B0i199801-200208

SHADOW GRAY,TRIM1#

main74210-60090-B3i200208-200505

DK.GRAY,TRIM1#

main74210-60090-E0i199801-200208

OAK,TRIM40,41

main74210-60090-E2i200208-200505

SANDAL WOOD,TRIM0#

74220ARMREST ASSY, FRONT, LH

main74220-60090-B0i199801-200208

SHADOW GRAY,TRIM1#

main74220-60090-B3i200505-200708

DK.GRAY,TRIM1#

main74220-60090-E0i199801-200208

OAK,TRIM40,41

main74220-60090-E2i200505-200708

SANDAL WOOD,TRIM0#

74230ARMREST ASSY, REAR, RH

main74250-60010-B0i199801-200208

SHADOW GRAY,TRIM1#

main74250-60010-B3i200505-200708

DK.GRAY,TRIM1#

main74250-60010-E0i199801-200208

OAK,TRIM40,41

main74250-60010-E2i200208-200505

SANDAL WOOD,TRIM0#

74240ARMREST ASSY, REAR, LH

main74260-60010-B0i199801-200208

SHADOW GRAY,TRIM1#

main74260-60010-B3i200208-200505

DK.GRAY,TRIM1#

main74260-60010-E0i199801-200208

OAK,TRIM40,41

main74260-60010-E2i200208-200505

SANDAL WOOD,TRIM0#

7456

9016440103

main90164-40103

9046805114

main90468-05114

11 parts on this diagram · 3 diagrams in section
