SEAT BELT

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-22020-A0i199801-200208

IVORY,TRIM40,41

sub73135-22020¥680

main73135-22020-B0i199801-200208

MD.GRAY,TRIM1#

sub73135-22020¥680

main73135-60010-A0i199801-200208

W(FLOCKING),IVORY,TRIM40,41

sub73135-60010¥760

main73135-60010-A1i200208-200708

IVORY,TRIM0#

sub73135-60010¥760

main73135-60010-B0i199801-200208

W(FLOCKING),MD.GRAY,TRIM1#

sub73135-60010¥760

main73135-60010-B1i200208-200708

STONE,TRIM1#

sub73135-60010¥760

main73135-60030-A0i200208-200708

W(*80,CURTAIN SHIELD),IVORY,TRIM0#

main73135-60030-B0i200208-200708

W(*80,CURTAIN SHIELD),STONE,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-12040-A0i199801-200208

IVORY,TRIM40,41

sub73178-12040¥370

main73178-12040-B7i199801-200208

MD.GRAY,TRIM1#

sub73178-12040¥370

main73178-60020-A0i200208-200708

IVORY,TRIM0#

sub73178-60020¥370

main73178-60020-B0i200208-200708

STONE,TRIM1#

sub73178-60020¥370

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-60020-C0i199801-200208

BLACK,TRIM1#,4#

main73290-60010i¥5,300200208-200505

REAR NO.1 SEAT

main73290-60020i¥5,300200208-200505

FRONT SEAT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60450-A0i199801-199907

IVORY,TRIM4#

sub73210-60451¥37,800

main73210-60450-B0i199801-199907

BLUISH GRAY,TRIM1#

sub73210-60451¥37,800

main73210-60451-A0i199907-200208

IVORY,TRIM4#

sub73210-60451¥37,800

main73210-60451-B0i199907-200208

BLUISH GRAY,TRIM1#

sub73210-60451¥37,800

main73210-60452-A1i200208-200401

IVORY,TRIM0#

sub73210-60453¥37,900

main73210-60452-B1i200208-200401

GRAY,TRIM1#

sub73210-60453¥37,900

main73210-60453-A1i200402-200601

IVORY,TRIM0#

main73210-60453-B1i200402-200601

GRAY,TRIM1#

main73210-60580-A0i200601-200708

IVORY,TRIM0#

main73210-60580-B0i200601-200708

GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60320-A0i199801-199907

IVORY,TRIM4#

sub73220-60321¥37,800

main73220-60320-B0i199801-199907

BLUISH GRAY,TRIM1#

sub73220-60321¥37,800

main73220-60321-A0i199907-200108

IVORY,TRIM4#

sub73220-60322¥37,800

main73220-60321-B0i199907-200108

BLUISH GRAY,TRIM1#

sub73220-60322¥37,800

main73220-60322-A0i200108-200208

IVORY,TRIM40,41

sub73220-60322¥37,800

main73220-60322-B0i200108-200208

BLUISH GRAY,TRIM1#

sub73220-60322¥37,800

main73220-60323-A1i200208-200708

IVORY,TRIM0#

main73220-60323-B1i200208-200708

GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-60310-A0i199801-200208

IVORY,TRIM40,41

sub73230-60310¥5,800

main73230-60310-B0i199801-200208

MD.GRAY,TRIM1#

sub73230-60310¥5,800

main73240-60300-A0i200601-200708

IVORY,TRIM0#

sub73240-60300

main73240-60300-B0i200601-200708

STONE,TRIM1#

sub73240-60300

main73240-60390-A0i200208-200601

IVORY,TRIM0#

sub73240-60390¥5,800

main73240-60390-B0i200208-200601

STONE,TRIM1#

sub73240-60390¥5,800

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-A0i199801-200208

IVORY,TRIM40,41

sub73233-33010¥300

main73233-33010-A1i200208-200708

IVORY,TRIM0#

sub73233-33010¥300

main73233-33010-B5i199801-200208

MD.GRAY,TRIM1#

sub73233-33010¥300

main73233-33010-B6i200208-200708

STONE,TRIM1#

sub73233-33010¥300

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-60310-A0i199801-200208

IVORY,TRIM40,41

sub73230-60310¥5,800

main73230-60310-B0i199801-200208

MD.GRAY,TRIM1#

sub73230-60310¥5,800

main73230-60380-A0i200601-200708

IVORY,TRIM0#

sub73230-60380

main73230-60380-B0i200601-200708

STONE,TRIM1#

sub73230-60380

main73230-60460-A0i200208-200601

IVORY,TRIM0#

sub73230-60460¥5,800

main73230-60460-B0i200208-200601

STONE,TRIM1#

sub73230-60460¥5,800

9010911027

main90109-11027¥180

9090119040

main90901-19040¥120

9151281020

main91512-81020¥170

9166160616

main91661-60616¥70

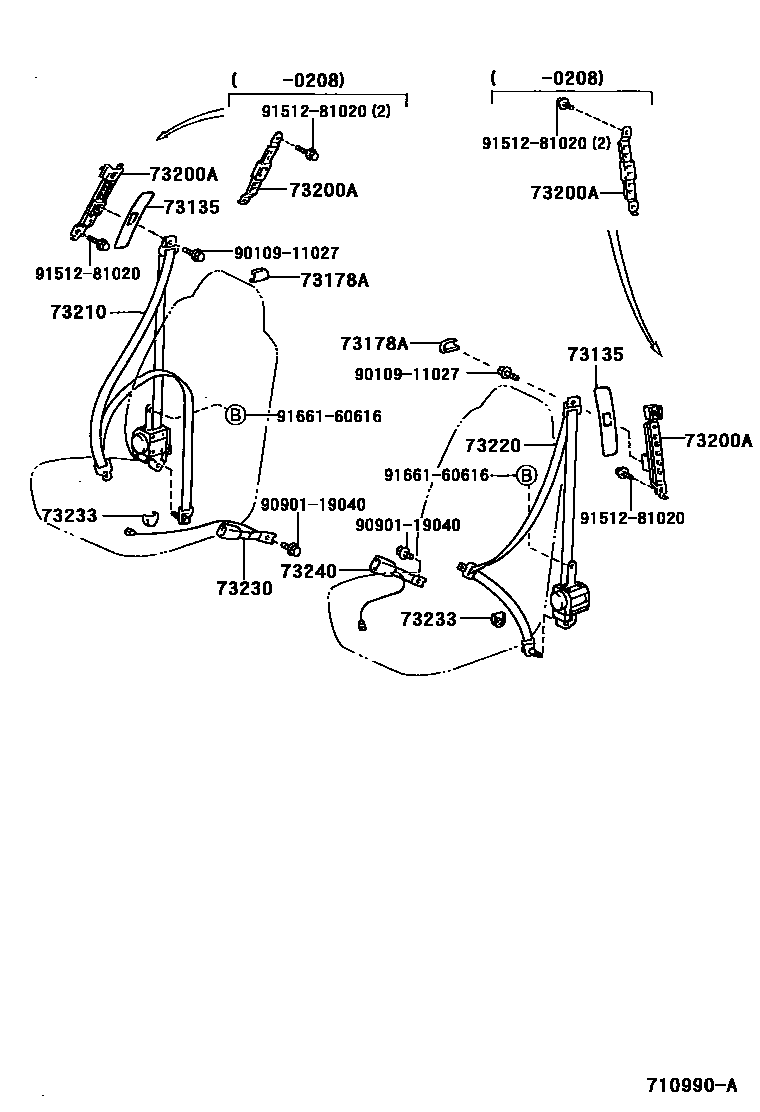

12 parts on this diagram · 4 diagrams in section
