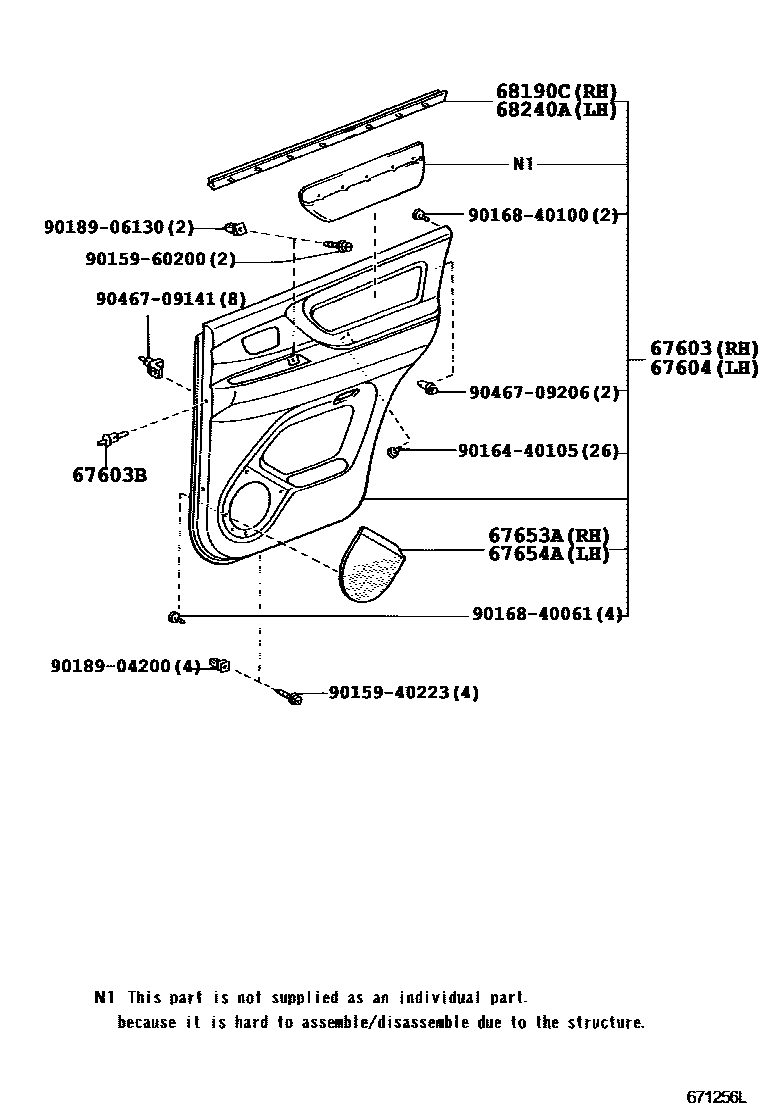

REAR DOOR PANEL & GLASS
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
W(LEATHER SEAT),OAK,TRIM4#
67603BCLIP(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
W(LEATHER SEAT),OAK,TRIM4#
67653AGRILLE, SPEAKER REAR DOOR, RH
IVORY,TRIM0#
STONE,TRIM1#
67654AGRILLE, SPEAKER REAR DOOR, LH
IVORY,TRIM0#
STONE,TRIM1#
68190CWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH
68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
9015940223
9015960200
9016440105
9016840061
9016840100
9018904200
9018906130
9046709141
9046709206
16 parts on this diagram · 2 diagrams in section
