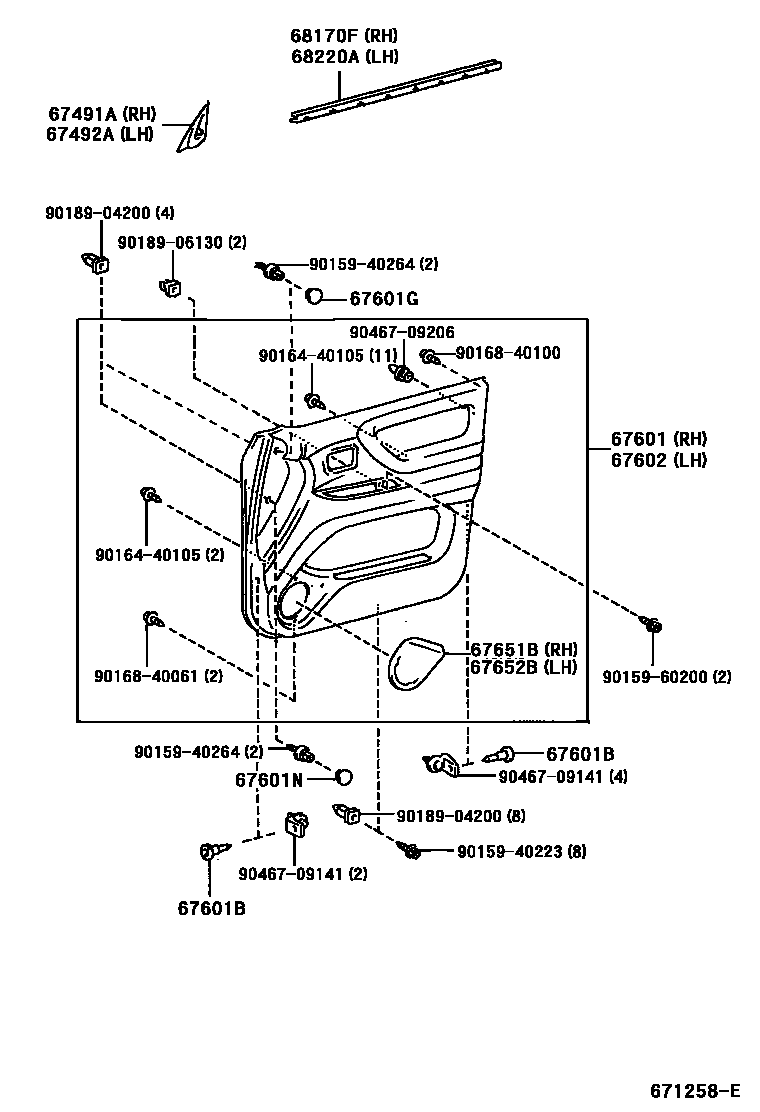

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-60070iUZJ100199801-200505

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-60070iUZJ100199801-200505

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67650-60020-B0iUZJ100199801-200008

SHADOW GRAY,TRIM1#

sub67650-60310

main67650-60020-E0iUZJ100199801-200008

OAK,TRIM4#

sub67650-60310

main67650-60040-B0iUZJ100199801-200008

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67650-60320

main67650-60040-E0iUZJ100199801-200008

W(LEATHER SEAT),OAK,TRIM4#

sub67650-60320

main67650-60310-B0iUZJ100200008-200107

SHADOW GRAY,TRIM1#

sub67650-60311

main67650-60310-E0iUZJ100200008-200107

OAK,TRIM4#

sub67650-60311

main67650-60311-B0iUZJ100200107-200206

SHADOW GRAY,TRIM1#

sub67650-60311

main67650-60311-B1iUZJ100200206-200208

SHADOW GRAY,TRIM1#

sub67650-60311

main67650-60311-E0iUZJ100200107-200206

OAK,TRIM4#

sub67650-60311

main67650-60311-E1iUZJ100200206-200208

OAK,TRIM4#

sub67650-60311

main67650-60320-B0iUZJ100200008-200206

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67650-60320

main67650-60320-B1iUZJ100200206-200208

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67650-60320

main67650-60320-E0iUZJ100200008-200206

W(LEATHER SEAT),OAK,TRIM4#

sub67650-60320

main67650-60320-E1iUZJ100200206-200208

W(LEATHER SEAT),OAK,TRIM4#

sub67650-60320

main67650-60321-A0iUZJ100200208-200701

IVORY,TRIM0#

sub67650-60321

main67650-60321-A1iUZJ100200701-200708

IVORY,TRIM0#

sub67650-60321

main67650-60321-B0iUZJ100200208-200701

STONE,TRIM1#

sub67650-60321

main67650-60321-B1iUZJ100200701-200708

STONE,TRIM1#

sub67650-60321

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-A0iUZJ100200208-200708

IVORY,TRIM0#

sub90467-07066

main90467-07066-A1iUZJ100199801-200208

IVORY,TRIM40,41

sub90467-07066

main90467-07066-P2iUZJ100199801-200208

MD.GRAY,TRIM1#

sub90467-07066

main90467-07066-P4iUZJ100200208-200708

STONE,TRIM1#

sub90467-07066

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-A1iUZJ100200208-200708

IVORY,TRIM00

sub90950-01800

main90950-01800-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

sub90950-01800

main90950-01800-B9iUZJ100200208-200708

STONE,TRIM10

sub90950-01800

main90950-01800-E1iUZJ100199801-200208

OAK,TRIM40,41

sub90950-01800

main90950-01800-E5iUZJ100200208-200708

SANDAL WOOD,TRIM00

sub90950-01800

main90950-01800-P0iUZJ100200208-200708

DK.GRAY,TRIM10

sub90950-01800

67601NPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-A0iUZJ100199801-200208

IVORY,TRIM40,41

sub90950-01800

main90950-01800-A1iUZJ100200208-200708

IVORY,TRIM00

sub90950-01800

main90950-01800-B6iUZJ100199801-200208

MD.GRAY,TRIM1#

sub90950-01800

main90950-01800-B9iUZJ100200208-200708

STONE,TRIM10

sub90950-01800

main90950-01800-E5iUZJ100200208-200708

SANDAL WOOD,TRIM00

sub90950-01800

main90950-01800-P0iUZJ100200208-200708

DK.GRAY,TRIM10

sub90950-01800

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67660-60030-B0iUZJ100199801-200008

SHADOW GRAY,TRIM1#

sub67660-60330

main67660-60030-E0iUZJ100199801-200008

OAK,TRIM4#

sub67660-60330

main67660-60050-B0iUZJ100199801-200008

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67660-60340

main67660-60050-E0iUZJ100199801-200008

W(LEATHER SEAT),OAK,TRIM4#

sub67660-60340

main67660-60330-B0iUZJ100200008-200107

SHADOW GRAY,TRIM1#

sub67660-60331

main67660-60330-E0iUZJ100200008-200107

OAK,TRIM4#

sub67660-60331

main67660-60331-B0iUZJ100200107-200206

SHADOW GRAY,TRIM1#

sub67660-60331

main67660-60331-B1iUZJ100200206-200208

SHADOW GRAY,TRIM1#

sub67660-60331

main67660-60331-E0iUZJ100200107-200206

OAK,TRIM4#

sub67660-60331

main67660-60331-E1iUZJ100200206-200208

OAK,TRIM4#

sub67660-60331

main67660-60340-B0iUZJ100200008-200206

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67660-60340

main67660-60340-B1iUZJ100200206-200208

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67660-60340

main67660-60340-E0iUZJ100200008-200206

W(LEATHER SEAT),OAK,TRIM4#

sub67660-60340

main67660-60340-E1iUZJ100200206-200208

W(LEATHER SEAT),OAK,TRIM4#

sub67660-60340

main67660-60341-A0iUZJ100200208-200701

IVORY,TRIM0#

sub67660-60341

main67660-60341-A1iUZJ100200701-200708

IVORY,TRIM0#

sub67660-60341

main67660-60341-B0iUZJ100200208-200701

STONE,TRIM1#

sub67660-60341

main67660-60341-B1iUZJ100200701-200708

STONE,TRIM1#

sub67660-60341

67651BGRILLE, SPEAKER DOOR, RH

main67609-60010-A1iUZJ100200206-200208

IVORY,TRIM40,41

sub67609-60010

main67609-60010-B0iUZJ100199801-200206

SHADOW GRAY,TRIM1#

sub67609-60010

main67609-60010-B2iUZJ100200206-200208

MD.GRAY,TRIM1#

sub67609-60010

main67609-60010-E0iUZJ100199801-200206

OAK,TRIM40,41

sub67609-60010

main67609-60011-A0iUZJ100200208-200708

IVORY,TRIM0#

main67609-60011-B1iUZJ100200208-200708

STONE,TRIM1#

67652BGRILLE, SPEAKER DOOR, LH

main67709-60010-A1iUZJ100200206-200208

IVORY,TRIM40,41

sub67709-60010

main67709-60010-B0iUZJ100199801-200206

SHADOW GRAY,TRIM1#

sub67709-60010

main67709-60010-B2iUZJ100200206-200208

MD.GRAY,TRIM1#

sub67709-60010

main67709-60010-E0iUZJ100199801-200206

OAK,TRIM40,41

sub67709-60010

main67709-60011-A0iUZJ100200208-200708

IVORY,TRIM0#

main67709-60011-B1iUZJ100200208-200708

STONE,TRIM1#

68170FWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER RH

main68170-60110iUZJ100199801-200104

sub68170-60111

main68170-60111iUZJ100200104-200708

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-60060iUZJ100199801-200104

sub68220-60061

main68220-60061iUZJ100200104-200708

9015940223

main90159-40223

9015940264

main90159-40264

9015960200

main90159-60200

9016440105

main90164-40105

9016840061

main90168-40061

9016840100

main90168-40100

9018904200

main90189-04200

9018906130

main90189-06130

9046709141

main90467-09141

9046709206

main90467-09206

21 parts on this diagram · 2 diagrams in section
