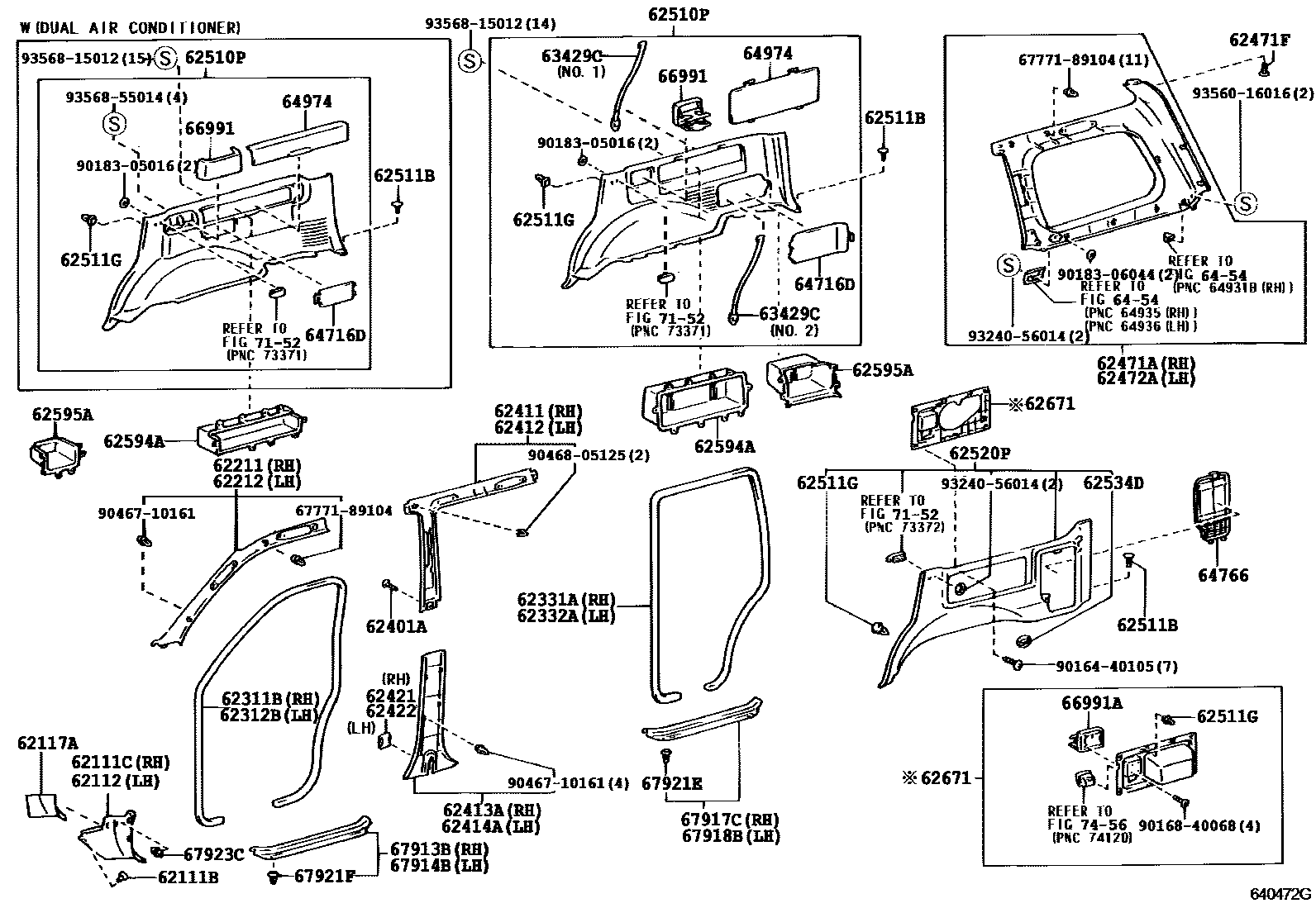

INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
IVORY,TRIM40,41
MD.GRAY,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
W(*80,CURTAIN SHIELD),IVORY,TRIM0#
W(*80,CURTAIN SHIELD),STONE,TRIM1#
62412GARNISH, CENTER PILLAR, LH
W(*80,CURTAIN SHIELD),IVORY,TRIM0#
W(*80,CURTAIN SHIELD),STONE,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
IVORY,TRIM0#
STONE,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
IVORY,TRIM0#
STONE,TRIM1#
62421COVER, CENTER PILLAR GARNISH, RH
IVORY,TRIM0#
STONE,TRIM1#
62422COVER, CENTER PILLAR GARNISH, LH
62471AGARNISH, ROOF SIDE, INNER RH
W(TONNEAU COVER),IVORY,TRIM40,41
W(TONNEAU COVER),MD.GRAY,TRIM1#
IVORY,TRIM40,41
MD.GRAY,TRIM1#
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM4#
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
W(TRANSVERSE THIRD SEAT & POWER QUATER WINDOW),IVORY,TRIM4#
W(TRANSVERSE THIRD SEAT & POWER QUATER WINDOW),MD.GRAY,TRIM1#
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & POWER QUATER WINDOW),IVORY,TRIM4#
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & POWER QUATER WINDOW),MD.GRAY,TRIM1#
W(*80,CURTAIN SHIELD),IVORY,TRIM0#
W(*80,CURTAIN SHIELD),STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
IVORY,TRIM40,41
MD.GRAY,TRIM1#
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
W(TONNEAU COVER),IVORY,TRIM40,41
W(TONNEAU COVER),MD.GRAY,TRIM1#
W(TRANSVERSE THIRD SEAT & POWER QUATER WINDOW),IVORY,TRIM4#
W(TRANSVERSE THIRD SEAT & POWER QUATER WINDOW),MD.GRAY,TRIM1#
W(*80,CURTAIN SHIELD),IVORY,TRIM0#
W(*80,CURTAIN SHIELD),STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM40,41
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
PINK
W(DUAL AIR CONDITIONER),PINK
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
62534DBRACKET, QUARTER TRIM, NO.1, LH
62594APOCKET, QUARTER TRIM, NO.1
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
62595APOCKET, QUARTER TRIM, NO.2
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
62671BOARD SUB-ASSY, QUARTER TRIM, LOWER
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
63429CBAND, ROOM RACK
NO.1
NO.2
6454
64716DCOVER, DECK TRIM, REAR
64766COVER SUB-ASSY, QUARTER TRIM JACK
64974COVER, DECK TRIM POCKET
66991HOLDER, QUARTER TRIM CUP, RH
66991AHOLDER, QUARTER TRIM CUP, LH
67913BPLATE, FRONT DOOR SCUFF, RH
67914BPLATE, FRONT DOOR SCUFF, LH
67917CPLATE, REAR DOOR SCUFF, RH
67918BPLATE, REAR DOOR SCUFF, LH
67921ERETAINER, REAR DOOR SCUFF PLATE
RED
YELLOW
67921FRETAINER, FRONT DOOR SCUFF PLATE
RED
YELLOW
67923CCLAMP, DOOR SCUFF PLATE, NO.1
7152
7456
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
9016440105
9016840068
9018305016
9018306044
9046710161
9046805125
9324056014
9356016016
9356815012
9356855014
55 parts on this diagram · 2 diagrams in section
