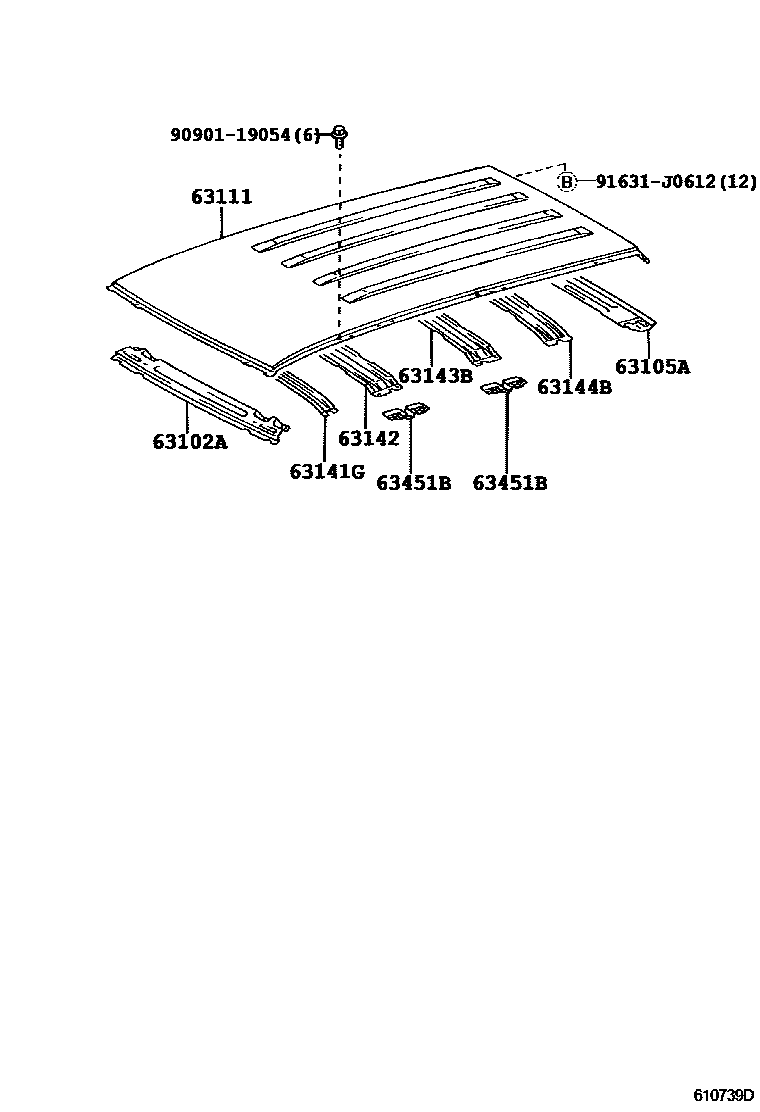

ROOF PANEL & BACK PANEL

0001 1 0002 1W(MOON ROOF) 0003 1 0004 1 0005 1W(ROOF RAIL)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60070iUZJ100199801-200505

main63102-60071iUZJ100200201-200208

sub63102-60070

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60180iUZJ100199801-199906

sub63105-60181

main63105-60181iUZJ100199906-200505

63111PANEL, ROOF

main63111-60450iUZJ100199801-199906

sub63111-60451

main63111-60451iUZJ100199906-200008

main63111-60460iUZJ100199801-199906

W(MOON ROOF)

sub63111-60461

main63111-60461iUZJ100199906-200208

W(MOON ROOF)

main63111-60461iUZJ100200208-200505

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60060iUZJ100199801-200008

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-60020iUZJ100199801-200505

W(MOON ROOF)

main63104-60040iUZJ100199801-200505

W(MOON ROOF & ROOF RACK)

main63143-60030iUZJ100199801-200505

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-60050iUZJ100199801-200505

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63127-60020iUZJ100199801-200505

63451BREINFORCEMENT, ROOF RACK, NO.1

main63451-60040iUZJ100199801-200708

W(MOON ROOF)

9090119054

main90901-19054

91631J0612

main91631-J0612

10 parts on this diagram · 5 diagrams in section
