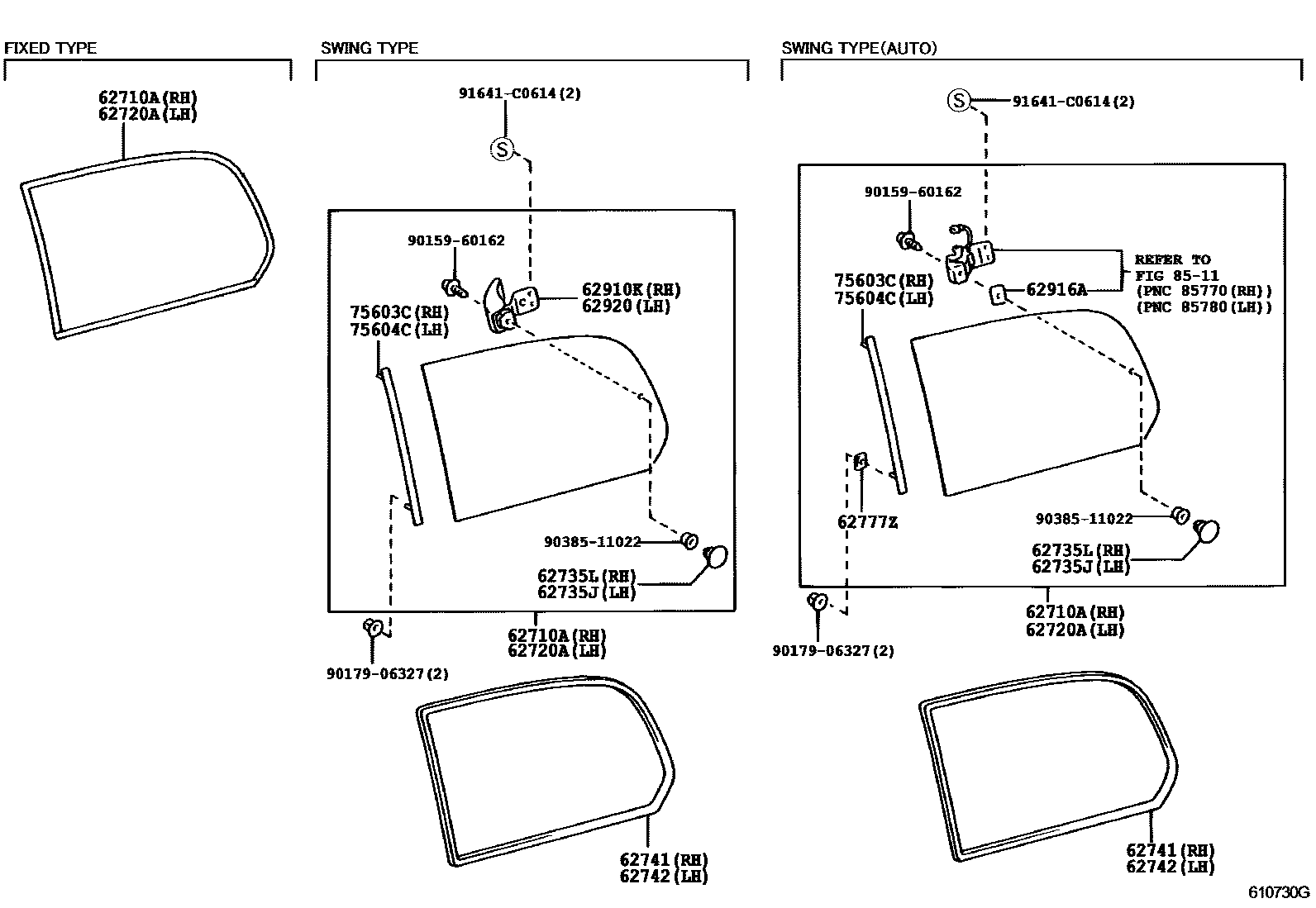

SIDE WINDOW
62710AWINDOW ASSY, QUARTER, RH
*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#
sub62710-60721
*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#
sub62710-60721
*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM40,41
sub62710-60723
*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#
sub62710-60723
*SERT,T=4.0,GRAY,W(SIDE WINDOW FIX TYPE)
*SERT,T=4.0,GRAY,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#
sub62710-60791
*SERT,T=4.0,GRAY,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#
sub62710-60791
*SERT,T=4.0,GRAY,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#
*SERT,T=4.0,GRAY,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#
*UVCSERT,T=4.0,GRAY
*UVCTT,T=4,DARK GRAY
62720AWINDOW ASSY, QUARTER, LH
*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#
sub62720-60631
*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#
sub62720-60631
*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM40,41
*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#
*SERT,T=4.0,GRAY,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#
sub62720-60701
*SERT,T=4.0,GRAY,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#
sub62720-60701
*SERT,T=4.0,GRAY,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#
*SERT,T=4.0,GRAY,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#
*UVCSERT,T=4.0,GRAY
*UVCTT,T=4,DARK GRAY
62735JRETAINER, QUARTER WINDOW HINGE, LH
62735LRETAINER, QUARTER WINDOW HINGE, RH
62777ZPLATE, QUARTER WINDOW RETAINER
62910KLOCK ASSY, QUARTER WINDOW, RH
IVORY,TRIM40,41
MD.GRAY,TRIM1#
62916APAD, SIDE WINDOW LOCK
62920LOCK ASSY, QUARTER WINDOW, LH
IVORY,TRIM40,41
MD.GRAY,TRIM1#
75603CMOULDING,QUARTER WINDOW,OUTSIDE FRONT RH
75604CMOULDING,QUARTER WINDOW,OUTSIDE FRONT LH
8511
9015960162
main90159-60162
9017906327
main90179-06327
9038511022
main90385-11022
91641C0614
main91641-C0614
17 parts on this diagram · 1 diagram in section
