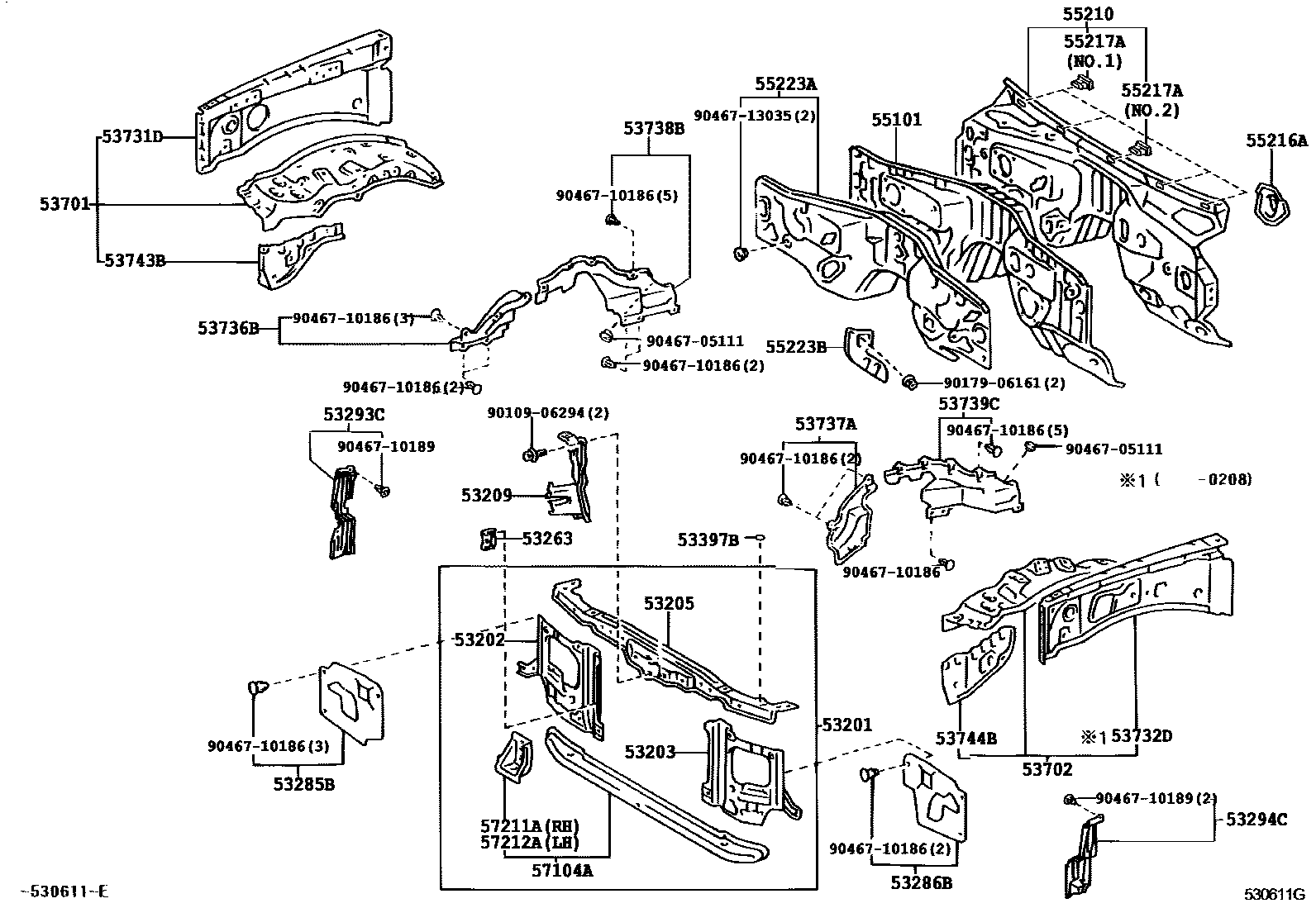

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-60050iUZJ100199801-200201

sub53201-60051

main53201-60051iUZJ100200201-200205

sub53201-60140

main53201-60072iUZJ100200208-200411

main53201-60140iUZJ100200205-200208

main53201-60180iUZJ100200412-200505

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-60060iUZJ100199801-200201

sub53202-60061

main53202-60061iUZJ100200201-200205

sub53202-60062

main53202-60062iUZJ100200205-200505

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-60090iUZJ100199801-200201

sub53203-60091

main53203-60091iUZJ100200201-200205

sub53203-60180

main53203-60092iUZJ100200208-200505

main53203-60180iUZJ100200205-200208

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-60010iUZJ100199801-200411

sub53205-60040

main53205-60040iUZJ100200412-200505

53209BRACE SUB-ASSY, HOOD LOCK

main53209-60050iUZJ100199801-200201

sub53209-60051

main53209-60051iUZJ100200201-200208

main53209-60090iUZJ100200208-200502

sub53209-60091

main53209-60091iUZJ100200503-200505

53263RETAINER, INTERCOOLER MOUNTING

main53263-60010iUZJ100199801-200208

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-60061iUZJ100200208-200505

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-60051iUZJ100200208-200505

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-60030iUZJ100200208-200505

main53293-60050iUZJ100200505

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-60040iUZJ100200208-200505

main53294-60060iUZJ100200505

53397BSEAL, RADIATOR, UPPER

main53397-60010iUZJ100200107-200505

53701APRON SUB-ASSY, FRONT FENDER, RH

main53710-60190iUZJ100199801-199906

sub53710-60191

sub91651-60614

main53710-60191iUZJ100199906-200204

sub53710-60210

main53710-60192iUZJ100200208-200411

sub53710-60193

main53710-60193iUZJ100200412-200505

main53710-60210iUZJ100200204-200208

sub53710-60192

53702APRON SUB-ASSY, FRONT FENDER, LH

main53720-60170iUZJ100199801-200204

sub53720-60180

main53720-60172iUZJ100200208-200302

sub53720-60173

main53720-60173iUZJ100200302-200409

sub53720-60175

main53720-60174iUZJ100200410-200411

sub53720-60175

main53720-60175iUZJ100200412-200606

sub53720-60176

main53720-60176iUZJ100200607

sub53720-60180

main53720-60180iUZJ100200204-200208

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53705-60040iUZJ100199801-199906

sub53705-60041

sub91651-60614

main53705-60041iUZJ100199906-200411

sub53705-60042

main53705-60042iUZJ100200412-200505

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53706-60030iUZJ100199801-200208

53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH

main53736-60080iUZJ100199801-200702

sub53736-60081

main53736-60081iUZJ100200703

53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH

main53737-60070iUZJ100199801-200505

53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH

main53738-60050iUZJ100199801-200702

sub53738-60051

main53738-60051iUZJ100200703

53739CSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-60040iUZJ100199801-200702

sub53739-60041

main53739-60041iUZJ100200703

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-60050iUZJ100199801-200505

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-60050iUZJ100199801-200606

55101PANEL SUB-ASSY, DASH

main55101-60A90iUZJ100200505

sub55101-60B00

main55101-60B00iUZJ100200505

W(ACTIVE HEIGHT CONTROL)

main55101-6D210iUZJ100199801-200208

W(REAR HEATER)

main55101-6D220iUZJ100199801-200208

main55101-6E450iUZJ100200208-200505

55210INSULATOR ASSY, DASH PANEL

main55210-60080iUZJ100199801-199910

sub55210-60081

main55210-60081iUZJ100199910-200204

sub55210-60082

main55210-60082iUZJ100200204-200308

sub55210-60083

main55210-60083iUZJ100200308-200411

sub55210-60084

main55210-60084iUZJ100200412-200505

55216APAD, DASH PANEL INSULATOR, NO.4

main55216-60010iUZJ100199801-200403

sub55216-60011

main55216-60011iUZJ100200403-200505

55217ARETAINER, DASH PANEL SILENCER

main55217-60010iUZJ100200412-200505

NO.1

main55217-60020iUZJ100200412-200505

NO.2

55223AINSULATOR, DASH PANEL, OUTER

main55223-60230iUZJ100199801-200204

sub55223-60231

main55223-60231iUZJ100200204-200410

sub55223-60232

main55223-60232iUZJ100200411-200505

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55225-60040iUZJ100199801-200505

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-60040iUZJ100199801-200505

57211ABRACKET, BODY MOUNTING, NO.1 RH

main57211-60010iUZJ100199801-200505

57212ABRACKET, BODY MOUNTING, NO.1 LH

main57212-60010iUZJ100199801-200505

9010906294

main90109-06294

9017906161

main90179-06161

9046705111

main90467-05111

9046710186

main90467-10186

9046710189

main90467-10189

9046713035

main90467-13035

36 parts on this diagram · 1 diagram in section
