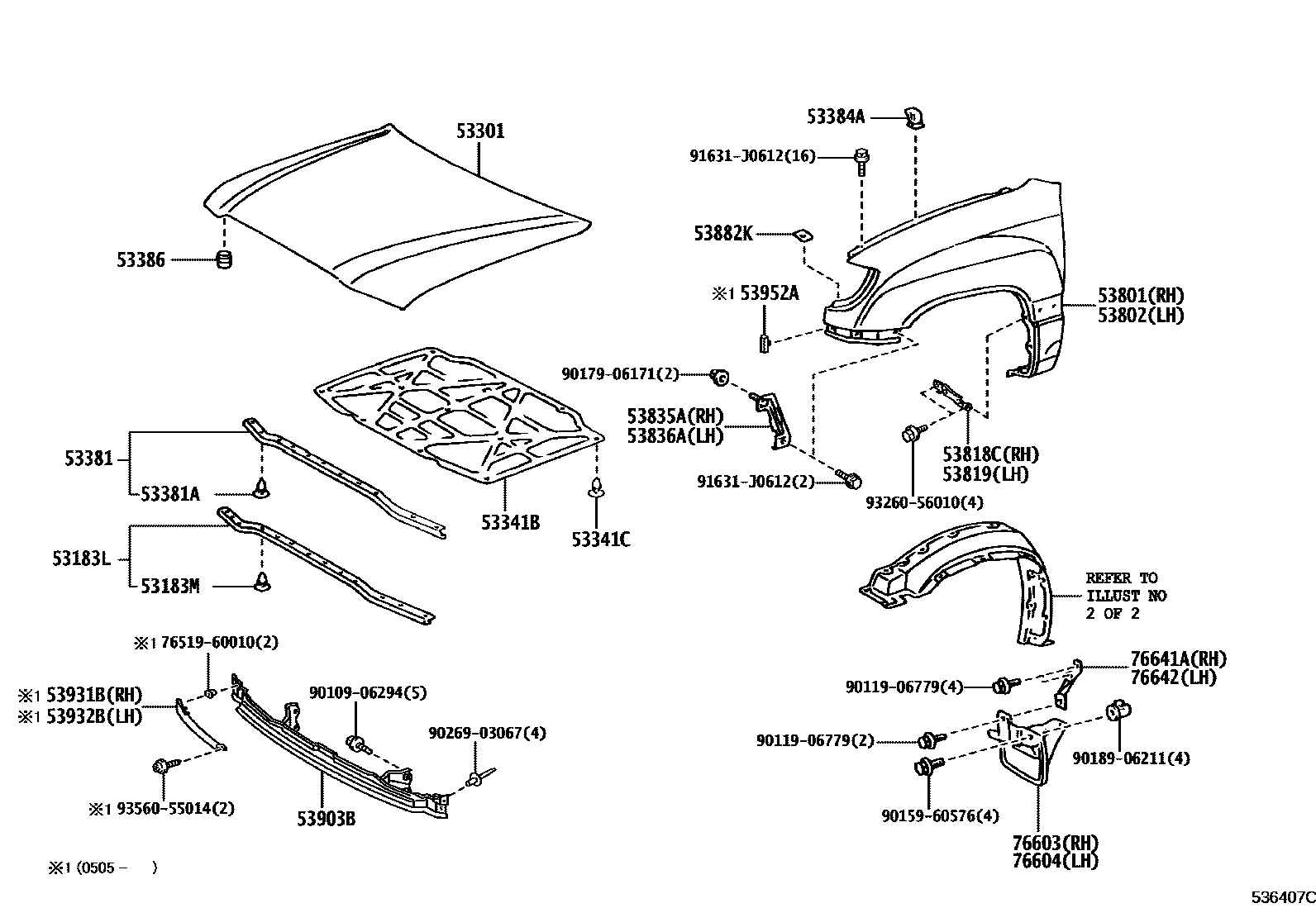

HOOD & FRONT FENDER
53183MCLIP(FOR HEADLAMP COVER SEAL)
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53386BUMPER, HOOD, REAR
53801FENDER SUB-ASSY, FRONT RH
W(SIDE PROTECTION MOULDING)
W(SIDE PROTECTION MOULDING)
sub53811-6A021
sub53801-6A010
53802FENDER SUB-ASSY, FRONT LH
W(SIDE PROTECTION MOULDING)
W(SIDE PROTECTION MOULDING)
sub53812-6A121
sub53802-6A220
53818CREINFORCEMENT, FRONT FENDER, REAR RH
53819REINFORCEMENT, FRONT FENDER, REAR LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53882KSEAL, FRONT FENDER
53903BPANEL SUB-ASSY, FRONT END
53931BPANEL, FRONT END, RH
53932BPANEL, FRONT END, LH
53952ASUPPORT, FRONT END PANEL, LWR
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76641ABRACKET, FRONT MUDGUARD
76642BRACKET, FRONT FENDER PANEL MUDGUARD, LH
7651960010CLIP, FRONT END PANEL MOULDING, LH
main76519-60010
9010906294
main90109-06294
9011906779
main90119-06779
9015960576
main90159-60576
9017906171
main90179-06171
9018906211
main90189-06211
9026903067
main90269-03067
91631J0612
main91631-J0612
9326056010
main93260-56010
9356055014
main93560-55014
34 parts on this diagram · 2 diagrams in section
