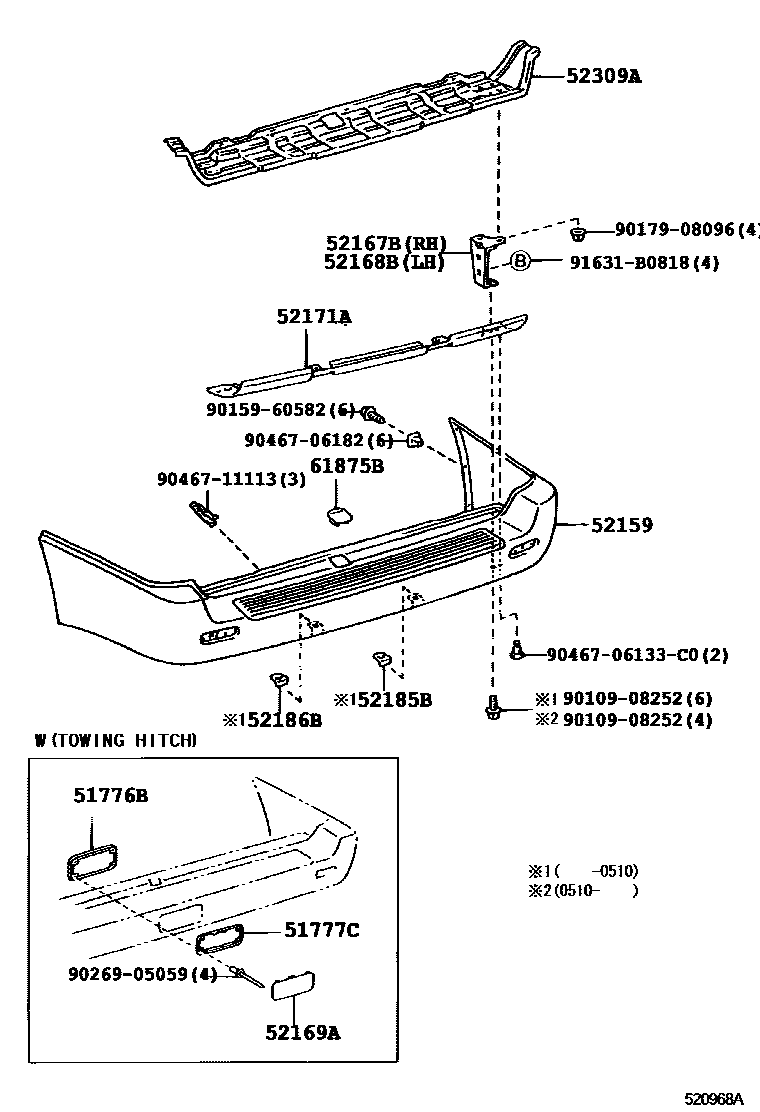

REAR BUMPER & BUMPER STAY

51776BCOVER, REAR STEP, NO.2

main51776-60020iUZJ100200208-200210

51777CSTAY, STEP PLATE

main51777-60040-B1iUZJ100200208-200210

GRAY ME.,1D2

sub51777-60900

sub51777-60040

main51777-60040-D0iUZJ100200208-200210

DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4

sub51777-60900

sub51777-60040

main51777-60040-E0iUZJ100200208-200210

LT.GRAYISH BEIGE ME.,056 ,4R3

sub51777-60900

sub51777-60040

52159COVER, REAR BUMPER

main52159-60903iUZJ100199801-199808

sub52159-60907

main52159-60907iUZJ100199808-200708

sub52159-6A914

main52159-60910iUZJ100200208-200210

sub52159-6A912

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-60030iUZJ100199801-200505

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-60030iUZJ100199801-200505

52169ASUPPORT, REAR BUMPER SIDE, NO.3

main52169-60060-B1iUZJ100200208-200210

GRAY ME.,1D2

sub52169-60902

main52169-60060-D0iUZJ100200208-200210

DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4

sub52169-60902

main52169-60060-E0iUZJ100200208-200210

LT.GRAYISH BEIGE ME.,056 ,4R3

sub52169-60902

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-60010iUZJ100199808-200510

main52171-60070iUZJ100200510

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60080iUZJ100199801-200510

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-60080iUZJ100199801-200510

52309AREINFORCEMENT SUB-ASSY, BACK STEP

main52309-60010iUZJ100199801-200505

61875BLID, SPARE WHEEL CARRIER, NO.1

main61875-60020-B0iUZJ100200008-200505

GRAY ME.,1D2

sub61875-60020

main61875-60020-B0iUZJ100200505-200708

GRAY ME.,056 ,1D2 ,1F7 ,4R3

sub61875-60020

main61875-60020-B1iUZJ100200505-200708

GRAY ME.,8R3

sub61875-60020

main61875-60020-D0iUZJ100200505-200708

DK. GRAY M.,1E9 ,202 ,3Q2

sub61875-60020

main61875-60020-D0iUZJ100200208-200505

DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4

sub61875-60020

main61875-60020-E0iUZJ100199801-199909

LT. GRAYISH BEIGE ME,056 ,1B1

sub61875-60020

main61875-60020-E1iUZJ100199909-200208

LT.GRAYISH BEIGE ME.,056 ,1B1

sub61875-60020

main61875-60020-E1iUZJ100200208-200505

LT.GRAYISH BEIGE ME.,056 ,4R3

sub61875-60020

main61875-60020-H0iUZJ100199801-199909

MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H1iUZJ100199801-199909

DK. TAUPE ME.,3N2 ,4P3

sub61875-60020

main61875-60020-H2iUZJ100200008-200208

MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H2iUZJ100199909-200008

MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H3iUZJ100199909-200008

DK.TAUPE ME.,3N2 ,4P3

sub61875-60020

9010908252

main90109-08252

9015960582

main90159-60582

9017908096

main90179-08096

9026905059

main90269-05059

9046706133C0

main90467-06133C0

9046706182

main90467-06182

9046711113

main90467-11113

91631B0818

main91631-B0818

19 parts on this diagram · 1 diagram in section
