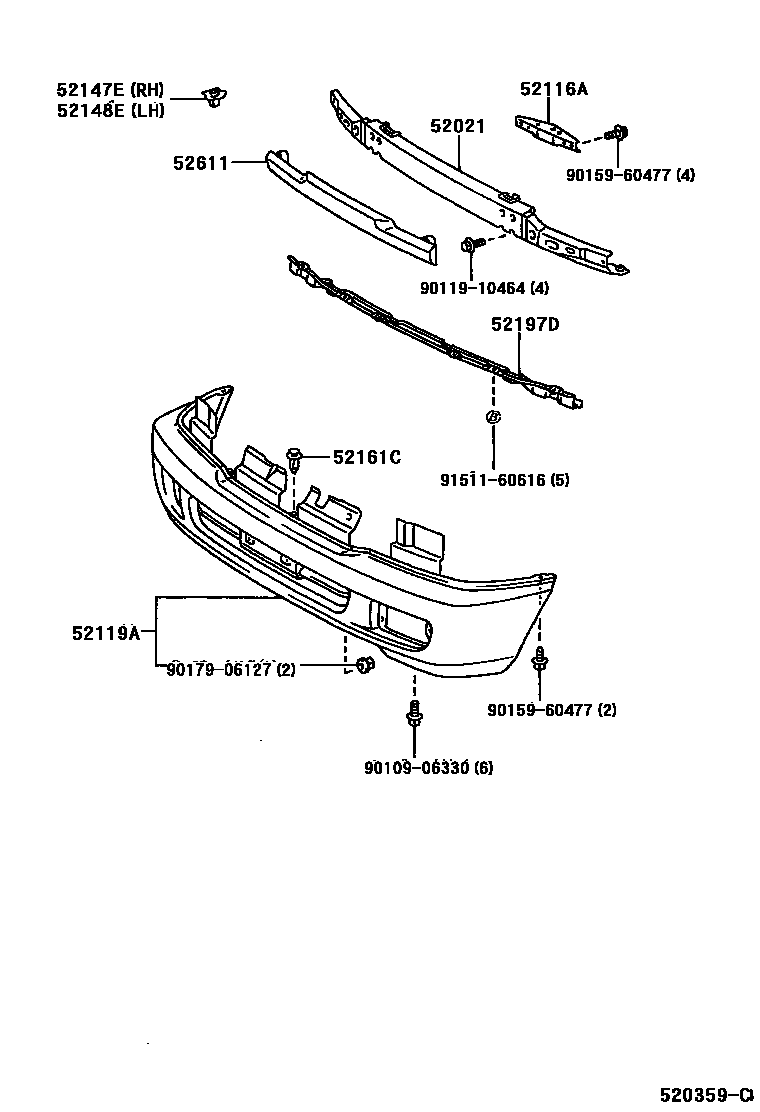

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60020iUZJ100199801-199808

sub52110-60010

sub52110-60020

main52021-60120iUZJ100200208-200505

main52110-60010iUZJ100199808-200208

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60110iUZJ100199802-200208

52119ACOVER, FRONT BUMPER

main52119-60904iUZJ100199801-200208

sub52119-6B920

main52119-60918iUZJ100200208-200708

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-60050iUZJ100199801-200505

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-60050iUZJ100199801-200505

52161CPIECE, FRONT BUMPER

main52161-16010iUZJ100199801-200708

sub52161-0K040

52197DREINFORCEMENT, FRONT BUMPER ARM

main52197-60010iUZJ100199808-200208

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60010iUZJ100199801-200208

main52611-60020iUZJ100200208-200505

9010906330

main90109-06330

9011910464

main90119-10464

9015960477

main90159-60477

9017906127

main90179-06127

9151160616

main91511-60616

13 parts on this diagram · 3 diagrams in section
