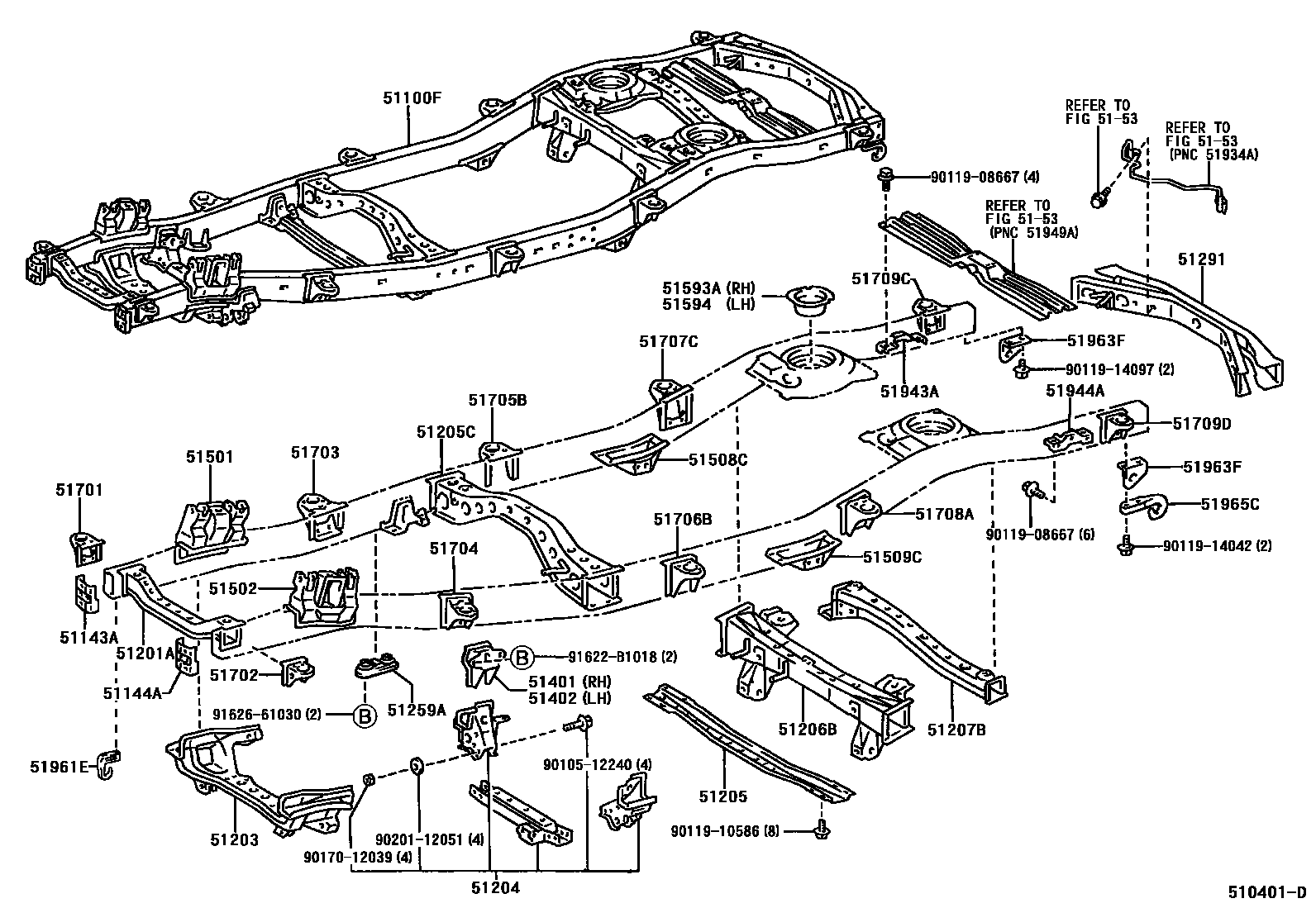

FRAME
51100FFRAME SUB-ASSY
MEXICO SPEC
W(ACTIVE HEIGHT CONTROL)
MEXICO SPEC & W(ACTIVE HEIGHT CONTROL)
51143AREINFORCEMENT, SIDE RAIL, FRONT RH
51144AREINFORCEMENT, SIDE RAIL, FRONT LH
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7
51259AWEIGHT, NO.4 CROSSMEMBER DUMPER
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51508CBRACKET SUB-ASSY, LOWER CONTROL LINK, RH
51509CBRACKET SUB-ASSY, LOWER CONTROL LINK, LH
5153
51593ABRACKET, REAR SPRING BUMPER, RH
51594BRACKET, REAR SPRING BUMPER, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51709CBRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH
51709DBRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH
51943ABRACKET, SPARE WHEEL CARRIER
51944ABRACKET, SPARE WHEEL CARRIER, NO.2
51961EHOOK, FRONT
51965CHOOK, REAR
9010512240
main90105-12240
9011908667
main90119-08667
9011910586
main90119-10586
9011914042
main90119-14042
9011914097
main90119-14097
9017012039
main90170-12039
9020112051
main90201-12051
91622B1018
main91622-B1018
9162661030
main91626-61030
45 parts on this diagram · 1 diagram in section
