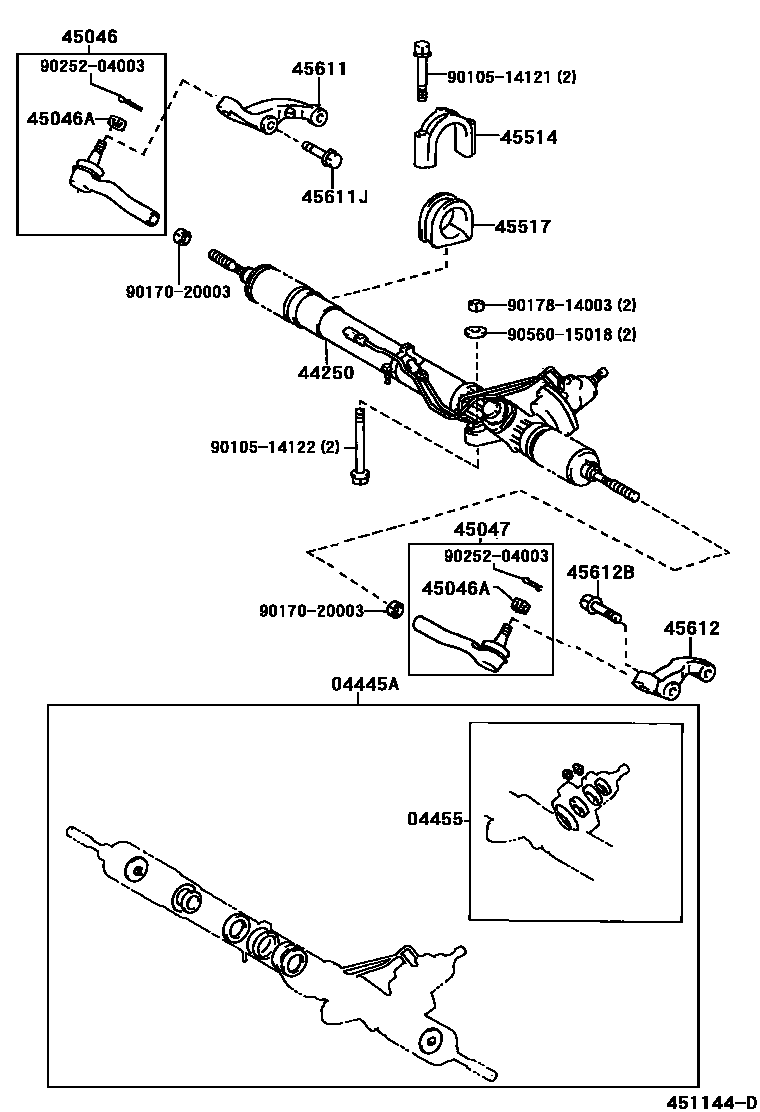

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-60080iUZJ100199801-200208

main04445-60090iUZJ100200208-200505

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-60050iUZJ100199801-200505

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-60050iUZJ100199801-200208

main44250-60100iUZJ100200208-200209

45046END SUB-ASSY, TIE ROD, RH

main45046-69195iUZJ100199801-200208

main45046-69205iUZJ100200208-200505

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16006iUZJ100199801-200505

45047END SUB-ASSY, TIE ROD, LH

main45047-69100iUZJ100199801-200208

main45047-69115iUZJ100200208-200505

45514BRACKET, STEERING RACK HOUSING, NO.1

main45515-60010iUZJ100199801-200208

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-60010iUZJ100199801-200208

45611ARM, STEERING KNUCKLE, RH

main45611-60100iUZJ100199801-200205

sub45611-60120

main45611-60120iUZJ100200205-200505

45611JBOLT(FOR STEERING KNUCKLE ARM RH)

main90105-14043iUZJ100199801-200505

45612ARM, STEERING KNUCKLE, LH

main45612-60100iUZJ100199801-200205

sub45612-60120

main45612-60120iUZJ100200205-200505

45612BBOLT(FOR STEERING KNUCKLE ARM LH)

main90105-14043iUZJ100199801-200505

9010514121

main90105-14121

9010514122

main90105-14122

9017020003

main90170-20003

9017814003

main90178-14003

9025204003

main90252-04003

9056015018

main90560-15018

18 parts on this diagram · 4 diagrams in section
