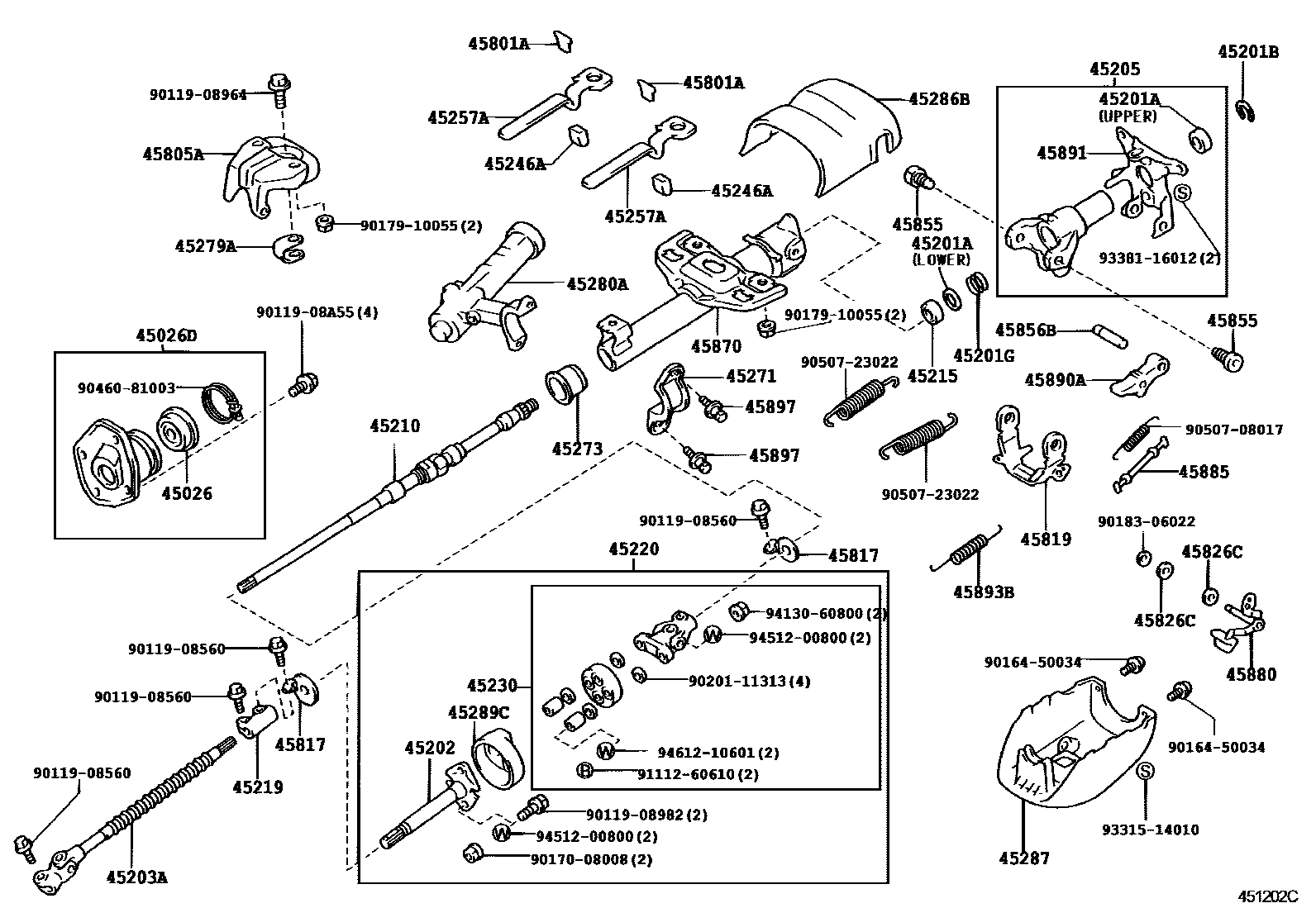

STEERING COLUMN & SHAFT

0001 1MANUAL TILT STEERING 0002 1POWER TILT STEERING 0003 1POWER TILT STEERING 0004 1

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-60010iUZJ100199801-200505

45026DCOVER SUB-ASSY, STEERING COLUMN HOLE

main45025-60100iUZJ100199801-200505

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iUZJ100199801-200505

LOWER

main90363-18009iUZJ100199801-200505

UPPER

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iUZJ100199801-200708

T=1.20,UPPER

main90905-20003iUZJ100199801-200505

T=0.5,LOWER

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iUZJ100199801-200505

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-60100iUZJ100199801-200505

45203ASHAFT, STEERING INTERMEDIATE, NO.2

main45203-60090iUZJ100199801-200505

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-60170iUZJ100199801-200208

45210SHAFT ASSY, STEERING MAIN

main45210-60090iUZJ100199801-200208

W(MANUAL TILT STEERING)

sub45210-60091

main45210-60100iUZJ100199801-200201

W(POWER TILT STEERING)

sub45210-60101

main45210-60101iUZJ100200201-200208

W(POWER TILT STEERING)

main45210-60101iUZJ100200208-200708

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iUZJ100199801-200505

45219YOKE, STEERING SLIDING

main45219-60080iUZJ100199801-200505

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60110iUZJ100199801-200505

45230COUPLING ASSY, FLEXIBLE

main45230-60030iUZJ100199801-200505

45246AGUIDE, STEERING ENERGY ABSORBING PLATE

main45246-12110iUZJ100199801-200006

main45246-12110iUZJ100200006-200208

W(MANUAL TILT STEERING)

main45246-50040iUZJ100200006-200208

W(POWER TILT STEERING)

main45246-50040iUZJ100200208-200505

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-12070iUZJ100199801-200505

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iUZJ100199801-200208

W(MANUAL TILT STEERING)

main45271-60030iUZJ100199801-200208

W(POWER TILT STEERING)

main45271-60030iUZJ100200208-200505

45273BUSH, STEERING MAIN SHAFT

main45273-33030iUZJ100199801-200208

45279AATTACHMENT, STEERING COLUMN TUBE, LWR

main45279-33030iUZJ100199801-200505

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60460iUZJ100199801-200208

W(MANUAL TILT STEERING)

main45280-60510iUZJ100199801-200208

W(POWER TILT STEERING)

main45280-60610iUZJ100200208-200505

45286BCOVER, STEERING COLUMN, UPR

main45286-60340-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

sub45286-60340

main45286-60340-B1iUZJ100200208-200708

DK.GRAY,TRIM1#

sub45286-60340

main45286-60340-E0iUZJ100199801-200208

OAK,TRIM4#

sub45286-60340

main45286-60340-E1iUZJ100200208-200708

SANDAL WOOD,TRIM0#

sub45286-60340

45287COVER, STEERING COLUMN, LWR

main45287-60330-B0iUZJ100199801-200202

W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1#

sub45287-60331

main45287-60330-E0iUZJ100199801-200202

W(MANUAL TILT STEERING),OAK,TRIM40,41

sub45287-60331

main45287-60331-B0iUZJ100200202-200208

W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1#

sub45287-60331

main45287-60331-E0iUZJ100200202-200208

W(MANUAL TILT STEERING),OAK,TRIM40,41

sub45287-60331

main45287-60340-B0iUZJ100199801-200202

W(POWER TILT STEERING),SHADOW GRAY,TRIM1#

sub45287-60341

main45287-60340-E0iUZJ100199801-200202

W(POWER TILT STEERING),OAK,TRIM40,41

sub45287-60341

main45287-60341-B0iUZJ100200202-200208

W(POWER TILT STEERING),SHADOW GRAY,TRIM1#

sub45287-60341

main45287-60341-B1iUZJ100200208-200708

DK.GRAY,TRIM1#

sub45287-60341

main45287-60341-E0iUZJ100200202-200208

W(POWER TILT STEERING),OAK,TRIM40,41

sub45287-60341

main45287-60341-E1iUZJ100200208-200708

SANDAL WOOD,TRIM0#

sub45287-60341

45289CCOVER, STEERING COLUMN, LWR NO.2

main45289-60020iUZJ100199801-200505

NO.1

main45289-60030iUZJ100199801-199806

NO.2

sub45289-60031

main45289-60031iUZJ100199806-200505

NO.2

45801APIN SUB-ASSY, STEERING ENERGY ABSORBING

main45875-12010iUZJ100199801-200505

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-60010iUZJ100199801-200505

45817STOPPER, STEERING SHAFT THRUST

main45817-60020iUZJ100200208-200708

NO.1

main45817-60020iUZJ100199801-200208

main45817-60040iUZJ100200208-200708

NO.2

45819RETAINER, TILT LEVER

main45819-60010iUZJ100199801-200208

45826CBUSH(FOR STEERING TILT LEVER)

main90389-08120iUZJ100199801-200208

45855BOLT, TILT STEERING, NO.1

main45855-35010iUZJ100199801-200208

OD=10

main45855-60010iUZJ100199801-200505

OD=11.993-11.979

45856BSHAFT, T1LT STEERING, NO.2

main45856-42010iUZJ100199801-200208

W(MANUAL TILT STEERING)

main45856-60010iUZJ100200208-200505

main45856-60010iUZJ100199801-200208

W(POWER TILT STEERING)

45870TUBE ASSY, STEERING COLUMN

main45870-60130iUZJ100199801-200208

W(MANUAL TILT STEERING)

main45870-60160iUZJ100199801-200208

W(POWER TILT STEERING)

main45870-60160iUZJ100200208-200505

45880LEVER ASSY, STEERING TILT

main45880-60030iUZJ100199801-200208

45885LINK, TILT LEVER

main45885-35010iUZJ100199801-200208

45890APAWL ASSY, TILT STEERING

main45890-35010iUZJ100199801-200208

45891BRACKET, TURN SIGNAL

main45891-60030iUZJ100199801-200208

W(MANUAL TILT STEERING)

main45891-60040iUZJ100199801-200208

W(POWER TILT STEERING)

main45891-60040iUZJ100200208-200505

45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

main90905-07013iUZJ100199801-200208

45897BOLT, STEERING LOCK SET

main45897-12020iUZJ100199812-200505

main45897-60010iUZJ100199801-199812

sub45897-12020

9011908560

main90119-08560

9011908964

main90119-08964

9011908982

main90119-08982

9011908A55

main90119-08A55

9016450034

main90164-50034

9017008008

main90170-08008

9017910055

main90179-10055

9018306022

main90183-06022

9020111313

main90201-11313

9046081003

main90460-81003

9050708017

main90507-08017

9050723022

main90507-23022

9111260610

main91112-60610

9331514010

main93315-14010

9338116012

main93381-16012

9413060800

main94130-60800

9451200800

main94512-00800

9461210601

main94612-10601

54 parts on this diagram · 4 diagrams in section
