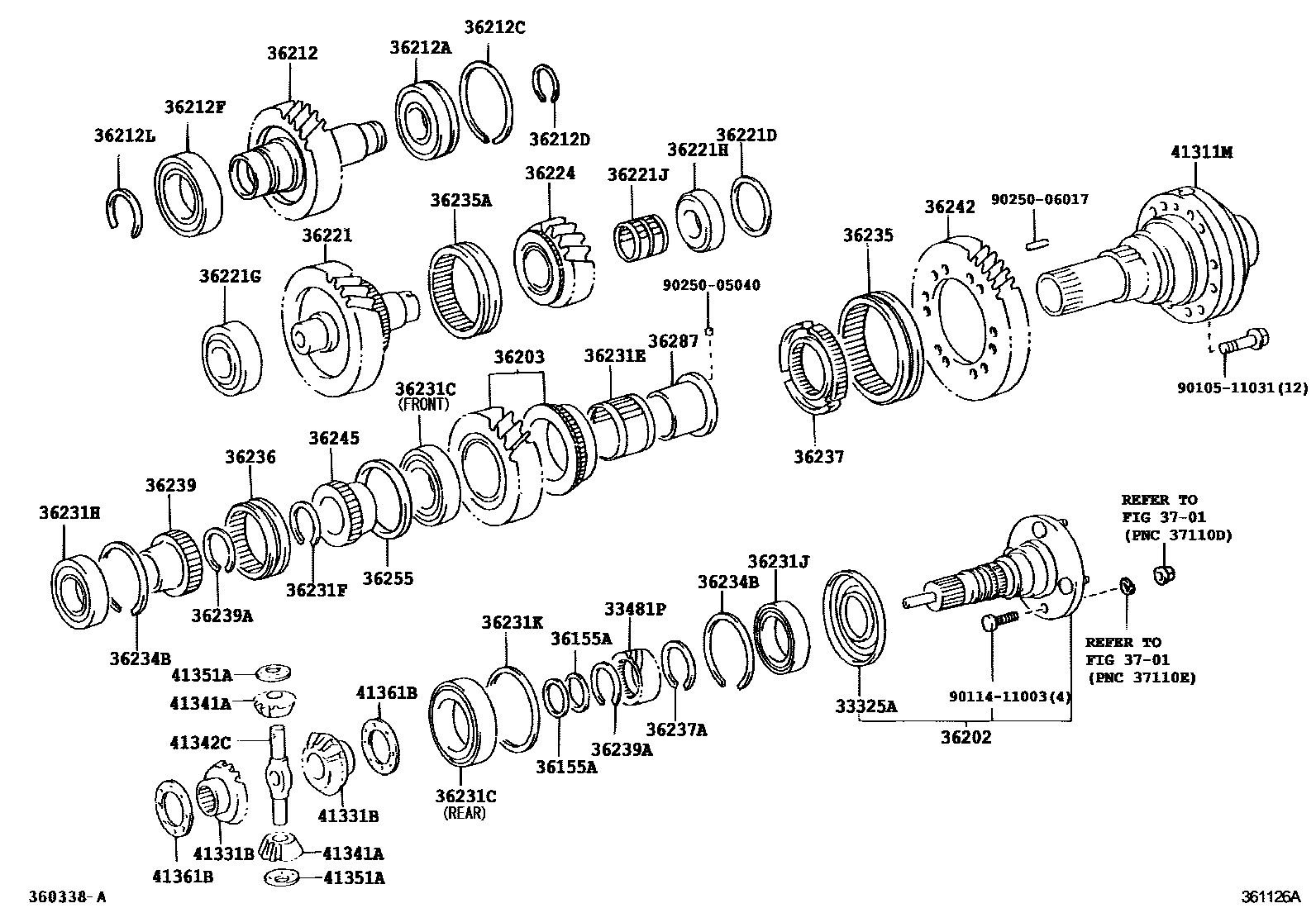

TRANSFER GEAR
33325ADEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=11,MARK 11:31-33
N=12,MARK 12:31-33
36155ARING, TRANSFER OIL SEAL
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
36212GEAR, TRANSFER INPUT
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
T=1.65
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=2.0,MARK A
T=2.1,MARK B
T=2.2,MARK C
T=2.3,MARK D
T=2.4,MARK E
36212FBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)
36212LRING, SHAFT SNAP
T=2.90-2.95,MARK A
T=2.95-3.00,MARK B
T=3.00-3.05,MARK C
T=3.05-3.10,MARK D
T=3.10-3.15,MARK E
T=3.15-3.20,MARK F
36221GEAR, TRANSFER IDLER
36221DWASHER, PLATE(FOR TRANSFER IDLER GEAR)
T=0.29-0.31,MARK 2
T=0.44-0.46,MARK 3
T=2.39-2.41,MARK 4
T=2.59-2.61,MARK 5
T=2.79-2.81,MARK 6
T=2.99-3.01,MARK 7
T=3.19-3.21,MARK 8
T=3.39-3.41,MARK 9
T=3.59-3.61,MARK 10
T=3.79-3.81,MARK 11
T=3.99-4.01,MARK 12
T=0.55,MARK 13
36221GBEARING (FOR TRANSFER ILDER GEAR), FRONT
36221HBEARING (FOR TRANSFER ILDER GEAR), REAR
36221JBEARING (FOR TRANSFER IDLER GEAR LOWER)
36224GEAR, TRANSFER IDLER LOWER
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
FRONT
REAR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=2.0,MARK A
T=2.1,MARK B
T=2.2,MARK C
T=2.3,MARK D
T=2.4,MARK E
T=2.5,MARK F
T=2.6,MARK G
T=2.7,MARK H
T=2.8,MARK J
T=1.80,MARK A
T=1.95,MARK B
36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)
sub90363-40083
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231KWASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE)
T=2.39-2.41,MARK L
T=2.59-2.61,MARK M
T=0.27-0.33,MARK B
T=0.415-0.485,MARK C
T=0.99-1.01,MARK D
T=1.19-1.21,MARK E
T=1.39-1.41,MARK F
T=1.59-1.61,MARK G
T=1.79-1.81,MARK H
T=1.99-2.01,MARK J
T=2.19-2.21,MARK K
T=0.55,MARK N
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
T=1.7,MARK A
T=1.8,MARK B
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36235ASLEEVE (FOR TRANSFER IDLER GEAR)
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
T=1.95,MARK 1
T=2.05,MARK 2
T=2.15,MARK 3
T=2.25,MARK 4
36239HUB, TRANSFER DRIVE CLUTCH
36239ARING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB)
T=1.8,MARK A
T=1.9,MARK B
T=2.0,MARK C
T=2.1,MARK D
T=2.2,MARK E
T=1.5
36242GEAR, TRANSFER LOW
36245PIECE, TRANSFER FRONT DRIVE GEAR
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36287BUSH, TRANSFER HIGH SPEED OUTPUT GEAR
3701
41311MCASE, CENTER DIFFERENTIAL
41331BGEAR, CENTER DIFFERENTIAL SIDE
41341APINION, CENTER DIFFERENTIAL
41342CSHAFT, CENTER DIFFERENTIAL PINION
41351AWASHER, CENTER DIFFERENTIAL PINION TRUST
41361BWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.625
T=1.700
T=1.775
T=1.850
T=1.925
T=2.000
T=2.075
T=2.1500
T=2.225
T=2.300
T=2.375
T=2.450
T=2.525
T=2.600
T=2.675
T=2.750
T=2.825
T=2.900
T=2.975
T=3.050
T=3.125
9010511031
main90105-11031
9011411003
main90114-11003
9025005040
main90250-05040
9025006017
main90250-06017
46 parts on this diagram · 1 diagram in section
