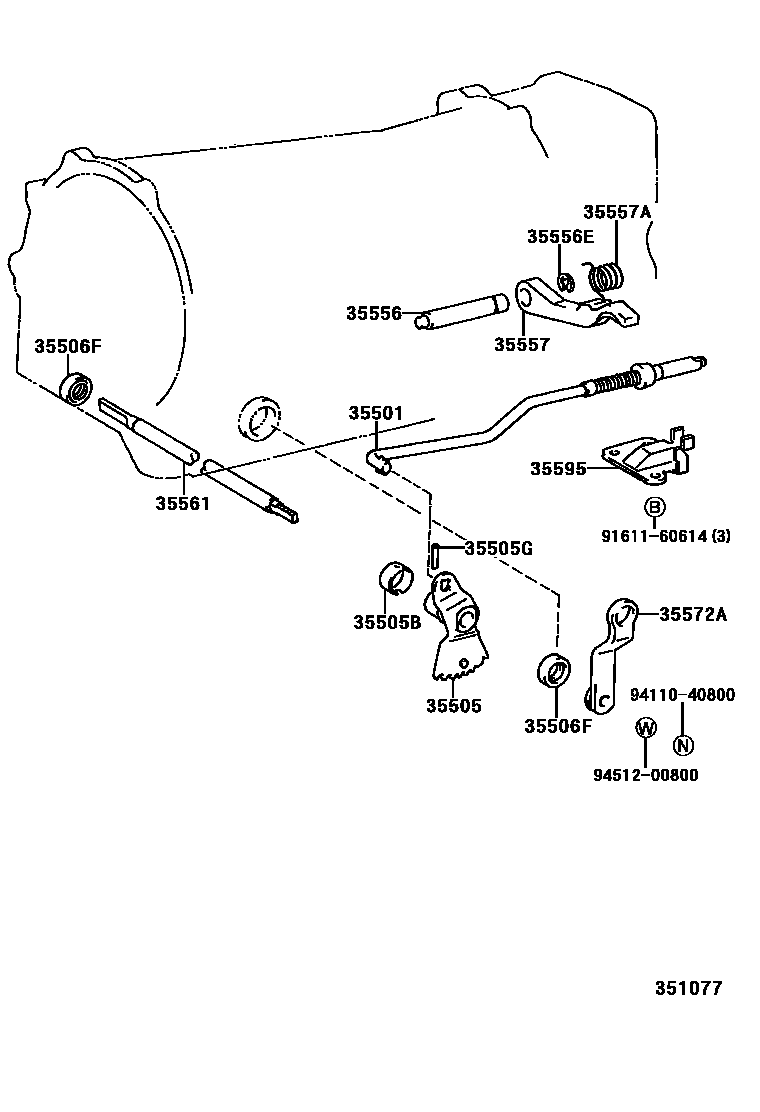

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A343F 0002 1A750F

35501ROD SUB-ASSY, PARKING LOCK

main35501-60010iUZJ100199801-200208

main35501-60020iUZJ100200208-200505

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30021iUZJ100199801-200208

main35505-60050iUZJ100200208-200505

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iUZJ100199801-200208

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iUZJ100199801-200208

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iUZJ100199801-200505

35556SHAFT, PARKING LOCK PAWL

main35556-30020iUZJ100199801-200208

main35556-60020iUZJ100200208-200505

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iUZJ100199801-200505

35557PAWL, PARKING LOCK

main35557-60020iUZJ100199801-200208

main35557-60040iUZJ100200208-200505

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iUZJ100199801-200208

main90949-03123iUZJ100200208-200505

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iUZJ100199801-200208

main35561-60030iUZJ100200208-200505

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-60060iUZJ100199801-200208

35595BRACKET, PARKING LOCK PAWL

main35595-60010iUZJ100199801-200208

main35595-60030iUZJ100200208-200505

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

15 parts on this diagram · 2 diagrams in section
