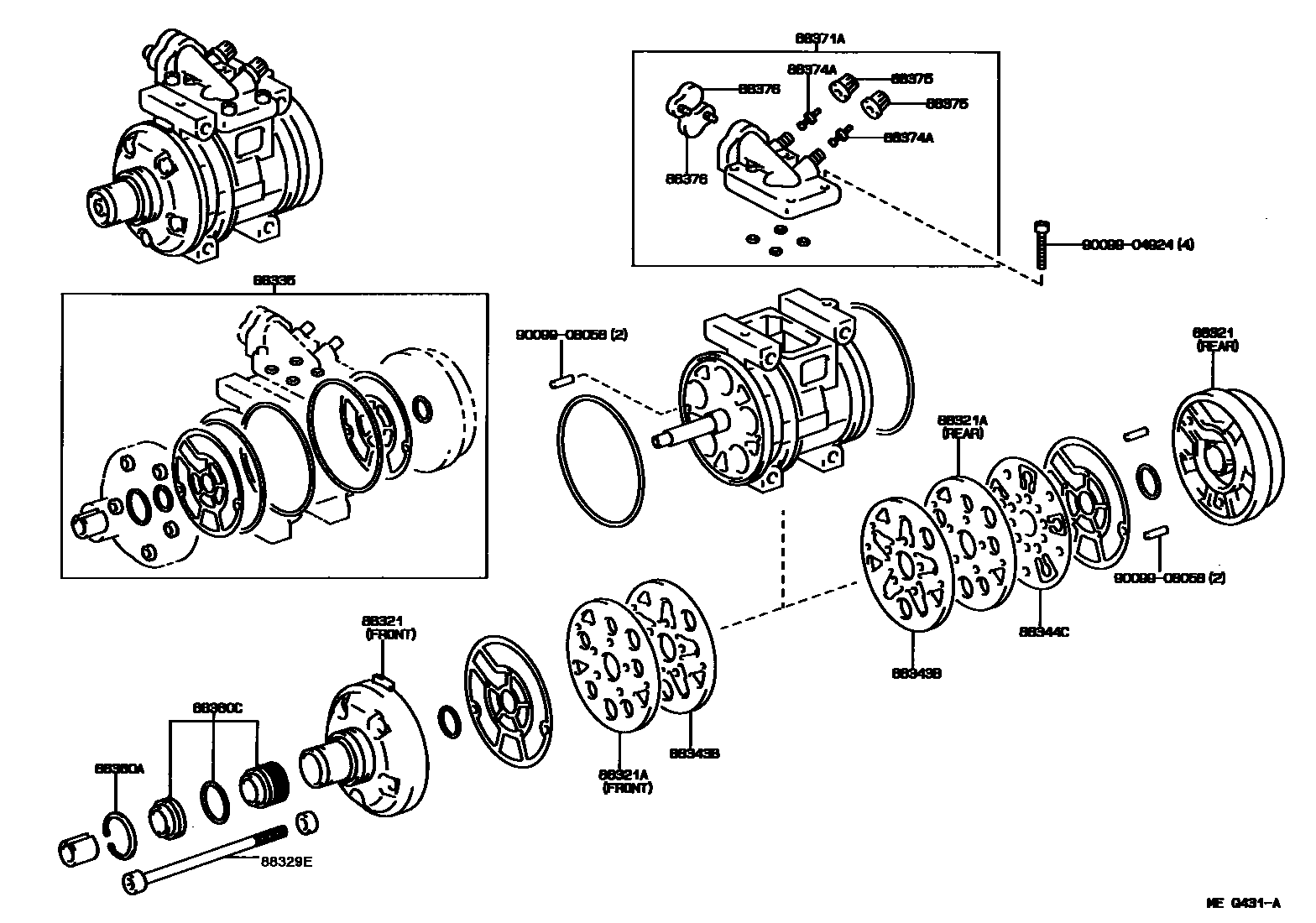

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88321HEAD, COOLER COMPRESSOR CYLINDER

main88321-14021iFJ80199001-199208

FRONT

main88321-32010iFZJ80199208-199801

FRONT

main88322-14020iFJ80199001-199208

REAR

main88322-32040iFZJ80199208-199801

REAR

88321APLATE SUB-ASSY, VALVE

main88341-14021iFJ80199001-199208

FRONT

main88341-22010iFZJ80199208-199801

FRONT

main88342-14021iFJ80199001-199208

REAR

main88342-22010iFZJ80199208-199801

REAR

88329EBOLT, COMPRESSOR, NO.1

main90099-04958iFJ80,FZJ80199001-199801

88335GASKET KIT, OVERHAUL

main88335-14010iFJ80,FZJ80199001-199305

sub88335-2B030

main88335-2B010iFZJ80199305-199501

sub88335-2B030

main88335-2B030iFZJ80199501-199801

88343BREED, SUCTION VALVE

main88343-14020iFJ80,FZJ80199001-199801

88344CREED, DISCHARGE VALVE

main88344-14021iFJ80199001-199208

main88344-22010iFZJ80199208-199801

88360ARING, COMPRESSOR SEAL PLATE SNAP

main90096-90022iFJ80,FZJ80199001-199801

88360CSEAL ASSY, SHAFT

main88360-14030iFJ80,FZJ80199001-199305

sub88360-2B020

main88360-2B020iFZJ80199305-199801

88371AVALVE, SUCTION

main88371-60190iFJ80199001-199208

main88371-60270iFZJ80199208-199305

main88371-60280iFZJ80199305-199801

88374AVALVE, SERVICE

main88374-12020iFJ80199001-199208

sub88374-20020

88375CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-20010iFJ80199001-199208

DISCHARGE

main88375-30270iFJ80199001-199208

SUCTION

88376CAP, BLIND

main88376-22010iFJ80199001-199208

SUCTION

main88376-22020iFJ80199001-199208

DISCHARGE

9009904924

main90099-04924

9009908058

main90099-08058

14 parts on this diagram · 3 diagrams in section
