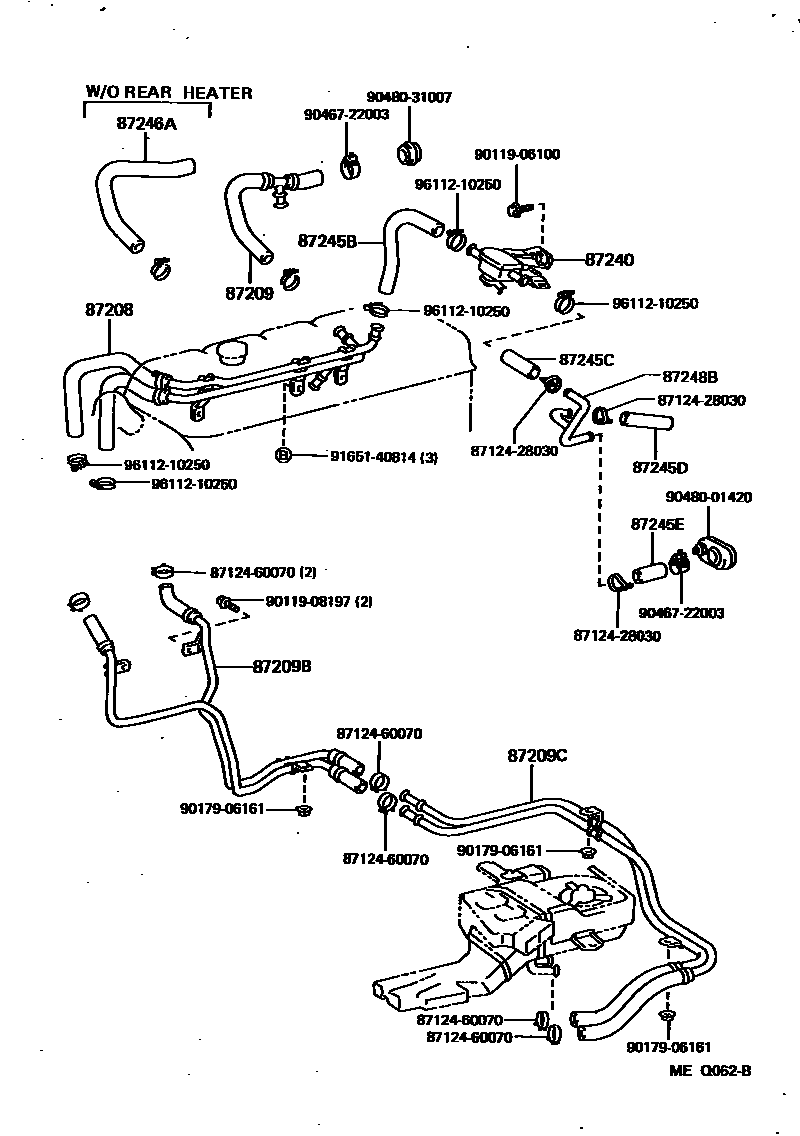

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-60290iFZJ80199208-199404

sub87208-60291

main87208-60291iFZJ80199404-199801

main87209-60130iFJ80199001-199208

87209HOSE SUB-ASSY, WATER

main87209-60160iFJ80199001-199208

main87209-60290iFZJ80199208-199801

87209BHOSE SUB-ASSY, WATER, B

main87209-60140iFJ80199001-199208

main87209-60300iFZJ80199208-199401

sub87209-60301

main87209-60301iFZJ80199401-199801

87209CHOSE SUB-ASSY, WATER, C

main87209-60120iFJ80199001-199208

main87209-60440iFZJ80199208-199401

sub87209-60441

main87209-60441iFZJ80199401-199801

87240VALVE ASSY, HEATER WATER

main87240-60070iFJ80199001-199201

main87240-60140iFJ80,FZJ80199201-199501

main87240-60170iFZJ80199501-199801

87245BHOSE, HEATER WATER, INLET B

main87245-60100iFJ80199001-199208

main87245-60480iFZJ80199208-199801

87245CHOSE, HEATER WATER ,INLET C

main99556-30100iFZJ80199208-199801

*H,L=60

main99556-30100iFZJ80199501-199801

*H,L=95

87245DHOSE, HEATER WATER, INLET D

main99556-30100iFZJ80199208-199801

*H,L=50

main99556-30100iFZJ80199208-199801

*H,L=60

87245EHOSE, HEATER WATER, INLET E

main99556-30100iFZJ80199208-199801

*H,L=65

87246AHOSE, HEATER WATER, OUTLET A

main87245-60130iFJ80199001-199208

main87245-60310iFZJ80199208-199801

W/O COLD SPEC

main87245-60350iFZJ80199208-199801

87248BPIPE, HEATER WATER INLET, B

main87208-60260iFZJ80199208-199801

W/O COLD SPEC

main87208-60270iFZJ80199208-199801

8712428030CLAMP, HEATER

main87124-28030

8712460070CLAMP, HEATER

main87124-60070

9011906100

main90119-06100

9011908197

main90119-08197

9017906161

main90179-06161

9046722003

main90467-22003

9048001420

main90480-01420

9048031007

main90480-31007

9165140814

main91651-40814

9611210250

main96112-10250

21 parts on this diagram · 3 diagrams in section
