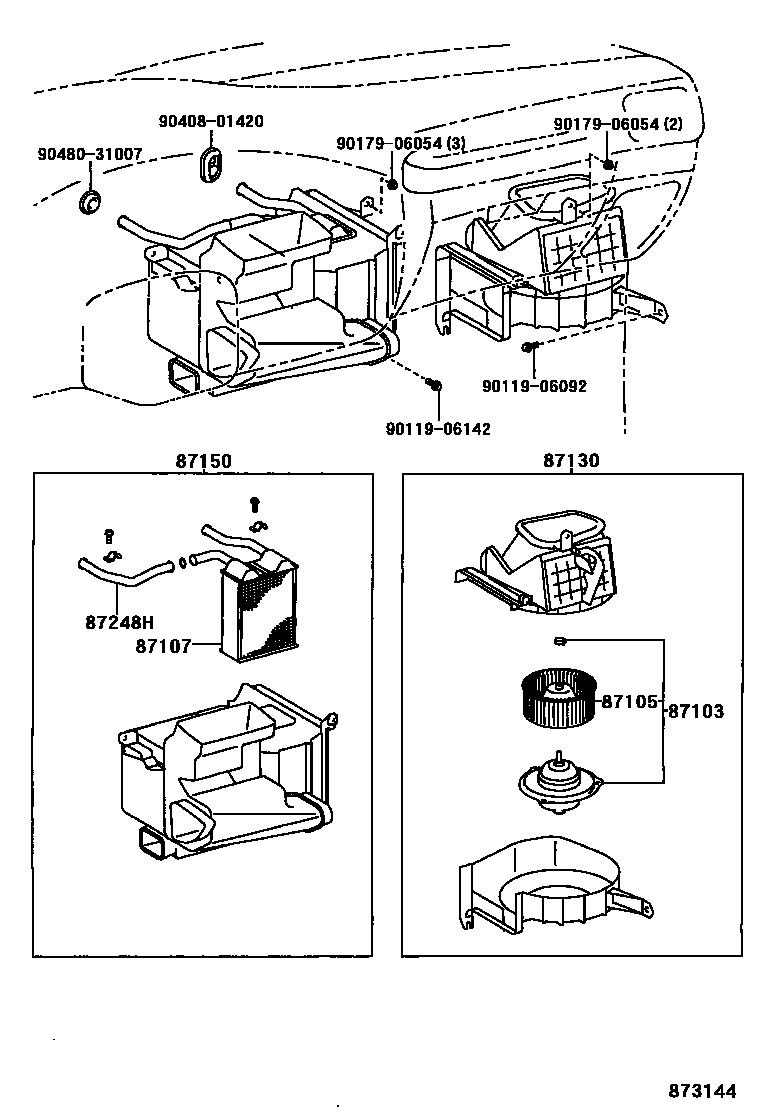

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-26020iFJ80,FZJ80199001-199801

main87103-60150iFJ80,FZJ80199001-199801

W(AIR CONDITIONER)

sub87103-60140

87105FAN SUB-ASSY, HEATER BLOWER

main87105-20110iFJ80,FZJ80199001-199801

main87134-30050iFJ80199001-199208

W(AIR CONDITIONER)

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-60130iFJ80,FZJ80199001-199608

main87107-60270iFZJ80199608-199801

87130BLOWER ASSY, HEATER, FRONT

main87130-60210iFJ80199001-199208

W(AIR CONDITIONER)

sub87130-60250

main87130-60230iFJ80199001-199208

main87130-60240iFZJ80199208-199801

main87130-60320iFZJ80199208-199801

W(AIR CONDITIONER)

sub87130-60260

87150RADIATOR ASSY, HEATER

main87150-60170iFJ80199001-199208

sub87150-60200

main87150-60330iFZJ80199208-199501

main87150-60331iFZJ80199501-199608

main87150-60640iFZJ80199608-199801

87248HPIPE, HEATER WATER INLET

main87248-60420iFJ80199001-199208

main87248-60430iFZJ80199208-199608

main87248-60660iFZJ80199608-199801

9011906092

main90119-06092

9011906142

main90119-06142

9017906054

main90179-06054

9040801420

main90408-01420

9048031007

main90480-31007

11 parts on this diagram · 4 diagrams in section
