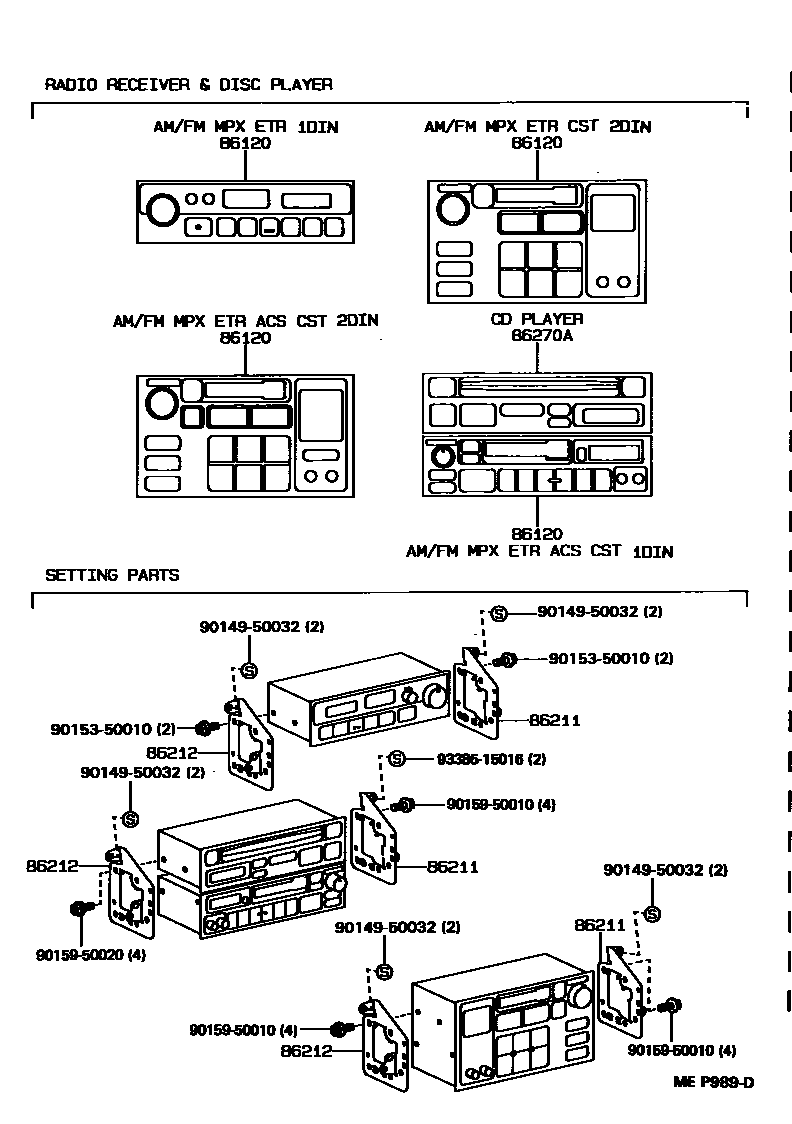

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1

86120RECEIVER ASSY, RADIO

main86120-12730iFJ80199008-199201

AM/FM MPX ETR CST 1DIN (AM=9KHZ STEP)

main86120-17310iFJ80,FZJ80199201-199801

MATSUSHITA,ID=57404,AM/FM MPX ETR 1DIN

main86120-32340iFJ80199001-199008

MATSUSHITA

main86120-32342iFJ80199008-199108

MATSUSHITA,AM/FM MPX ETR 1DIN

main86120-32370iFJ80199001-199008

AM/FM MPX ETR CST 2DIN

main86120-32383iFJ80199008-199108

MATSUSHITA,AM/FM MPX ETR CST 1DIN (AM=10KHZ STEP)

main86120-32390iFJ80199001-199008

FUJITSU TEN,AM/FM MPX ETR 1DIN

main86120-33030iFZJ80199501-199801

MATSUSHITA,ID=51706

main86120-33040iFZJ80199501-199801

MATSUSHITA,ID=56807,AM/FM MPX ETR CST CD 2DIN

sub86120-35170

main86120-33080iFJ80,FZJ80199108-199308

MATSUSHITA

main86120-33090iFZJ80199308-199501

PANASONIC

main86120-33100iFJ80,FZJ80199108-199501

PANASONIC,AM/FM MPX ETR CST CD 2DIN

main86120-60110iFJ80199001-199008

AM/FM MPX ETR CST ACS 1DIN

main86120-60160iFJ80199001-199208

AM/FM MPX ETR CST ACS 2DIN

main86120-60161iFZJ80199208-199308

AM/FM MPX ETR CST ACS 2DIN

86211BRACKET, RADIO, NO.1

main86211-60050iFJ80,FZJ80199001-199801

86212BRACKET, RADIO, NO.2

main86212-60050iFJ80,FZJ80199001-199801

86270ADISC PLAYER ASSY

main86270-89101iFJ80199001-199208

9014950032

main90149-50032

9015350010

main90153-50010

9015950010

main90159-50010

9015950020

main90159-50020

9338515016

main93385-15016

9 parts on this diagram · 4 diagrams in section
