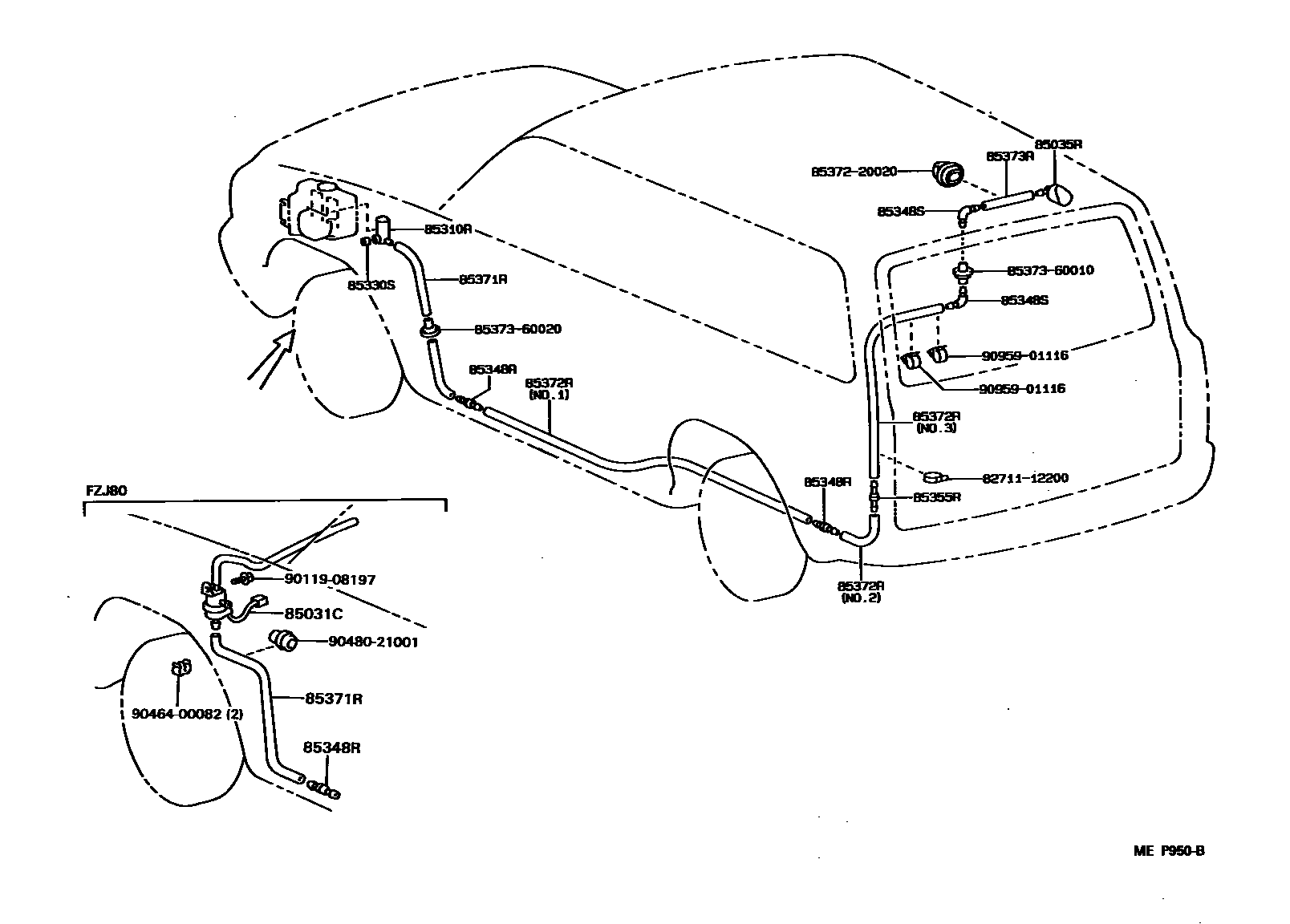

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85321-60050iFZJ80199208-199801

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-60010iFJ80,FZJ80199001-199801

85310RMOTOR ASSY, REAR WASHER

main85340-60040iFJ80199001-199208

85330SBUSH, REAR WASHER JAR

main90099-32089iFJ80199001-199208

85348RJOINT, REAR WASHER HOSE, NO.1

main85334-22470iFJ80,FZJ80199001-199801

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iFJ80,FZJ80199001-199801

85355RVALVE, REAR WASHER HOSE

main85031-30010iFJ80199001-199208

main85031-90A00iFZJ80199208-199801

sub85375-12520

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33029iFJ80199001-199208

L=1000(*H,L=900)

sub90099-33299

main90099-33821iFZJ80199208-199801

L=690

sub90099-33080

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33683iFJ80,FZJ80199001-199801

L=3350,NO.1

main90446-06006iFJ80,FZJ80199001-199801

L=2000,NO.3

main90446-06013iFJ80,FZJ80199001-199801

L=1000,NO.2

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iFJ80,FZJ80199001-199801

L=1000

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537360010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-60010

8537360020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-60020

9011908197

main90119-08197

9046400082

main90464-00082

9048021001

main90480-21001

9095901116

main90959-01116

18 parts on this diagram · 1 diagram in section
