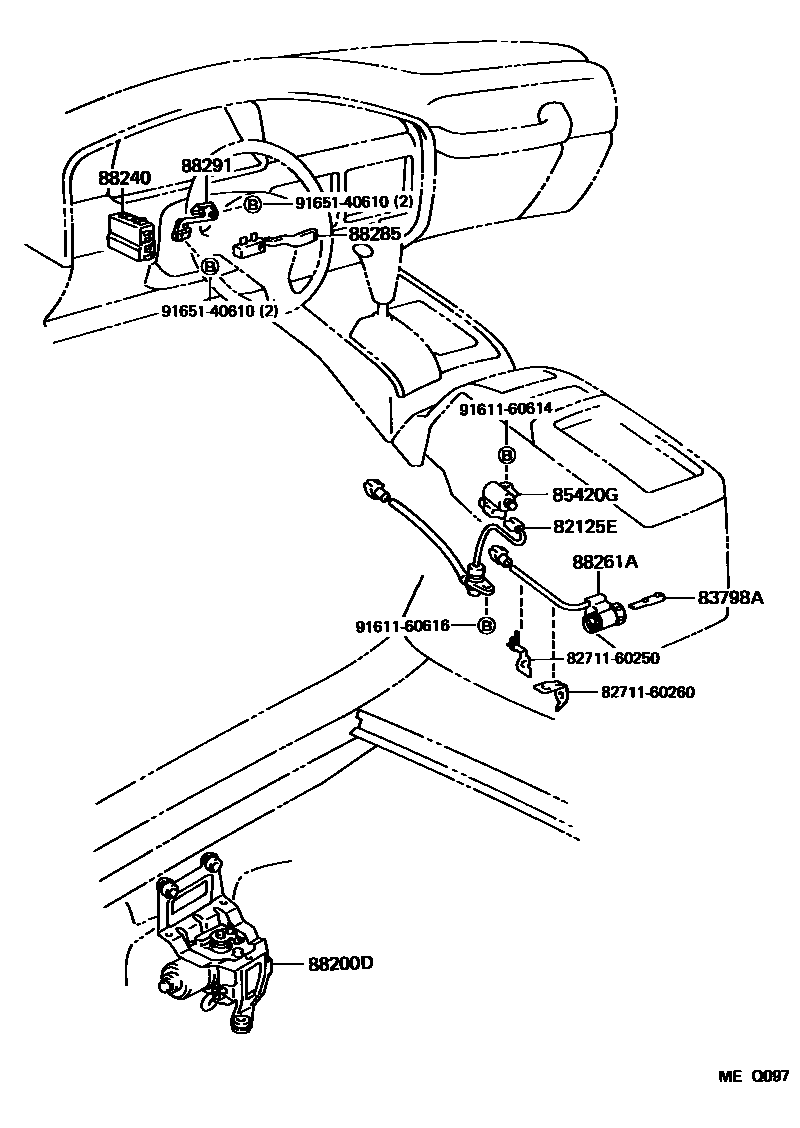

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

82125EWIRE, TRANSMISSION

main82125-60180iFJ80199001-199208

83798AKEY, SPEEDOMETER CABLE ADAPTER

main83798-20020iFJ80199001-199208

85420GSOLENOID ASSY, TRANSMISSION

main85420-60010iFJ80199001-199208

88200DACTUATOR ASSY, CRUISE CONTROL

main88002-60020iFZJ80199208-199501

main88002-60030iFZJ80199501-199801

main88200-60010iFJ80199001-199208

sub88200-60011

88240COMPUTER ASSY, CRUISE CONTROL

main88240-60050iFJ80199001-199208

main88240-60060iFZJ80199208-199608

main88240-60170iFZJ80199608-199801

88261ASENSOR, SPEED CRUISE CONTROL

main88261-60010iFJ80199001-199208

88285SWITCH, CRUISE CONTROL

main84630-33020iFZJ80199501-199602

sub84630-26011

main84630-60010iFZJ80199208-199501

main84630-60030iFZJ80199602-199801

main88285-60020iFJ80199001-199208

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-60020iFZJ80199001-199801

8271160250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60250

8271160260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60260

9161160614

main91611-60614

9161160616

main91611-60616

9165140610

main91651-40610

13 parts on this diagram · 2 diagrams in section
