ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85915ARELAY, MAIN
89412ASENSOR, E.G.R GAS TEMPERATURE
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89661COMPUTER, ENGINE CONTROL
CALIFORNIA SPEC
sub89661-60221
sub89661-60261
sub89661-60262
sub89661-60651
sub89661-60652
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669EBRACKET, ENGINE CONTROL COMPUTER, NO.4
9015950138
main90159-50138
9017906054
main90179-06054
9043012005
main90430-12005
9331915010
main93319-15010

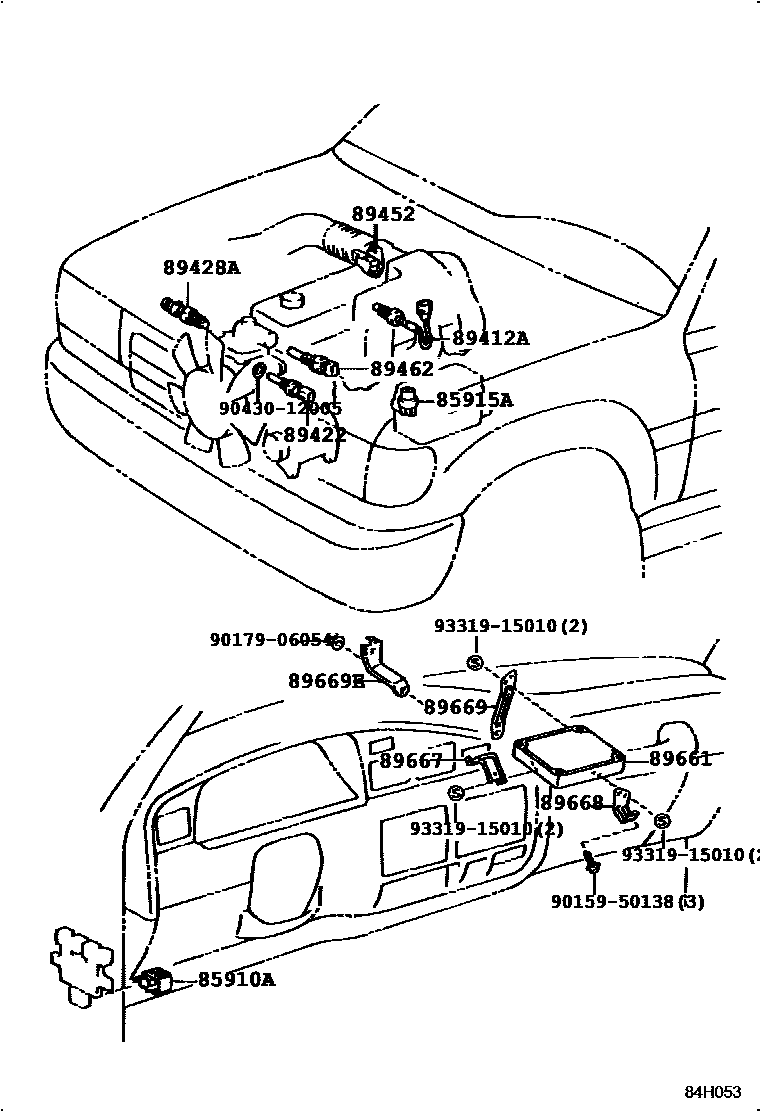

16 parts on this diagram · 3 diagrams in section
