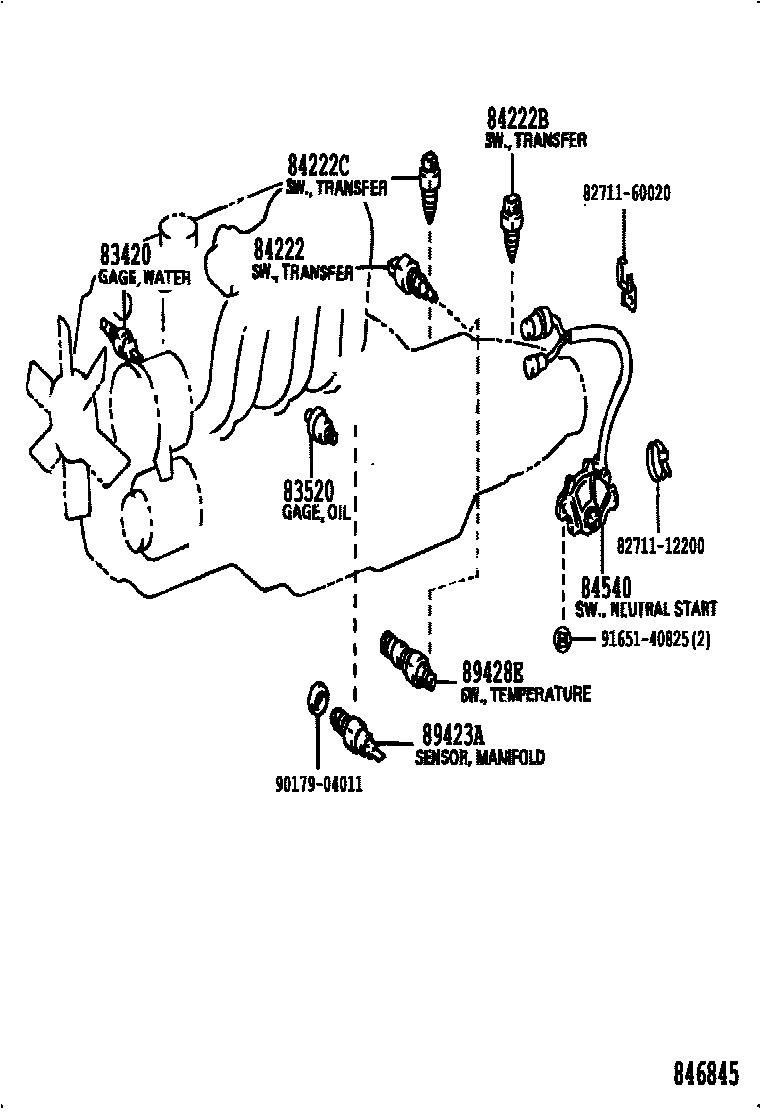

SWITCH & RELAY & COMPUTER

0001 1E/G,T/M,T/F & FR DIFF 0002 1E/G,T/M,T/F & FR DIFF 0003 1E/G ROOM RELAY 0004 1RH COWL RELAY 0005 1LH COWL RELAY 0006 1INSTRUMENT PANEL SW. 0007 1INSTRUMENT PANEL SW. 0008 1IGNITION SW. & COMBINATION SW0009 1IGN.SW & COMBINATION SW(AIR B0010 1DOOR,ROOF,FLOOR SW. 0011 1BACK DOOR SW.

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iFZJ80¥2,340199208-199801

YAZAKI

main83420-16040iFZJ80¥2,340199208-199801

NIPPONDENSO

main83420-20020iFJ80¥3,610199001-199208

main83420-20030iFZJ80¥3,710199208-199506

YAZAKI

sub83420-16040¥2,340

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60010iFJ80¥4,100199001-199112

sub83520-60011¥3,720

main83520-60011iFJ80,FZJ80¥3,720199112-199601

main83520-60040iFZJ80¥3,940199601-199801

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iFJ80,FZJ80¥3,240199001-199801

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080iFZJ80¥4,370199001-199801

sub84222-60081¥2,750

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010iFJ80,FZJ80¥3,240199001-199801

84540SWITCH ASSY, NEUTRAL START

main84540-30270iFZJ80¥10,100199501-199801

main84540-60010iFZJ80¥12,100199001-199501

89423ASENSOR, MANIFOLD TEMPERATURE

main89423-60020iFJ80¥6,700199001-199208

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-26030iFJ80,FZJ80¥5,300199001-199501

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

8271160020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60020¥460

9017904011

main90179-04011¥240

9165140825

main91651-40825¥200

12 parts on this diagram · 11 diagrams in section
