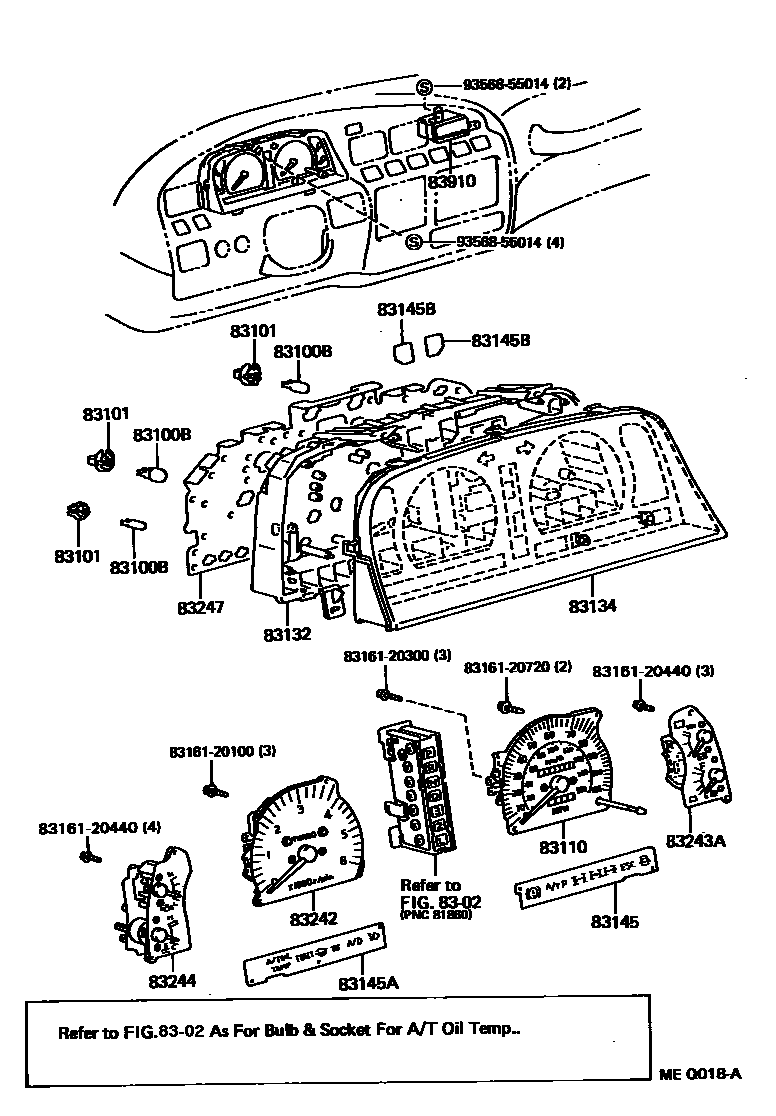

METER

0001 1SPEEDMETER & CLOCK 0002 1SPEEDMETER & CLOCK 0003 1SPEEDMETER CABLE 0004 1

8302

83100BBULB, COMBINATION METER, NO.1

main83119-36060iFZJ80199208-199501

12V 3.0W GREEN CAP

main83119-36080iFZJ80199208-199501

12V 2.0W

main83120-60010iFZJ80199608-199801

14V 2.0W

main83120-60020×11iFZJ80199608-199801

12V 1.4W,W(SOCKET)

main90010-06006×4iFZJ80199608-199801

12V3.4W,W(GREEN CAP)

main90010-06007×3iFZJ80199608-199801

12V 3.4W,W(SOCKET)

main90981-11018×9iFJ80199001-199208

12V 1.2W W/O SOCKET

main90981-11035×4iFJ80199001-199208

14V 3.4W

main99132-12034×3iFZJ80199501-199608

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×9iFJ80199001-199208

1.2W OR 1.4W BULB

main83101-20040×7iFJ80,FZJ80199001-199608

3.4W BULB

83110SPEEDOMETER ASSY

main83110-60380iFJ80199001-199208

main83110-60381iFZJ80199208-199608

main83220-60120iFZJ80199608-199801

83132CASE, COMBINATION METER

main83132-60100iFJ80199001-199208

main83132-60720iFZJ80199208-199501

main83132-60770iFZJ80199501-199801

83134COVER, COMBINATION METER, NO.1

main83134-60100iFJ80,FZJ80199001-199801

83145LENS, METER, NO.1

main83145-60160iFJ80199001-199208

main83145-6A060iFZJ80199501-199608

main83146-60540iFZJ80199208-199501

sub83146-60220

main83832-60421iFZJ80199608-199801

sub83832-60401

83145ALENS, METER, NO.2

main83145-60460iFJ80199001-199208

main83145-6A240iFZJ80199501-199608

main83146-60520iFZJ80199208-199501

main83831-60480iFZJ80199608-199801

83145BLENS, METER, NO.3

main83145-2B460×2iFJ80,FZJ80199001-199801

83242TACHOMETER ASSY, ENGINE

main83242-60320iFJ80199001-199208

main83242-6A020iFZJ80199208-199501

main83242-6A200iFZJ80199501-199801

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-60040iFJ80199001-199208

main83243-60240iFZJ80199208-199801

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-60020iFJ80199001-199208

main83244-60220iFZJ80199208-199501

main83244-60340iFZJ80199501-199801

83247PLATE, METER CIRCUIT

main83149-60760iFZJ80199208-199501

main83247-60260iFJ80199001-199208

main83247-6A200iFZJ80199501-199801

83910CLOCK ASSY

main83910-60050iFJ80,FZJ80199001-199501

main83910-60150iFZJ80199501-199801

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120300CASE, COMBINATION METER MIRROR, NO.1

main83161-20300

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120720CASE, COMBINATION METER MIRROR, NO.1

main83161-20720

9356855014

main93568-55014

19 parts on this diagram · 4 diagrams in section
