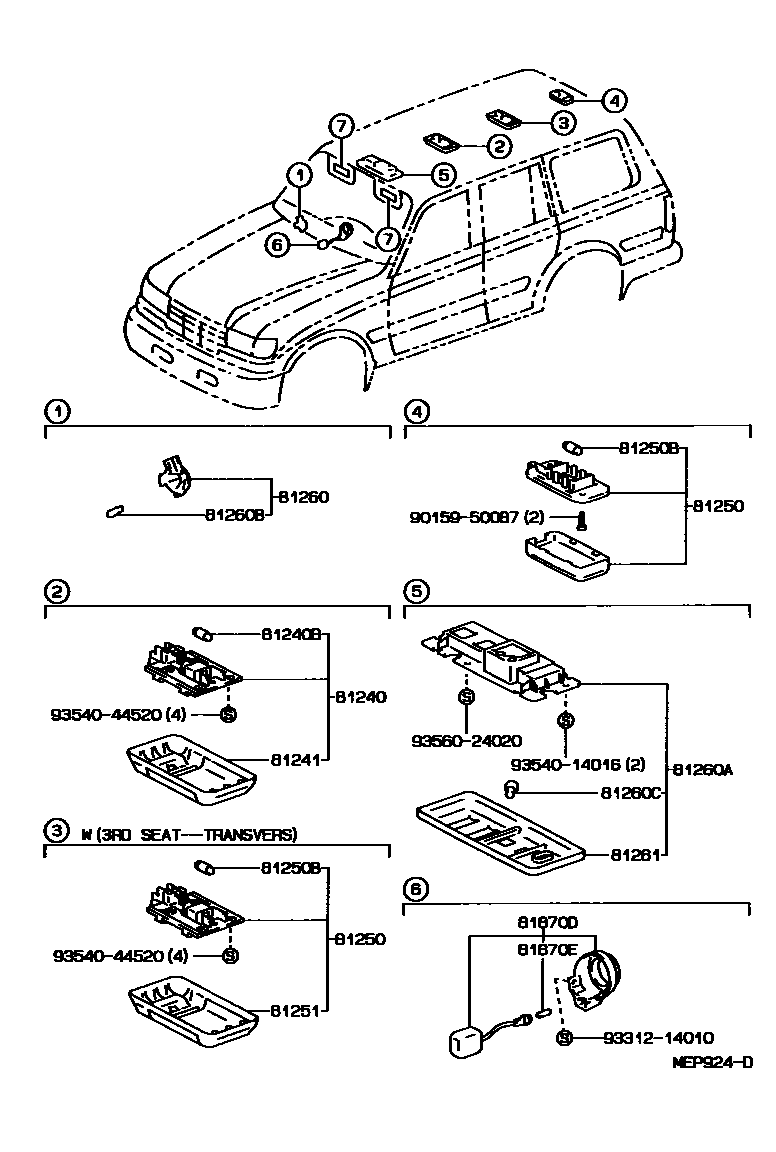

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM4#
LIGHT GRAY,TRIM1#
GRAY,TRIM1#
LIGHT SABLE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 10W
12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM4#
LIGHT GRAY,TRIM1#,4#
W(3RD SEAT---TRANSVERS),GRAY,TRIM1#
LIGHT SABLE,TRIM4#
GRAY,TRIM1#
LIGHT SABLE,TRIM4#
SABLE,TRIM4#
LIGHT GRAY,TRIM1#
81250BBULB, ROOM LAMP, NO.2
12V 10W
12V 10W,W(3RD SEAT---TRANSVERS)
81251LENS, ROOM LAMP, NO.2
W(3RD SEAT---TRANSVERS)
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
LIGHT GRAY
LIGHT SABLE
SABLE,TRIM4#
IVORY,TRIM4#
BLUEISH GRAY,TRIM1#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 10W
81261LENS AND COVER, MAP LAMP
LIGHT GRAY,TRIM1#
LIGHT SABLE,TRIM4#
IVORY,TRIM4#
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
9015950087
main90159-50087
9331214010
main93312-14010
9354014016
main93540-14016
9354044520
main93540-44520
9356024020
main93560-24020
18 parts on this diagram · 2 diagrams in section
