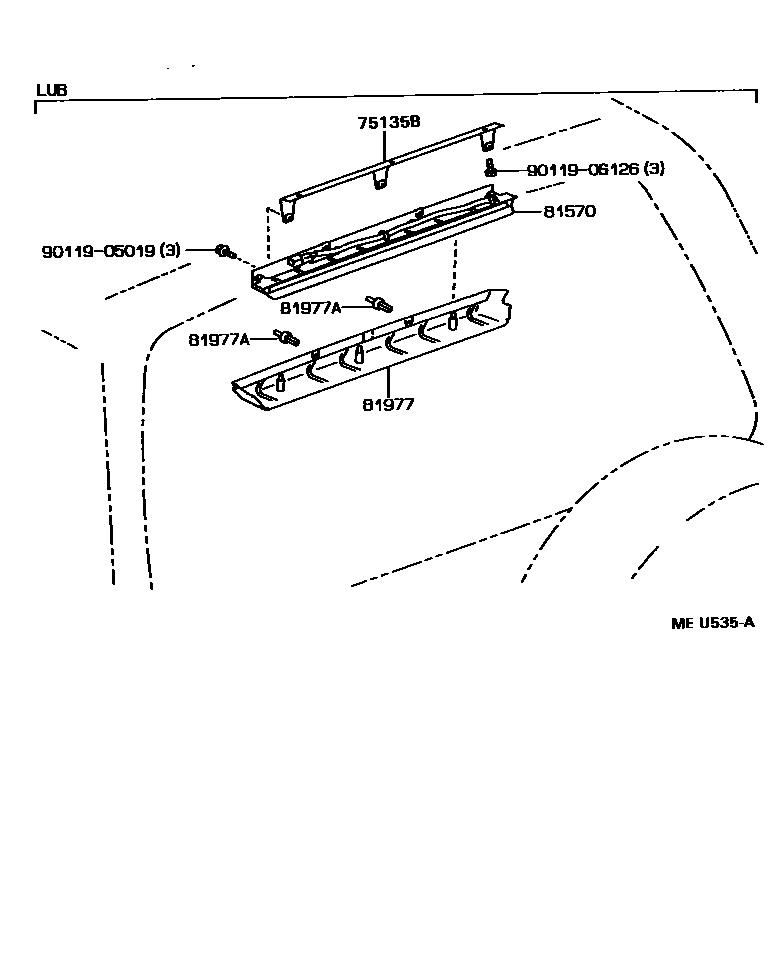

CENTER STOP LAMP

75135BBRACKET, CENTER STOP LAMP

main75135-60030iFZJ80199208-199801

81570LAMP ASSY, CENTER STOP

main81570-60010iFZJ80199208-199501

sub81570-60011

main81570-60011iFZJ80199501-199801

81977COVER, CENTER STOP LAMP

main81977-60010iFZJ80199208-199801

81977ACLIP (FOR CENTER STOP LAMP)

main90467-06141iFZJ80199208-199801

9011905019

main90119-05019

9011906126

main90119-06126

6 parts on this diagram · 1 diagram in section
