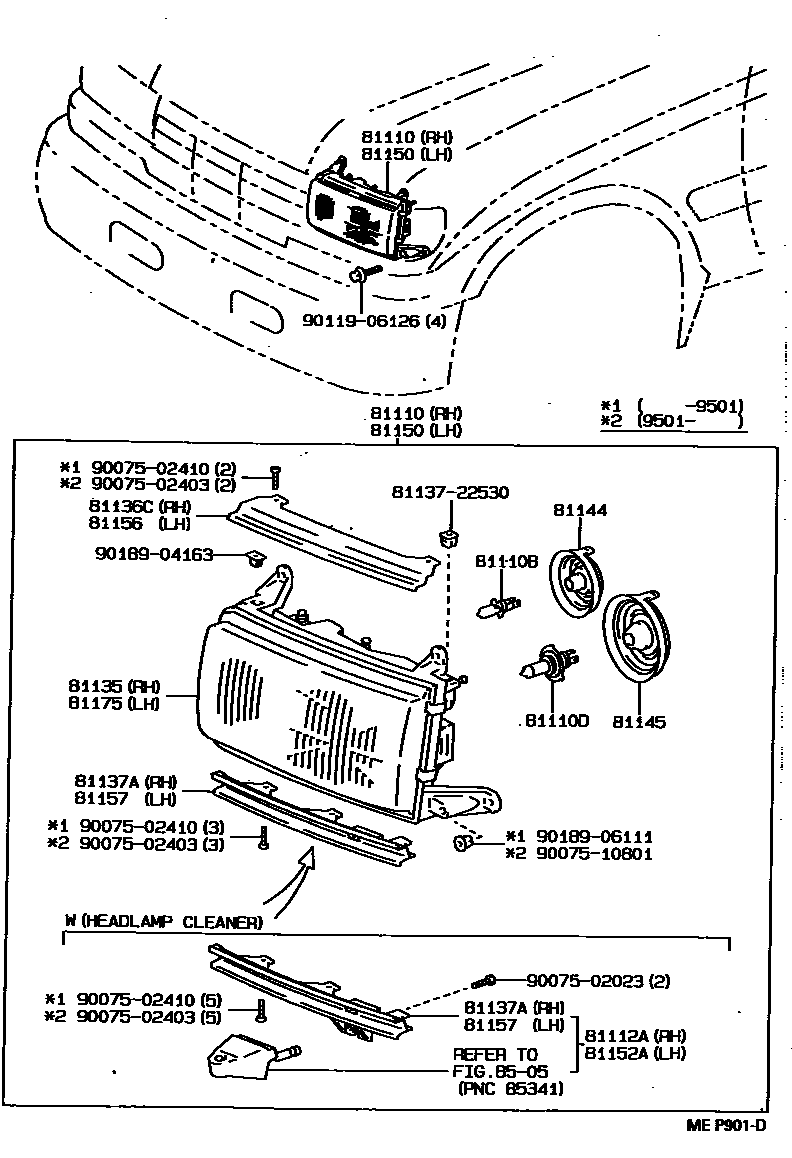

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 51W,HALOGEN
81112ARIM, HEADLAMP, RH
81137ARIM, HEADLAMP, RH
W(HEADLAMP CLEANER)
81144COVER, HEADLAMP, NO.1
81145COVER, HEADLAMP, NO.2
81152ARIM, HEADLAMP, LH
81157RIM, HEADLAMP, LH
W(HEADLAMP CLEANER)
8505
8113722530PROTECTOR, HEADLAMP, NO.2 RH
main81137-22530
9007502023
main90075-02023
9007502403
main90075-02403
9007502410
main90075-02410
9007510801
main90075-10801
9011906126
main90119-06126
9018904163
main90189-04163
9018906111
main90189-06111
23 parts on this diagram · 1 diagram in section
