E
EPC Data

ARMREST & VISOR

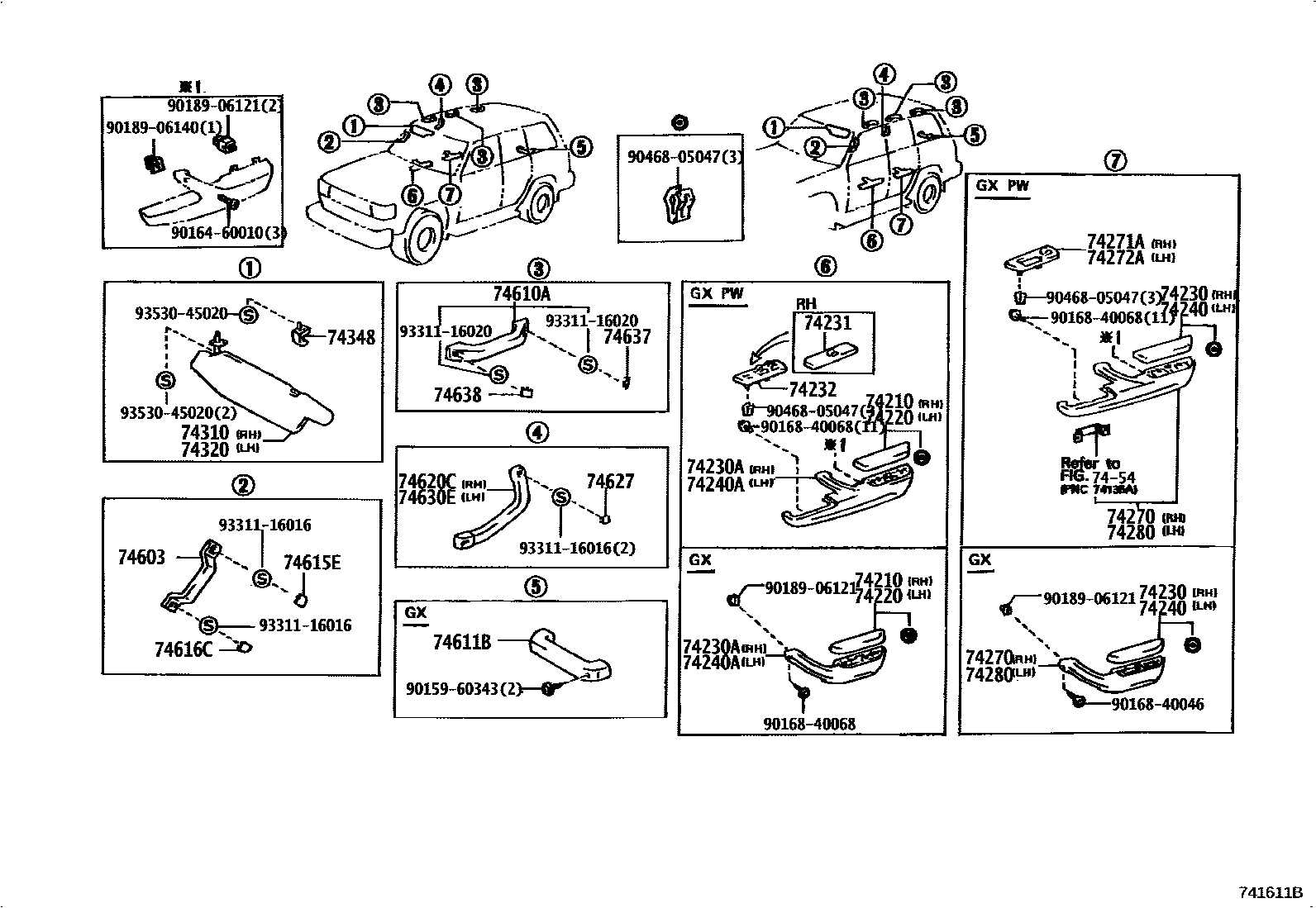

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-60010-03i199001-199208
BLUISH GRAY,TRIM1#
main74210-60010-06i199001-199208
SABLE,TRIM4#
main74210-60020-03i199208-199501
BLUISH GRAY,TRIM1#
main74210-60020-06i199208-199501
SABLE,TRIM4#
main74210-60050-B0i199208-199801
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
main74210-60050-E0i199501-199801
LEATHER PACKAGE,OAK,TRIM4#
main74210-60070-B0i199501-199801
BLUISH GRAY,TRIM1#
main74210-60070-E0i199501-199801
OAK,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74220-60010-03i199001-199208
BLUISH GRAY,TRIM1#
main74220-60010-06i199001-199208
SABLE,TRIM4#
main74220-60020-03i199208-199501
BLUISH GRAY,TRIM1#
main74220-60020-06i199208-199501
SABLE,TRIM4#
main74220-60060-B0i199208-199801
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
main74220-60060-E0i199501-199801
LEATHER PACKAGE,OAK,TRIM4#
main74220-60070-B0i199501-199801
BLUISH GRAY,TRIM1#
main74220-60070-E0i199501-199801
OAK,TRIM4#
74230ARMREST ASSY, REAR, RH
main74210-60010-03i199001-199208
BLUISH GRAY,TRIM1#
main74210-60010-06i199001-199208
SABLE,TRIM4#
main74210-60020-03i199208-199501
BLUISH GRAY,TRIM1#
main74210-60020-06i199208-199501
SABLE,TRIM4#
main74210-60050-B0i199208-199801
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
main74210-60050-E0i199501-199801
LEATHER PACKAGE,OAK,TRIM4#
main74210-60070-B0i199501-199801
BLUISH GRAY,TRIM1#
main74210-60070-E0i199501-199801
OAK,TRIM4#
74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH
main74230-60020-03i199001-199201
BLUISH GRAY,TRIM1#
main74230-60020-06i199001-199201
SABLE,TRIM4#
main74230-60030-03i199201-199801
BLUISH GRAY,TRIM1#
main74230-60030-06i199201-199501
SABLE,TRIM4#
main74230-60030-E0i199501-199801
OAK,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-60020-03i199001-199108
BLUISH GRAY,TRIM1#
sub74231-60080
main74231-60020-06i199001-199108
SABLE,TRIM4#
sub74231-60080
main74231-60060-B0i199108-199501
BLUISH GRAY,TRIM1#
main74231-60060-E0i199108-199501
SABLE,TRIM4#
main74231-60090-B0i199501-199801
BLUISH GRAY,TRIM1#
main74231-60090-E0i199501-199801
OAK,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-60010-03i199001-199501
BLUISH GRAY,TRIM1#
main74232-60010-06i199001-199501
SABLE,TRIM4#
main74232-60070-B0i199501-199801
BLUISH GRAY,TRIM1#
main74232-60070-E0i199501-199801
OAK,TRIM4#
74240ARMREST ASSY, REAR, LH
main74220-60010-03i199001-199208
BLUISH GRAY,TRIM1#
main74220-60010-06i199001-199208
SABLE,TRIM4#
main74220-60020-03i199208-199501
BLUISH GRAY,TRIM1#
main74220-60020-06i199208-199501
SABLE,TRIM4#
main74220-60060-B0i199208-199801
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
main74220-60060-E0i199501-199801
LEATHER PACKAGE,OAK,TRIM4#
main74220-60070-B0i199501-199801
BLUISH GRAY,TRIM1#
main74220-60070-E0i199501-199801
OAK,TRIM4#
74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH
main74240-60010-03i199001-199201
BLUISH GRAY,TRIM1#
main74240-60010-06i199001-199201
SABLE,TRIM4#
main74240-60020-03i199201-199801
BLUISH GRAY,TRIM1#
main74240-60020-06i199201-199501
SABLE,TRIM4#
main74240-60020-E0i199501-199801
OAK,TRIM4#
74270PANEL ASSY, REAR DOOR ARMREST BASE, RH
main74230-60020-03i199001-199201
BLUISH GRAY,TRIM1#
main74230-60020-06i199001-199201
SABLE,TRIM4#
main74270-60010-03i199201-199801
BLUISH GRAY,TRIM1#
main74270-60010-06i199201-199501
SABLE,TRIM4#
main74270-60010-E0i199501-199801
OAK,TRIM4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-60010-03i199001-199501
BLUISH GRAY,TRIM1#
main74271-60010-06i199001-199501
SABLE,TRIM4#
main74271-60030-B0i199501-199801
BLUISH GRAY,TRIM1#
main74271-60030-E0i199501-199801
OAK,TRIM4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-60010-03i199001-199501
BLUISH GRAY,TRIM1#
main74272-60010-06i199001-199501
SABLE,TRIM4#
main74272-60030-B0i199501-199801
BLUISH GRAY,TRIM1#
main74272-60030-E0i199501-199801
OAK,TRIM4#
74280PANEL ASSY, REAR DOOR ARMREST BASE, LH
main74240-60010-03i199001-199201
BLUISH GRAY,TRIM1#
main74240-60010-06i199001-199201
SABLE,TRIM4#
main74280-60010-03i199001-199201
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main74280-60010-06i199201-199501
SABLE,TRIM4#
main74280-60010-E0i199501-199801
OAK,TRIM4#
74310VISOR ASSY, RH
main74310-60190-03i199001-199108
LIGHT GRAY,TRIM1#
sub74310-60070
main74310-60190-06i199001-199108
LIGHT SABLE,TRIM4#
sub74310-60070
main74310-60300-B0i199108-199305
LIGHT GRAY,TRIM1#
main74310-60300-B1i199305-199308
LIGHT GRAY,TRIM1#
main74310-60300-E0i199108-199305
LIGHT SABLE,TRIM4#
main74310-60300-E1i199305-199308
LIGHT SABLE,TRIM4#
main74310-60301-B1i199308-199501
LIGHT GRAY,TRIM1#
main74310-60301-E1i199308-199501
LIGHT SABLE,TRIM4#
main74310-60440-A1i199601-199608
IVORY,TRIM4#
main74310-60440-B0i199501-199601
LIGHT GRAY,TRIM1#,4#
main74310-60441-A1i199608-199702
IVORY,TRIM4#
main74310-60441-B0i199608-199702
LIGHT GRAY,LIGHT GRAY,TRIM1#
main74310-60700-A0i199702-199801
IVORY,TRIM4#
main74310-60700-B0i199702-199801
LIGHT GRAY,TRIM1#
74320VISOR ASSY, LH
main74320-60170-03i199001-199010
BLUISH GRAY,TRIM1#
main74320-60170-06i199001-199010
SABLE,TRIM4#
main74320-60171-03i199010-199108
LIGHT GRAY,TRIM1#
main74320-60171-06i199010-199108
LIGHT SABLE,TRIM4#
main74320-60172-B0i199108-199305
LIGHT GRAY,TRIM1#
main74320-60172-B1i199305-199308
LIGHT GRAY,TRIM1#
main74320-60172-E0i199108-199305
LIGHT SABLE,TRIM4#
main74320-60172-E1i199305-199308
LIGHT SABLE,TRIM4#
main74320-60173-B1i199308-199501
LIGHT GRAY,TRIM1#
main74320-60173-E1i199308-199501
LIGHT SABLE,TRIM4#
main74320-60400-A1i199601-199608
IVORY,TRIM4#
main74320-60400-B0i199501-199601
LIGHT GRAY,TRIM1#,4#
main74320-60401-A1i199608-199702
LIGHTGRAY,TRIM4#
main74320-60401-B0i199608-199702
IVORY,TRIM1#
main74320-60650-A0i199702-199801
IVORY,TRIM4#
main74320-60650-B0i199702-199801
LIGHT GRAY,TRIM1#
74348HOLDER, VISOR
main74348-60010-03×2i199001-199501
LIGHT GRAY,TRIM1#
sub74348-12020
main74348-60010-06×2i199001-199501
LIGHT SABLE,TRIM4#
sub74348-12020
main74348-91601-13×2i199501-199601
MEDIUM GRAY,TRIM1#,4#
main74348-91601-A0×2i199601-199801
IVORY,TRIM4#
7454
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-60030-A0×2i199608-199801
IVORY,TRIM4#
sub74620-60030
sub74615-60020
sub74610-60031
sub74615-60011
sub74616-60011
main74610-60030-B0×2i199612-199801
LIGHT GRAY,TRIM1#,4#
sub74620-60030
sub74615-60020
sub74610-60031
sub74615-60011
sub74616-60011
main74610-60040-A0×2i199601-199608
IVORY,TRIM4#
main74610-60040-B0×2i199501-199601
LIGHT GRAY,TRIM1#,4#
main74610-90K00-03×2i199001-199501
LIGHT GRAY,TRIM1#
main74610-90K00-06×2i199001-199501
LIGHT SABLE,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
main74610-60020-03×3i199001-199501
W(3RD SEAT),LIGHT GRAY,TRIM1#
main74610-60020-06×5i199001-199501
W(3RD SEAT),LIGHT SABLE,TRIM4#
main74610-60050-A0×5i199601-199801
W(3RD SEAT),IVORY,TRIM4#
main74610-60050-B0×3i199501-199601
LIGHT GRAY,TRIM1#,4#
74611BGRIP, ASSIST
main74611-91701-03i199001-199801
BLUISH GRAY,TRIM1#
main74611-91701-16i199001-199501
SABLE,TRIM4#
main74611-91701-E1i199501-199801
OAK,TRIM4#
74615EPLUG, FRONT ASSIST GRIP, NO.1 RH
main74615-60010-03×2i199608-199801
LIGHT GRAY,TRIM1#
main74615-60010-A1×2i199608-199801
IVORY,TRIM4#
main74617-16010-46×2i199001-199501
SABLE,TRIM4#
main74617-16010-47×2i199001-199501
LIGHT GRAY,TRIM1#
main74617-16010-A0×2i199601-199608
IVORY,TRIM4#
74616CPLUG, FRONT ASSIST GRIP, NO.1 LH
main74616-60010-03×2i199608-199801
LIGHT GRAY,TRIM1#
main74616-60010-A1×2i199608-199801
IVORY,TRIM4#
main74617-16010-46×2i199001-199501
SABLE,TRIM4#
main74617-16010-47×2i199501-199601
LIGHT GRAY,TRIM1#,4#
main74617-16010-A0×2i199601-199608
IVORY,TRIM4#
74620CGRIP ASSY, ASSIST, REAR RH
main74620-60010-03i199001-199501
LIGHT GRAY,TRIM1#
main74620-60010-06i199001-199501
LIGHT SABLE,TRIM4#
main74620-60020-03i199601-199801
LIGHT GRAY,TRIM1#
main74620-60020-A0i199601-199801
IVORY,TRIM4#
74627PLUG, REAR ASSIST GRIP
main74627-60010-03×4i199001-199501
LIGHT GRAY,TRIM1#
main74627-60010-06×4i199001-199501
LIGHT SABLE,TRIM4#
main74627-60010-A0×2i199601-199801
IVORY,TRIM4#
74630EGRIP ASSY, ASSIST, REAR LH
main74630-60010-03i199001-199501
LIGHT GRAY,TRIM1#
main74630-60010-06i199001-199501
LIGHT SABLE,TRIM4#
main74630-60020-03i199501-199601
LIGHT GRAY,TRIM1#,4#
main74630-60020-A0i199601-199801
IVORY,TRIM4#
74637PLUG, ASSIST GRIP, NO.2 RH
main74637-60010-03×5i199601-199801
W(3RD SEAT),LIGHT GRAY,TRIM1#
main74637-60010-06×5i199001-199501
W(3RD SEAT),LIGHT SABLE,TRIM4#
main74637-60010-A0×5i199601-199801
W(3RD SEAT),IVORY,TRIM4#
74638PLUG, ASSIST GRIP, NO.2 LH
main74638-60010-03×3i199601-199801
W(3RD SEAT),LIGHT GRAY,TRIM1#
main74638-60010-06×3i199001-199501
W(3RD SEAT),LIGHT SABLE,TRIM4#
main74638-60010-A0×3i199601-199801
W(3RD SEAT),IVORY,TRIM4#
9015960343
main90159-60343
9016460010
main90164-60010
9016840046
main90168-40046
9016840068
main90168-40068
9018906121
main90189-06121
9018906140
main90189-06140
9046805047
main90468-05047
9331116016
main93311-16016
9331116020
main93311-16020
9353045020
main93530-45020

36 parts on this diagram · 1 diagram in section
